5990210 Series
Manufacturer: DIALIGHT
Beta
⌘K

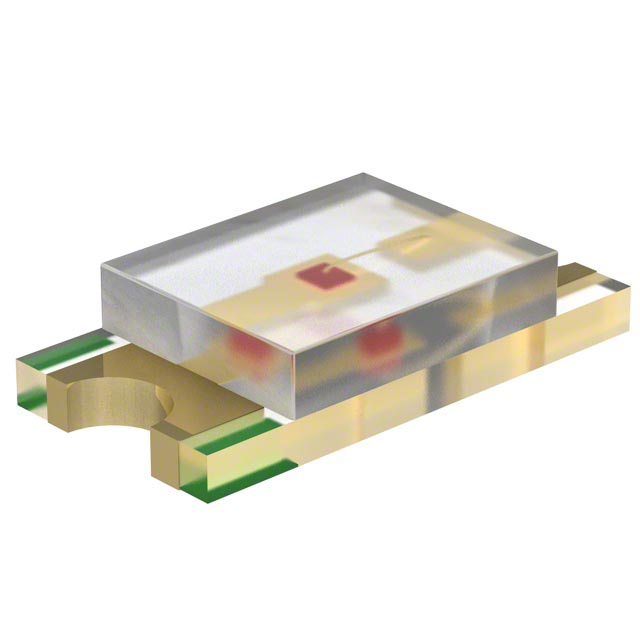

LED UNI-COLOR RED 2-PIN CHIP 1206(3216METRIC) T/R
| Part | Color | Configuration | Supplier Device Package | Height (Max) [Max] [z] | Lens Style | Lens Size [y] | Lens Size [x] | Mounting Type | Voltage - Forward (Vf) (Typ) | Current - Test | Package / Case | Wavelength - Dominant | Viewing Angle | Millicandela Rating | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | Red | Standard | 1206 | 0.8 mm | Rectangle with Flat Top | 1.6 mm | 2 mm | Surface Mount | 2.1 V | 20 mA | 1206 (3216 Metric) | 633 nm | 140 ° | 29 mcd | 1.6 mm | 3.2 mm |
