78602 Series

Catalog

SMD TRANSFORMER 1:1:1 1000UH 15VUS ROHS COMPLIANT: YES

Part	Transformer Type	Inductance	ET (Volt-Time)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Weight	Weight

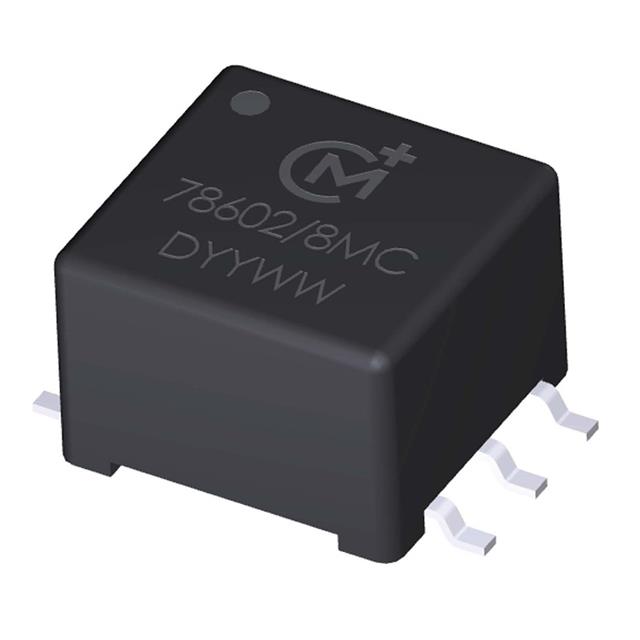

Murata Electronics 78602/8MC	General Purpose	1 mH	15 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/4MC-R	General Purpose	67 µH	4 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/3JC	General Purpose	180 µH	6 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1

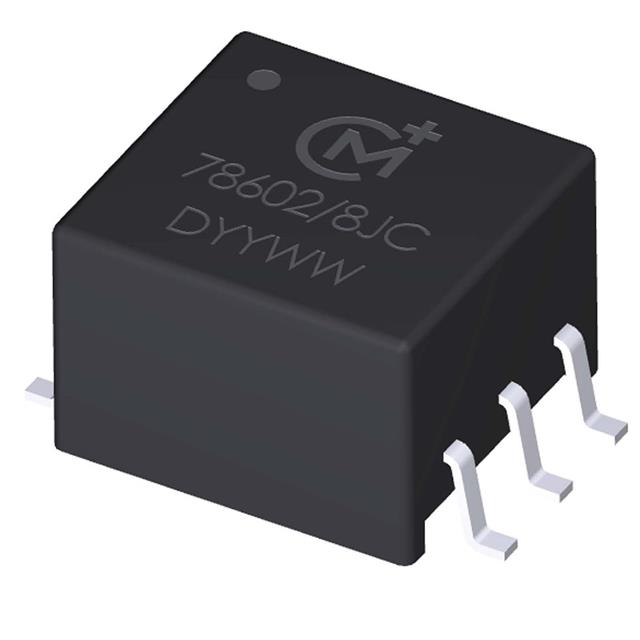

Murata Electronics 78602/1JC	General Purpose	1.89 mH	20 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/3JC-R	General Purpose	180 µH	6 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/2C	General Purpose	500 µH	10 VµS	Through Hole	0.375 in	9.52 mm	0.354 in	9 mm	70 °C	6.35 mm	0.25 in	1	1	1	1.14 g	0.04 oz
Murata Electronics 78602/8C	General Purpose	1 mH	15 VµS	Through Hole	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/9MC-R	General Purpose	10 mH	56 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/16MC	General Purpose	4 mH	28 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
Murata Electronics 78602/1JC-R	General Purpose	1.89 mH	20 VµS	Surface Mount	0.354 in	9 mm	0.375 in	9.52 mm	70 °C	6.35 mm	0.25 in	1	1	1
