P2011B Series

Catalog

SWITCH TOGGLE SPST 10A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Type	Circuit	Mounting Type	Switch Function	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Illumination	Actuator Length [x]	Termination Style

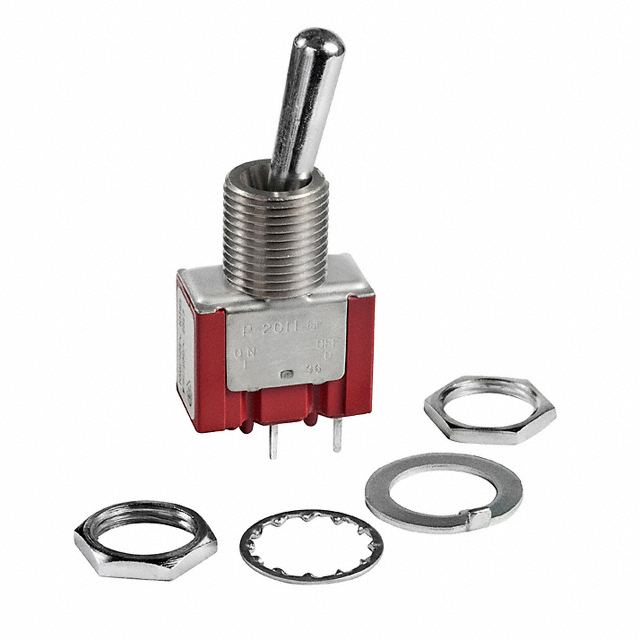

NKK Switches P2011BP	Brass Chrome Plated	25000 Steps	125 V	12.5 mm	Standard Round	SPST	Panel Mount	On-Off	M12 x 1	85 °C	-10 °C	10 A	Non-Illuminated	17.5 mm	PC Pin
NKK Switches P2011BZ	Brass Chrome Plated	25000 Steps	125 V	12.5 mm	Standard Round	SPST	Panel Mount	On-Off	M12 x 1	85 °C	-10 °C	10 A	Non-Illuminated	17.5 mm	Quick Connect
NKK Switches P2011BP/U	Brass Chrome Plated	25000 Steps	125 V	12.5 mm	Standard Round	SPST	Panel Mount	On-Off	M12 x 1	85 °C	-10 °C	10 A	Non-Illuminated	17.5 mm	PC Pin
