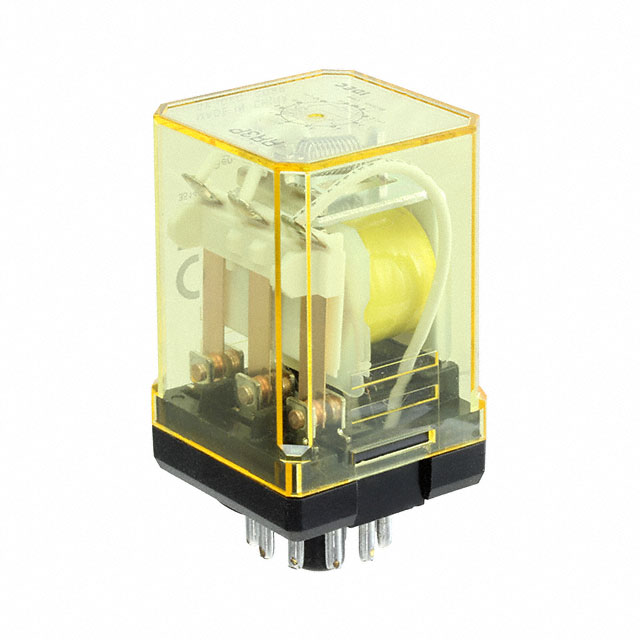

RR3PA-U Series
Manufacturer: IDEC
Beta
⌘K
RELAY PLUG-IN 3PDT 10A 240VAC ROHS COMPLIANT: YES
| Part | Coil Resistance | Features | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Must Operate Voltage | Termination Style | Termination Style | Approval Agency | Contact Rating (Current) | Contact Form | Release Time | Operate Time | Contact Material | Mounting Type | Relay Type | Load - Max Switching | Switching Voltage | Coil Voltage | Must Release Voltage | Coil Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 8.33 kOhms | Lighted Indicator Test Button | 10.5 mA | -25 °C | 40 °C | 192 VAC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 240 VAC/DC | 72 VAC/DC | Non Latching | |
IDEC | 8.33 kOhms | Test Button | 10.5 mA | -25 °C | 40 °C | 192 VAC | Plug In Quick Connect | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 240 VAC/DC | 72 VAC/DC | Non Latching | 0.187 in 4.7 mm | |
IDEC | 1.6 kOhms | Lighted Indicator Test Button | 0.03 A | -25 °C | 40 °C | 38.4 VDC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 48 VDC | 4.8 VDC | Non Latching | |
IDEC | 20.909 kOhms | 11 mA | -25 °C | 40 °C | 184 VAC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 230 VAC | 69 VAC | Non Latching | ||
IDEC | 79 Ohms | Lighted Indicator Test Button | 105 mA | -25 °C | 40 °C | 19.2 VAC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 24 VAC | 7.2 VAC | Non Latching | |
 IDEC | 1.6 kOhms | 0.03 A | -25 °C | 40 °C | 38.4 VDC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 48 VDC | 4.8 VDC | Non Latching | ||
 IDEC | 100 Ohms | 0.12 A | -25 °C | 40 °C | 9.6 VDC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 12 VDC | 1.2 VDC | Non Latching | ||
IDEC | 2.1 kOhms | Lighted Indicator | 20.5 mA | -25 °C | 40 °C | 96 VAC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 120 VAC | 36 VAC | Non Latching | |
IDEC | 7.36 kOhms | 11.5 mA | -25 °C | 40 °C | 176 VAC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 220 VAC/DC | 66 VAC | Non Latching | ||
IDEC | 100 Ohms | Lighted Indicator Test Button | 0.12 A | -25 °C | 40 °C | 9.6 VDC | 11 Pin | Plug In | CE CSA cURus TUV | 10 A | 3PDT (3 Form C) | 25 ms | 25 ms | Silver (Ag) | Socketable | General Purpose | 300 W 2400 VA | 30 VDC 240 VAC | 12 VDC | 1.2 VDC | Non Latching |
