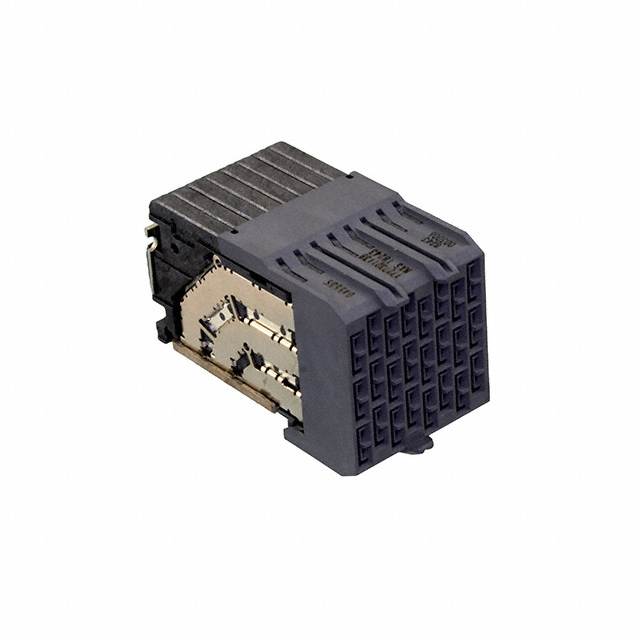

172730 Series
Manufacturer: Molex
Beta
⌘K
IMPEL PLUS 90 OHM 3-PAIR RIGHT-ANGLE DAUGHTERCARD, 1.90MM PITCH, UNGUIDED, 10 COLUMNS, 60 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.31MM
| Part | Material Flammability Rating | Number of Positions | Number of Rows | Contact Finish | Termination | Connector Style | Mounting Type | Contact Layout, Typical | Connector Type | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Columns | Features | Number of Positions Loaded | Connector Usage | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | 60 | 6 | Gold | Press-Fit | Impel™ | Right Angle Through Hole | 30 Differential Pairs | Receptacle Female Sockets | Black | 30 Áin | 0.76 Ám | 10 | Shielded | All | Daughtercard | 1.9 mm | 0.075 in | |||||

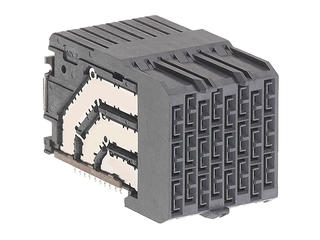

 Molex | UL94 V-0 | 48 | 6 | Gold | Press-Fit | Impel™ | Right Angle Through Hole | Blade Sockets Female Sockets Receptacle | Black | 30 Áin | 0.76 Ám | 8 | Shielded | All | Daughtercard | 1.9 mm | 0.075 in | -55 C | 85 °C | 0.75 A | 150 VAC | 24 Differential Pairs |
