172034 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

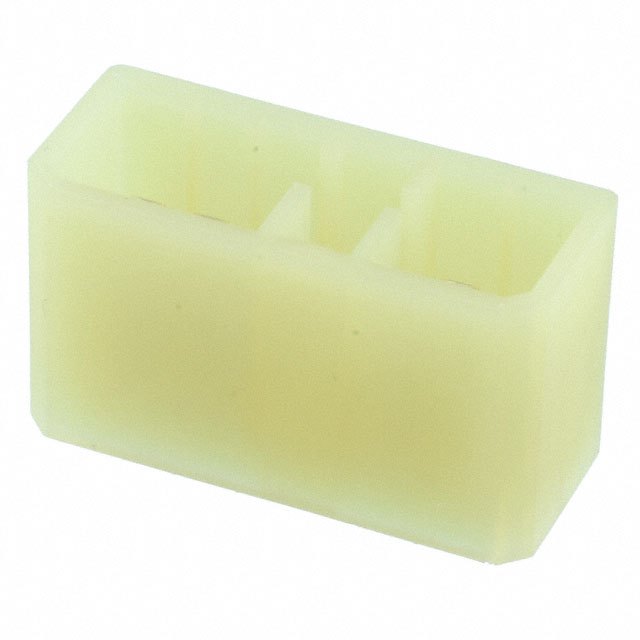

CONN HEADER VERT 11POS
| Part | Insulation Material | Mounting Type | Contact Length - Post | Contact Length - Post | Applications | Number of Positions | Shrouding | Number of Rows | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Color | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Contact Shape | Contact Material | Fastening Type | Termination | Contact Type | Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polyamide (PA66) Nylon 6/6 | Through Hole | 0.157 in | 4 mm | General Purpose | 11 | Shrouded - 4 Wall | 2 | All | 0.866 in | 22 mm | Natural | Header | 0.236 in | 6 mm | Tin | Rectangular | Brass | Locking Ramp | Solder | Tab | Board to Cable/Wire | -30 ░C | 105 ░C |
