19292 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, REVERSED PLUG, 35 CONTACTS
| Part | Housing Color | Connector Type | Material Flammability Rating | Mounting Type | Contact Shape | Number of Positions | Note | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material [custom] | Insert Material [custom] | Orientation | Contact Type | Features | Type | Fastening Type | Shielding | Mounting Feature | For Use With/Related Products | Includes | Cable Exit | Cable Opening | Cable Opening | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shell Size - Insert | Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

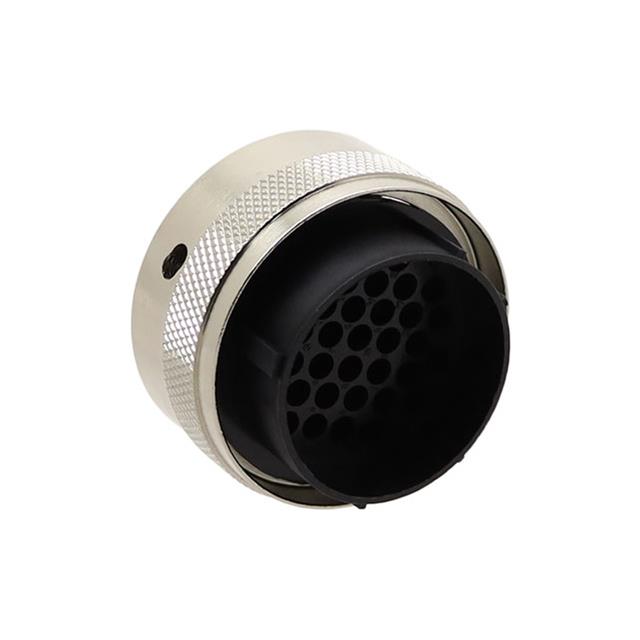

 ITT Cannon, LLC | Black Silver | Plug Housing | UL94 V-0 | Free Hanging (In-Line) | Circular | 35 | Contacts Not Included | 22 | 35 | -55 C | 105 ░C | Nylon | Polyamide (PA) | Keyed | Crimp and Solder Cup | Coupling Nut | For Female Sockets | Detent Lock | Unshielded | |||||||||||

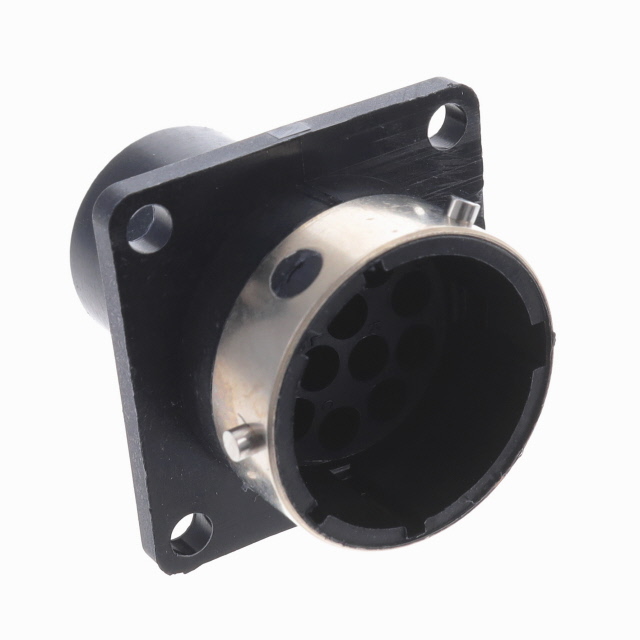

 ITT Cannon, LLC | Black | Receptacle Housing | UL94 V-0 | Panel Mount | Circular | 12 | Contacts Not Included | 14 | 12 | -55 C | 105 ░C | Nylon | Polyamide (PA) | Keyed | Crimp Solder Solder Cup | For Male Pins | Detent Lock | Unshielded | Flange | |||||||||||

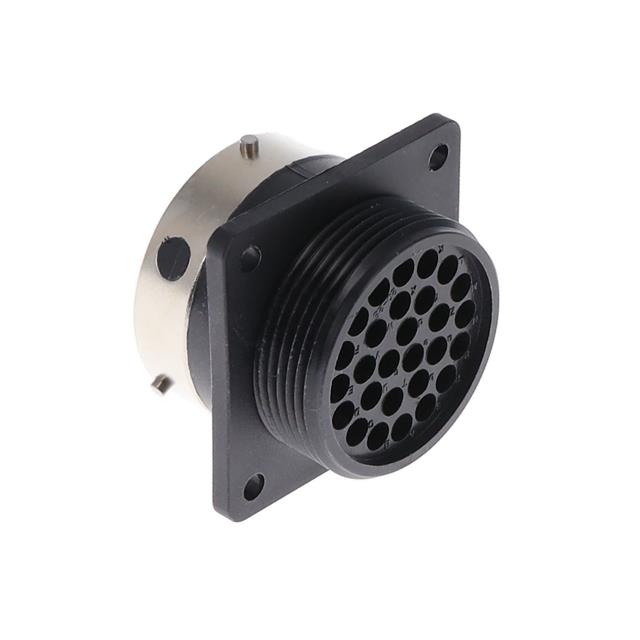

 ITT Cannon, LLC | Black | Receptacle Housing | UL94 V-0 | Panel Mount | Circular | 28 | Contacts Not Included | 20 | 28 | -55 C | 105 ░C | Nylon | Polyamide (PA) | Keyed | Crimp Solder Solder Cup | For Male Pins | Detent Lock | Unshielded | Flange | |||||||||||

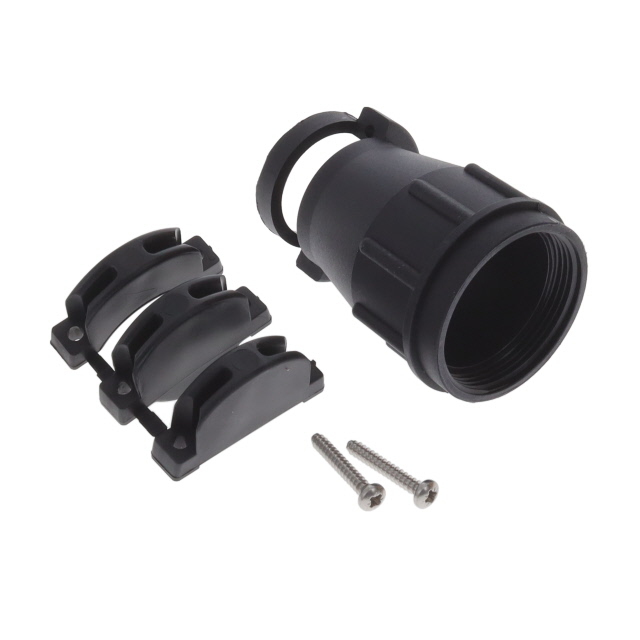

 ITT Cannon, LLC | UL94 V-0 | Clamp Screws | Backshell Cable Clamp | Unshielded | Discrete Wires or Jacketed Cables | 2 Screws 3 Clamp Bars 6 pcs - 1 Backshell | 180 ° | 22.99 mm | 0.905 " | 1.559 in | 39.6 mm | 22 | Polyamide (PA) Nylon | Black | ||||||||||||||||

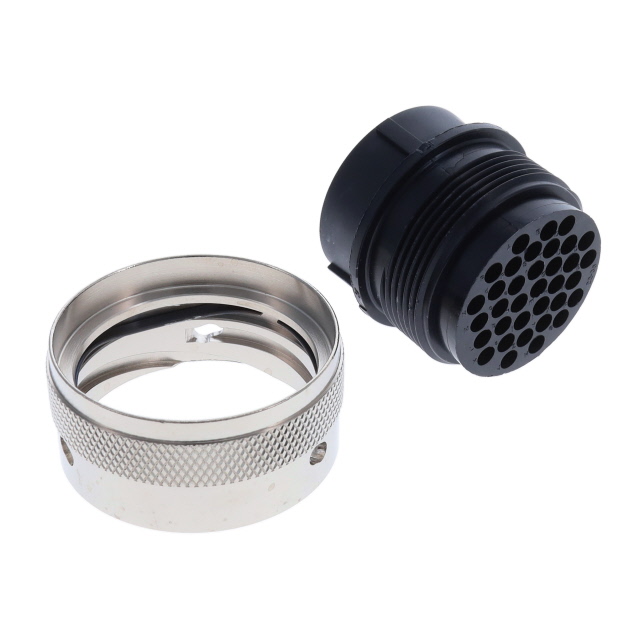

 ITT Cannon, LLC | Black Silver | Plug Housing | UL94 V-0 | Free Hanging (In-Line) | Circular | 35 | Contacts Not Included | 22 | 35 | -55 C | 105 ░C | Nylon | Polyamide (PA) | Keyed | Crimp and Solder Cup | Coupling Nut | For Male Pins | Detent Lock | Unshielded | |||||||||||
 ITT Cannon, LLC | Black | Receptacle Housing | UL94 V-0 | Panel Mount | Circular | 28 | Contacts Not Included | 20 | 28 | -55 C | 105 ░C | Nylon | Polyamide (PA) | Keyed | Crimp Solder Solder Cup | For Female Sockets | Detent Lock | Unshielded | Flange |
