662-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

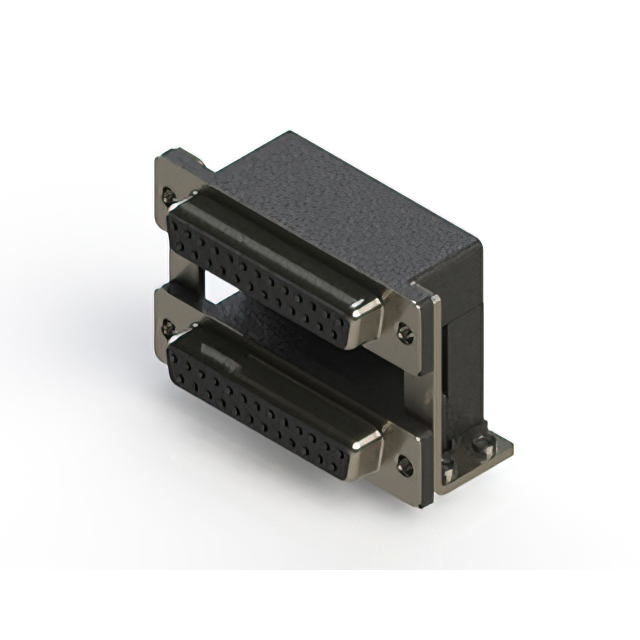

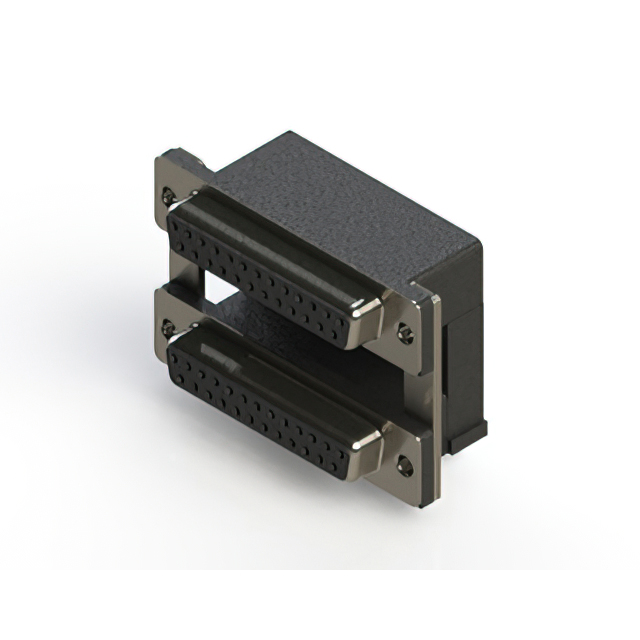

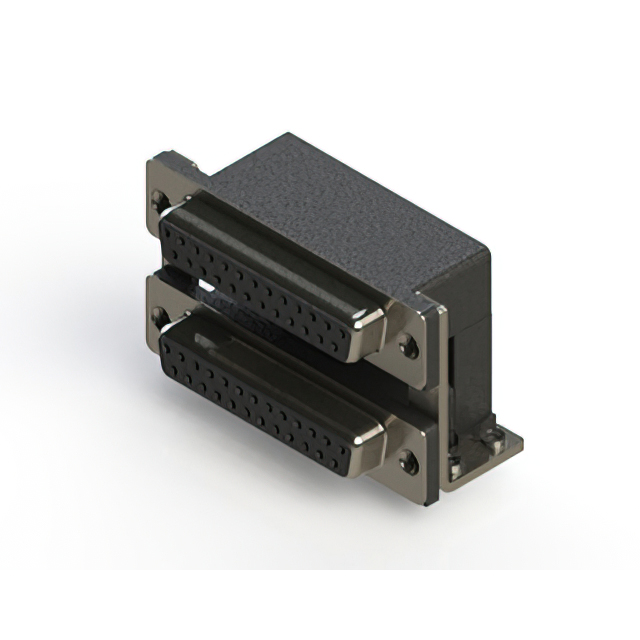

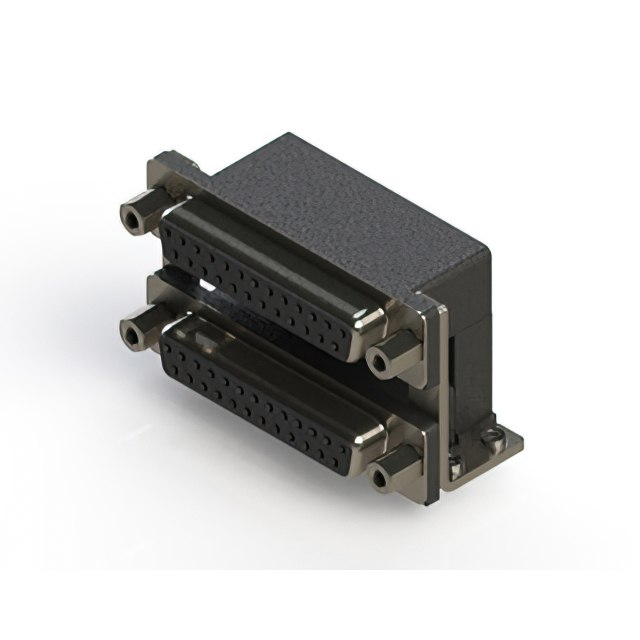

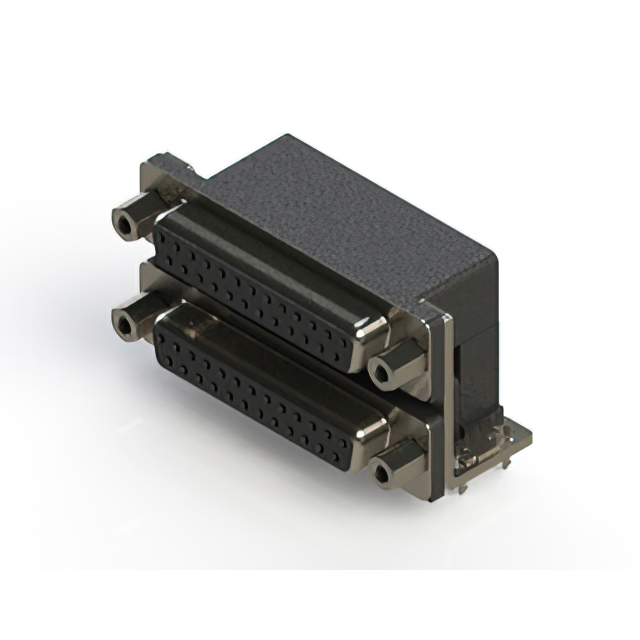

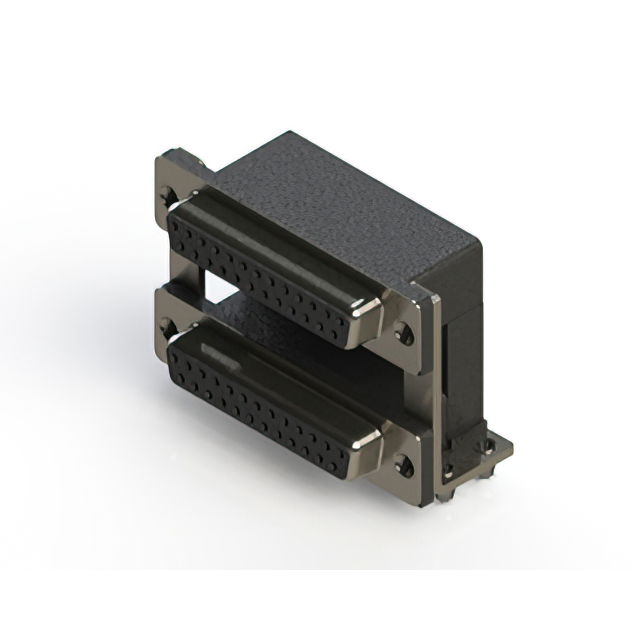

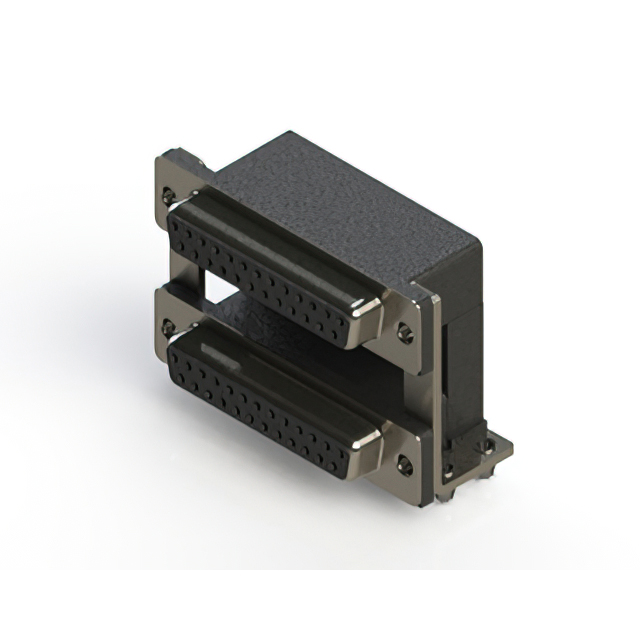

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Mounting Type | Number of Rows [custom] | Material Flammability Rating | Flange Feature | Shell Size, Connector Layout | Connector Type | Backset Spacing | Backset Spacing | Connector Style | Termination | Number of Positions | Shell Material, Finish | Contact Finish | Features | Contact Type | Current Rating (Amps) | Contact Finish Thickness | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | 4-40 Mating Side Female Screwlock | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Mounting Brackets Shielded | Signal | 3 A | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | Housing/Shell | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Board Lock Mounting Brackets Shielded | Signal | 3 A | Flash | 4-40 | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | Housing/Shell (M3) | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Mounting Brackets Shielded | Signal | 3 A | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | Housing/Shell | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Board Lock Mounting Brackets Shielded | Signal | 3 A | 4-40 | 30 Áin | 0.76 Ám | |
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | 4-40 Mating Side Female Screwlock | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Board Lock Mounting Brackets Shielded | Signal | 3 A | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | 4-40 Mating Side Female Screwlock | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Mounting Brackets Shielded | Signal | 3 A | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | Housing/Shell (Unthreaded) | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Board Lock Mounting Brackets Shielded | Signal | 3 A | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | Housing/Shell (Unthreaded) | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Mounting Brackets Shielded | Signal | 3 A | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | Housing/Shell (Unthreaded) | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Board Lock Mounting Brackets Shielded | Signal | 3 A | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Black | Right Angle Through Hole | 2 | UL94 V-0 | 4-40 Mating Side Female Screwlock | 3 (DB B) | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | Solder | 25 | Nickel Plated Steel | Gold | Board Lock Mounting Brackets Shielded | Signal | 3 A | 15 µin | 0.38 µm |
