DNFR14 Series

Catalog

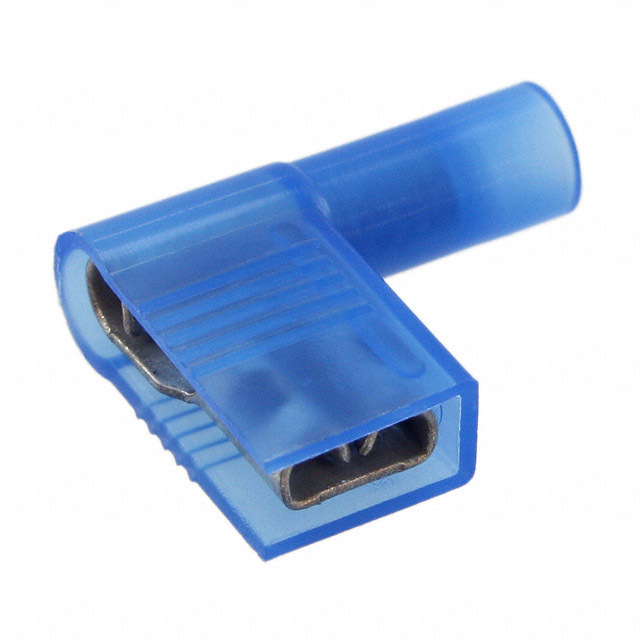

QUICK DISCONNECT TERMINAL, RIGHT ANGLE, DNFR-B SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Part	Insulation Diameter	Insulation Diameter	Tab Thickness	Tab Thickness	Mounting Type	Contact Finish	Tab Width [x]	Tab Width [x]	Color	Insulation	Contact Material	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Terminal Type	Tab Width	Tab Width
Panduit Corp DNFR14-250B-M	0.155 in	3.94 mm	0.81 mm	0.032 in	Free Hanging (In-Line) Right Angle	Tin	6.35 mm	0.25 in	Blue	Fully Insulated	Brass	Female	14 AWG	16 AWG	Crimp	Angled - 90° Flag
Panduit Corp DNFR14-250B-L	0.155 in	3.94 mm	0.81 mm	0.032 in	Free Hanging (In-Line) Right Angle	Tin	6.35 mm	0.25 in	Blue	Fully Insulated	Brass	Female	14 AWG	16 AWG	Crimp	Angled - 90° Flag
Panduit Corp DNFR14-206B-M	0.155 in	3.94 mm	0.51 mm	0.02 in	Free Hanging (In-Line) Right Angle	Tin			Blue	Fully Insulated	Brass	Female	14 AWG	16 AWG	Crimp	Angled - 90° Flag	0.187 " 0.205 in	4.75 mm 5.21 mm
