HEDS Series
Manufacturer: Broadcom Limited
Beta
⌘K
ROTARY ENCODER OPTICAL 100PPR
| Part | Detent | Output Type | Actuator Type | Pulses per Revolution | Mounting Type | Orientation | Built in Switch | Termination Style | Encoder Type | Supplied Contents | Contents | Sensor Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Embedded | Interface | Utilized IC / Part | For Use With/Related Products | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Quadrature (Incremental) | Codewheel Not Included | 100 | Chassis Mount | Right Angle | Terminal Pins | Optical | ||||||||||||
 Broadcom Limited | Board(s) | Board(s) | Magnetic Rotary Position | 5 V | 3.3 V | Digital | AEAT-9955 | ||||||||||||
 Broadcom Limited | Quadrature (Incremental) | 1/4" Open Center | 500 | Chassis Mount Motors | Vertical | Terminal Pins | Optical | ||||||||||||
 Broadcom Limited | Quadrature (Incremental) | Codewheel Not Included | 400 | Chassis Mount | Vertical | Terminal Pins | Optical | ||||||||||||

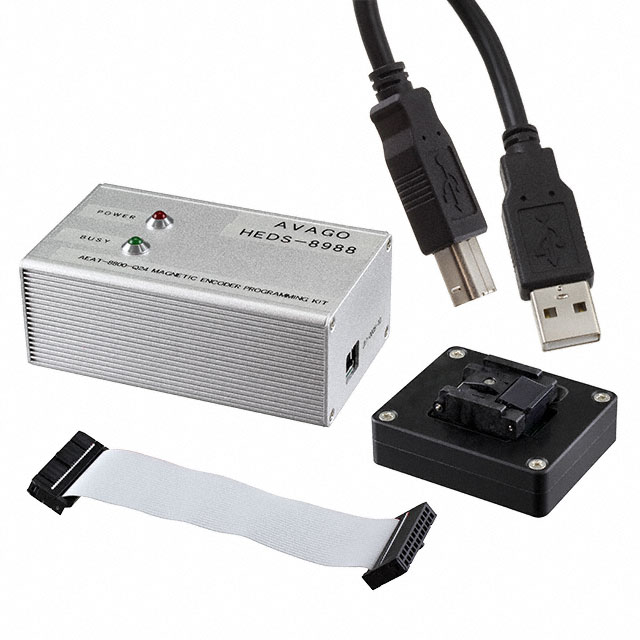

 Broadcom Limited | Accessories Board(s) Cable(s) | AEAT-8800-Q24 | AEAT-8800-Q24 | Programmer |
