PCA9535 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
I/O EXPANDER, 16 BIT, I2C, SMBUS, 2.3 V, 5.5 V, TSSOP, 24 PINS
| Part | Number of I/O | Clock Frequency | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Package / Case | Package / Case | Interface | Current - Output Source/Sink [custom] | Current - Output Source/Sink [custom] | Interrupt Output | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Output Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

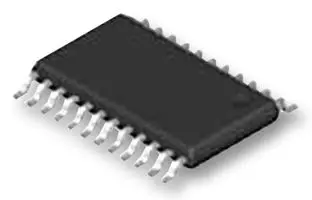

 Freescale Semiconductor - NXP | 16 | 400 kHz | 2.3 V | 5.5 V | Surface Mount | 24-TSSOP | 0.173 in 4.4 mm | I2C SMBus | 10 mA | 25 mA | 85 °C | -40 °C | 24-TSSOP | Push-Pull | POR | |

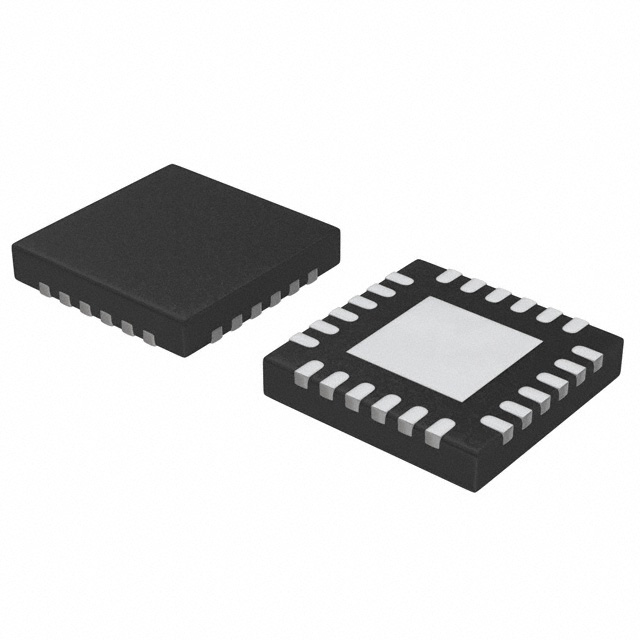

 Freescale Semiconductor - NXP | 16 | 400 kHz | 2.3 V | 5.5 V | Surface Mount | 24-WFQFN Exposed Pad | I2C SMBus | 10 mA | 25 mA | 85 °C | -40 °C | 24-HWQFN (4x4) | Push-Pull | POR |
