1782-0 Series

Catalog

CONN RECEPT PIN .015-.025" .130"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Length - Overall [x]	Length - Overall [x]	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 1782-0-15-01-43-14-04-0	-55 C	125 °C	0.25 Ám	10 Áin	Beryllium Copper	Press-Fit	0.31 in	7.87 mm	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.056 "	1.42 mm	Standard Tail
Mill-Max Manufacturing Corp. 1782-0-15-80-43-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.31 in	7.87 mm	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.056 "	1.42 mm	Standard Tail

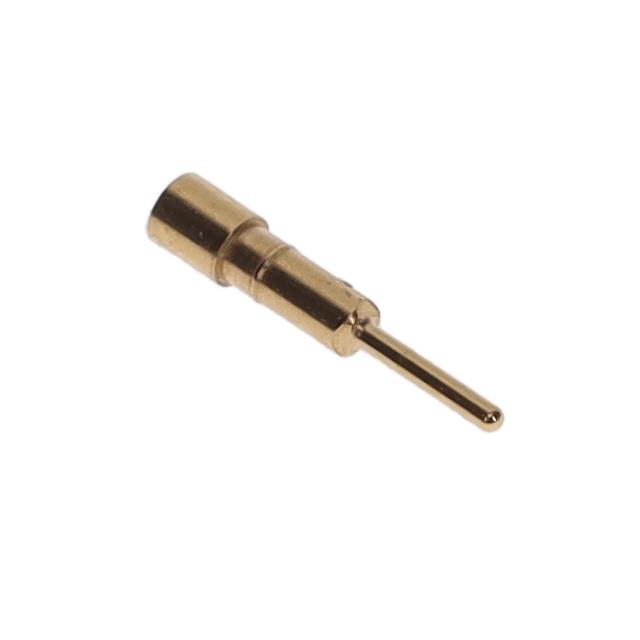

Mill-Max Manufacturing Corp. 1782-0-15-15-43-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.31 in	7.87 mm	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.056 "	1.42 mm	Standard Tail

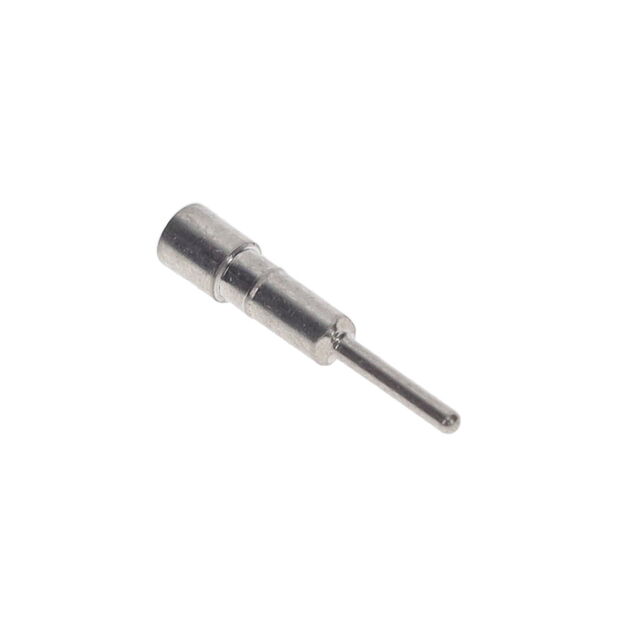

Mill-Max Manufacturing Corp. 1782-0-15-01-43-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.31 in	7.87 mm	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.056 "	1.42 mm	Standard Tail
Mill-Max Manufacturing Corp. 1782-0-15-15-43-14-04-0	-55 C	125 °C	0.25 Ám	10 Áin	Beryllium Copper	Press-Fit	0.31 in	7.87 mm	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.056 "	1.42 mm	Standard Tail
