EB142A Series
Manufacturer: Adam Tech
Beta
⌘K
EUROBLOCK 4POS
| Part | Housing Material | Contact Material - Plating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Pitch | Pitch | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Positions Per Level | Voltage | Color | Current | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Liquid Crystal Polymer (LCP) | Tin | 115 °C | -40 C | Through Hole | 3.5 mm | 0.138 " | 1 | 24 AWG | 16 AWG | Vertical with Board | 4 | 300 VDC | Black | 10 A | Screwless - Push Button Clamp |

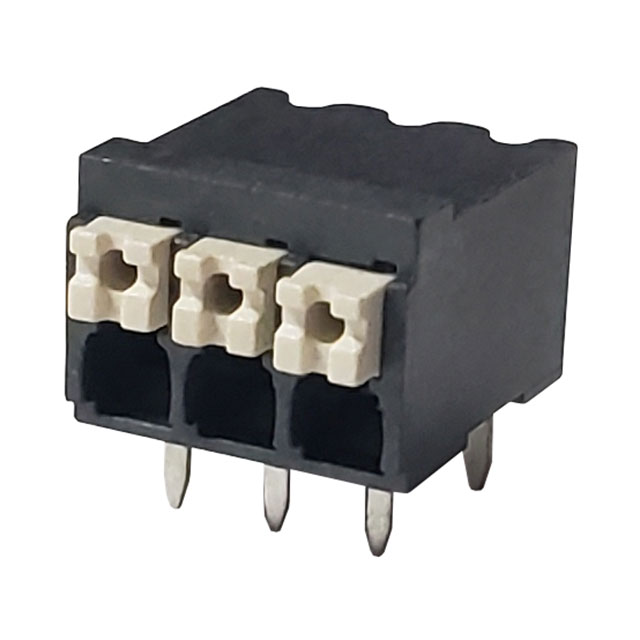

 Adam Tech | Liquid Crystal Polymer (LCP) | Copper Alloy - Tin Plated | 105 ░C | -40 C | Through Hole | 3.5 mm | 0.138 " | 1 | 24 AWG | 16 AWG | Horizontal with Board | 3 | 300 VDC | Black | 10 A | Screwless - Push Button Clamp |

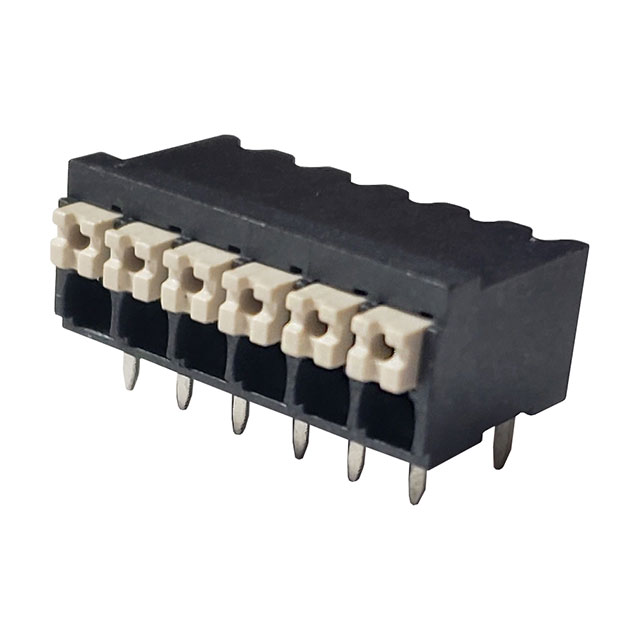

 Adam Tech | Liquid Crystal Polymer (LCP) | Copper Alloy - Tin Plated | 105 ░C | -40 C | Through Hole | 3.5 mm | 0.138 " | 1 | 24 AWG | 16 AWG | Horizontal with Board | 6 | 300 VDC | Black | 10 A | Screwless - Push Button Clamp |

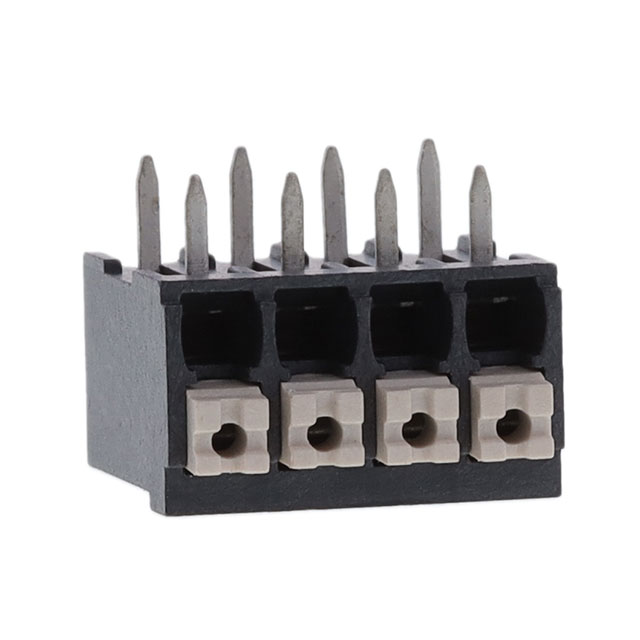

 Adam Tech | Liquid Crystal Polymer (LCP) | Copper Alloy - Tin Plated | 105 ░C | -40 C | Through Hole | 3.5 mm | 0.138 " | 1 | 24 AWG | 16 AWG | Horizontal with Board | 4 | 300 VDC | Black | 10 A | Screwless - Push Button Clamp |

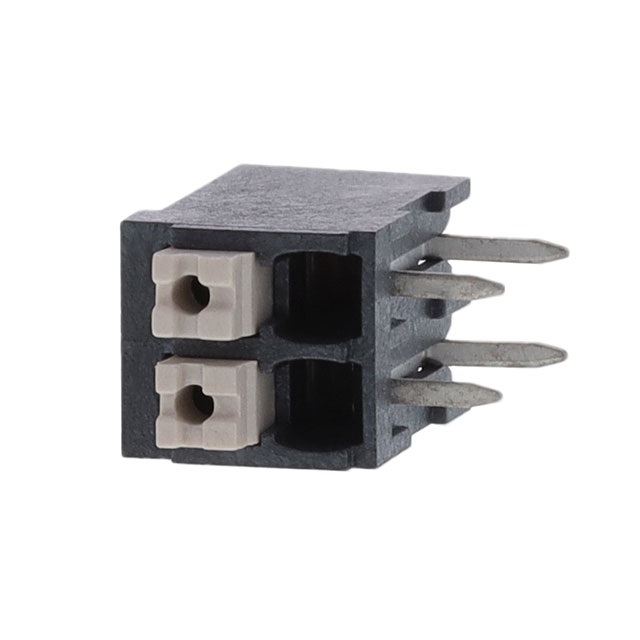

 Adam Tech | Liquid Crystal Polymer (LCP) | Copper Alloy - Tin Plated | 105 ░C | -40 C | Through Hole | 3.5 mm | 0.138 " | 1 | 24 AWG | 16 AWG | Horizontal with Board | 2 | 300 VDC | Black | 10 A | Screwless - Push Button Clamp |
