C146 21R016 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD CPLNG BOTTOM SZA16 M20

Part	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Housing Material	Thread Size	Ingress Protection	Lock Location	Connector Type	Size	Operating Temperature [Min]	Operating Temperature [Max]	Features

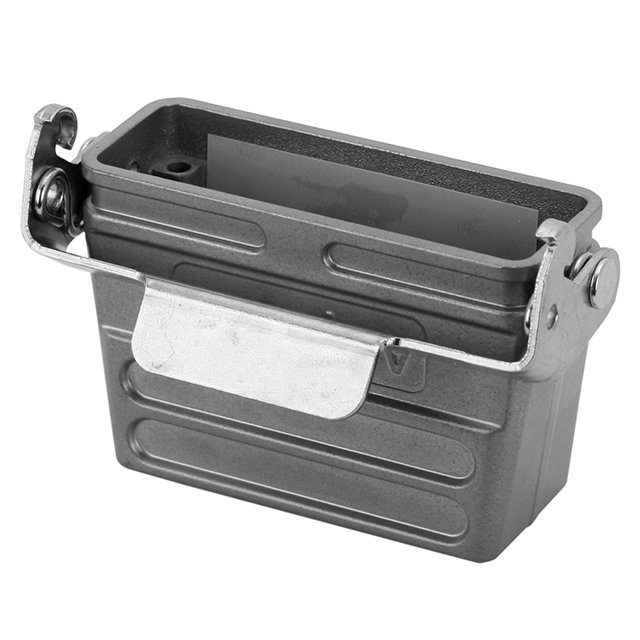

Amphenol Tuchel Industrial C146 21R016 854 4	Bottom Entry Top or Bottom Entry	3.11 "	1.161 in	2.067 in	52.5 mm	79 mm	29.5 mm	Aluminum Alloy Die Cast	M20	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood Top	Hood - Coupling	A16	-40 C	100 °C	Cable to Cable

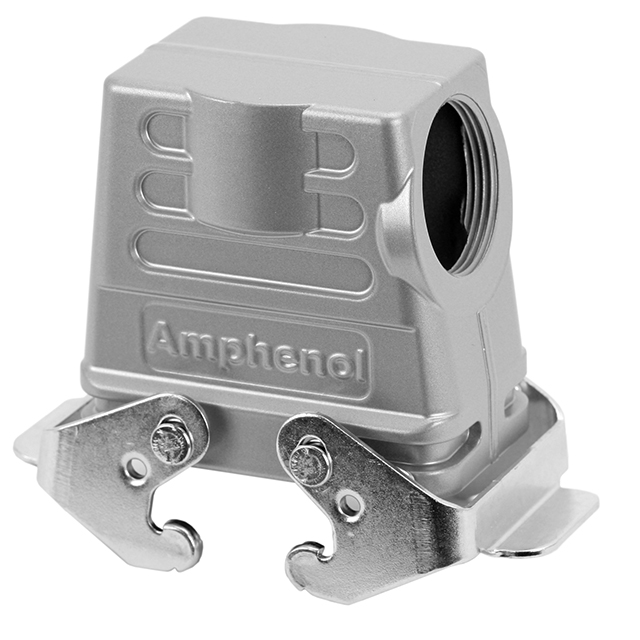

Amphenol Tuchel Industrial C146 21R016 502 1	Side Entry	3.681 in	1.693 "	2.441 "	62 mm	93.5 mm	43 mm	Aluminum Alloy Die Cast	M32	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	Hood	E16	-40 C	100 °C

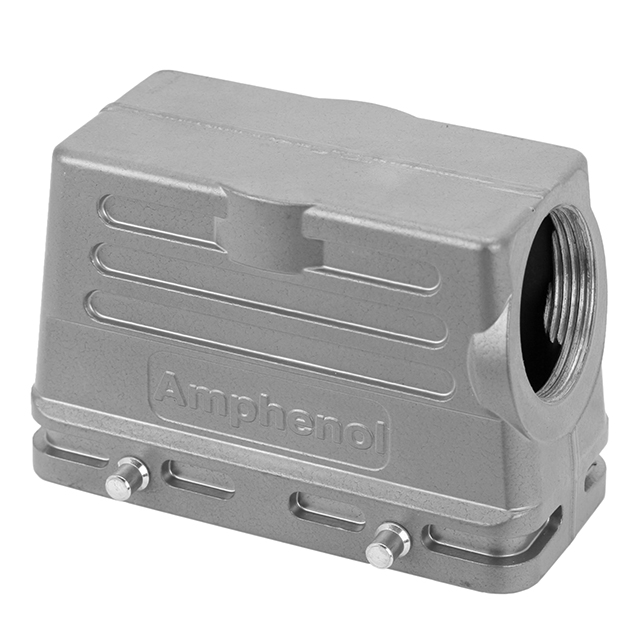

Amphenol Tuchel Industrial C146 21R016 500 8	Side Entry							Aluminum Die Cast	M32	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Hood	E16	-40 C	100 °C

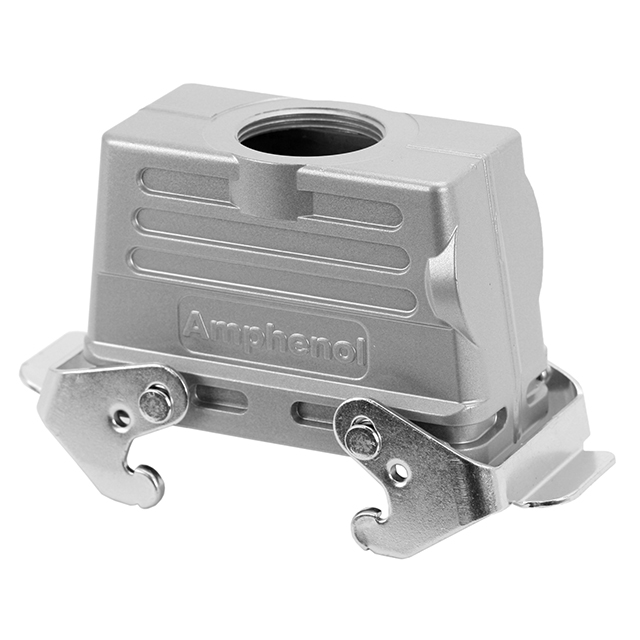

Amphenol Tuchel Industrial C146 21R016 852 8	Bottom Entry Top or Bottom Entry	3.681 in	1.693 "	2.992 in	76 mm	93.5 mm	43 mm	Aluminum Die Cast	M25	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	Hood - Coupling	E16	-40 C	100 °C	Cable to Cable

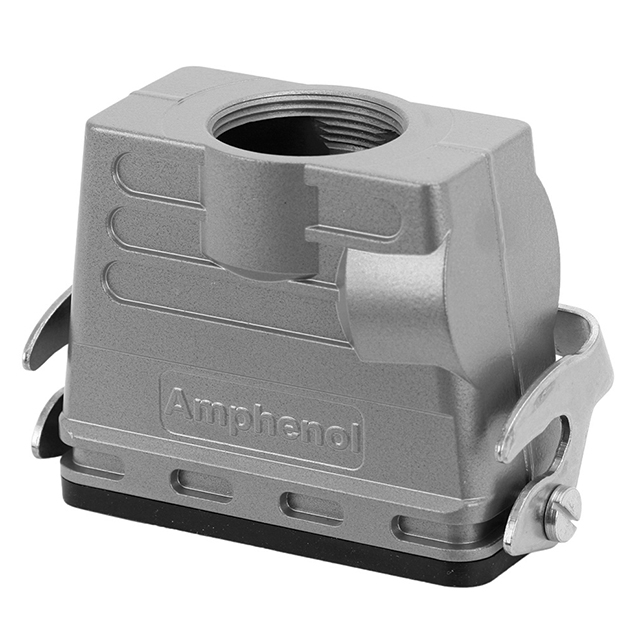

Amphenol Tuchel Industrial C146 21R016 804 1	Bottom Entry Top or Bottom Entry	3.681 in	1.693 "	2.441 "	62 mm	93.5 mm	43 mm	Aluminum Alloy Die Cast	M32	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood Top	Hood - Coupling	E16	-40 C	100 °C	Cable to Cable
Amphenol Tuchel Industrial C146 21R016 600 4	Top Entry	3.11 "	1.161 in	2.283 "	58 mm	79 mm	29.5 mm	Aluminum Alloy Die Cast	M25	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Hood	A16	-40 C	100 °C
Amphenol Tuchel Industrial C146 21R016 803 8	Bottom Entry Top or Bottom Entry	3.681 in	1.693 "	2.992 in	76 mm	93.5 mm	43 mm	Aluminum Die Cast		IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	Hood - Coupling	E16	-40 C	100 °C	Cable to Cable

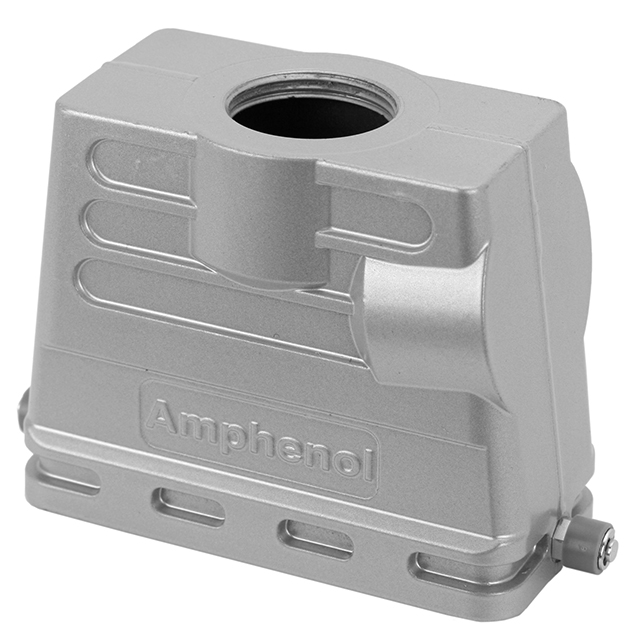

Amphenol Tuchel Industrial C146 21R016 607 8	Top Entry	3.681 in	1.693 "	2.992 in	76 mm	93.5 mm	43 mm	Aluminum Die Cast		IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Hood	E16	-40 C	100 °C

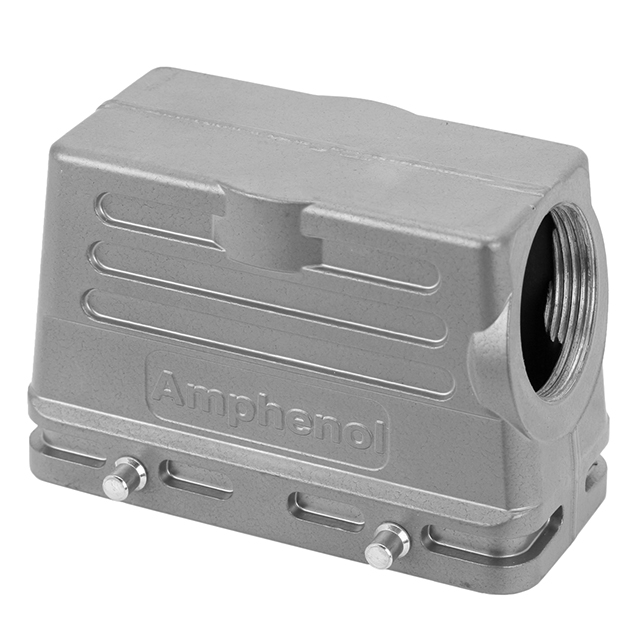

Amphenol Tuchel Industrial C146 21R016 550 1	Side Entry	3.681 in	1.693 "	2.441 "	62 mm	93.5 mm	43 mm	Aluminum Alloy Die Cast	M25	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Hood	E16	-40 C	100 °C

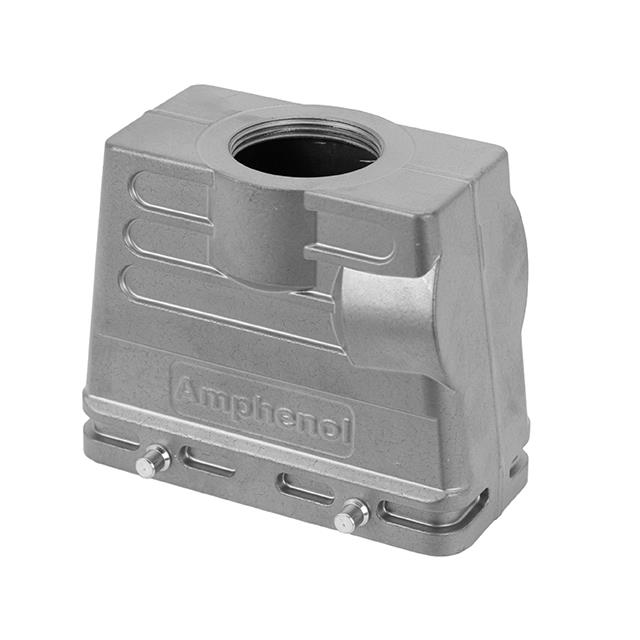

Amphenol Tuchel Industrial C146 21R016 600 8F	Top Entry	3.681 in	1.693 "	2.992 in	76 mm	93.5 mm	43 mm	Aluminum Die Cast	M32	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Hood	E16	-40 C	100 °C
