r73 Series
Manufacturer: KEMET
Beta
⌘K

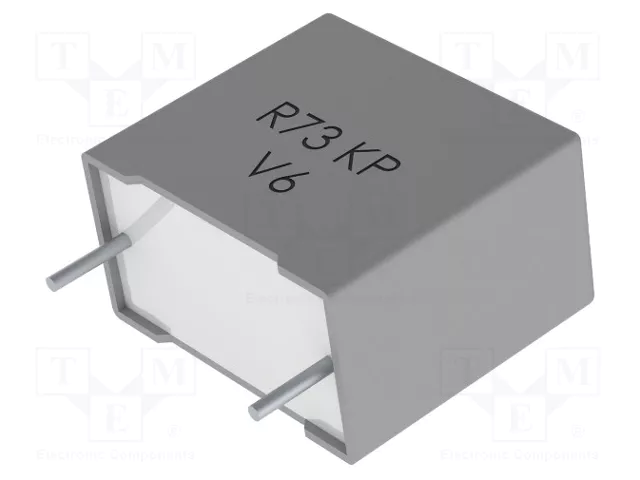

CAPACITOR: POLYPROPYLENE; R73; 6.8NF; 2KVDC; 500VAC; 26.5X8.5X17MM
| Part | Lead Spacing | Lead Spacing | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Dielectric Material | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Package / Case | Capacitance | Applications | Termination | Voltage Rating - DC | Voltage Rating - DC | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.886 in | 22.5 mm | 5 % | 1.043 in | 0.335 in | 8.5 mm | 26.5 mm | Through Hole | Polypropylene (PP) Metallized | 500 V | -55 C | 105 ░C | AEC-Q200 | Radial | 6800 pF | Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching | PC Pins | 2 kV | 2 kVDC | 0.673 in | 17.1 mm |
