1302E Series
Manufacturer: Belden Inc.
Beta
⌘K

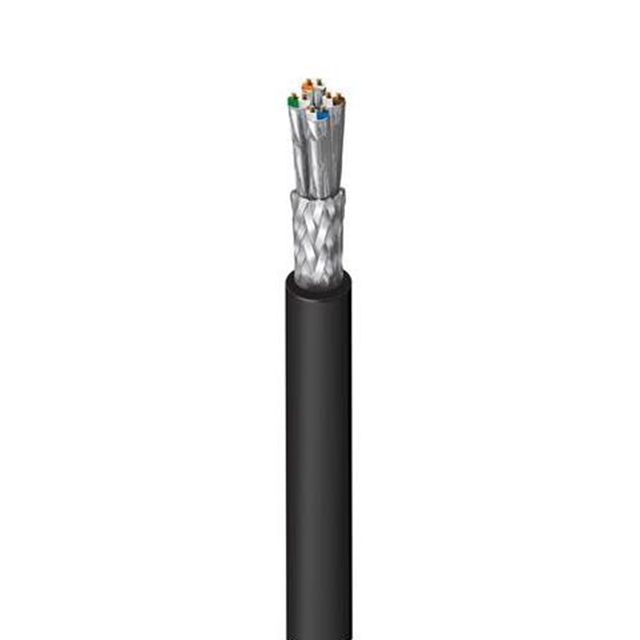

CATSNAKE CAT 6A S/FTP PVC
| Part | Shield Coverage | Shield Material | Usage | Voltage | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Material | Shield Type | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Number of Conductors | Features | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 % 100 % | Aluminum Polyester Copper Tinned | Audio Ethernet | 72 V | 24 AWG | -30 ░C | 60 °C | Multi-Pair Cat6a | Copper Bare | Braid Foil | Black | Foam Polyethylene (FPE) | 7 | 32 AWG | 1640 ft | 499.9 m | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) |
 Belden Inc. | 80 % 100 % | Aluminum Polyester Copper Tinned | Audio Ethernet | 72 V | 24 AWG | -30 ░C | 60 °C | Multi-Pair Cat6a | Copper Bare | Braid Foil | Black | Foam Polyethylene (FPE) | 7 | 32 AWG | 500 ft | 152.4 m | 8 | Drain Wire | Poly-Vinyl Chloride (PVC) |
