503480 Series
Manufacturer: Molex
Beta
⌘K

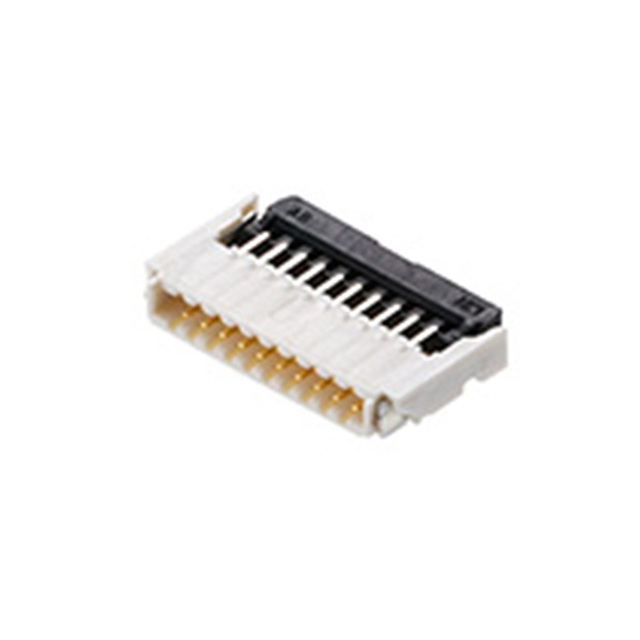

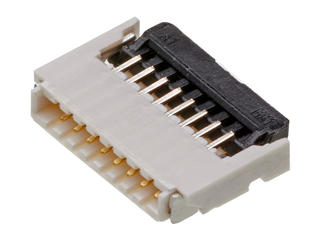

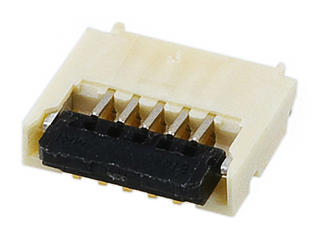

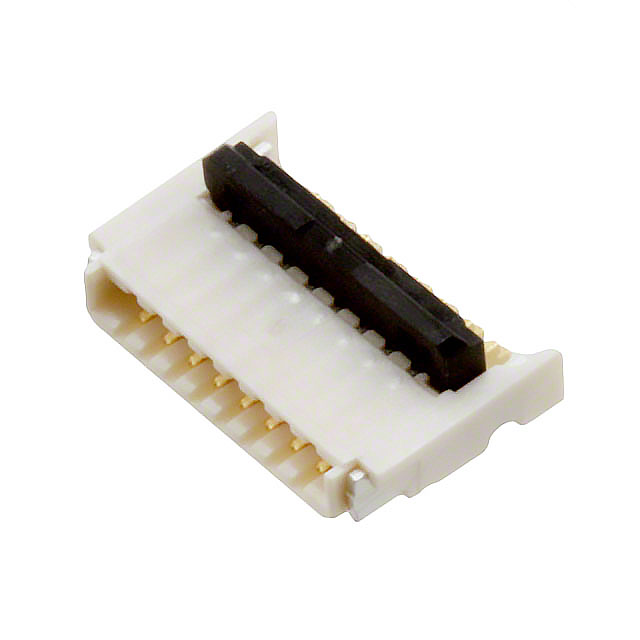

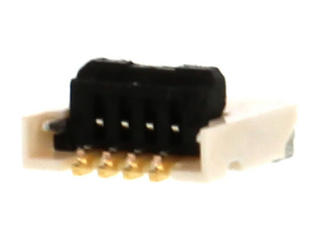

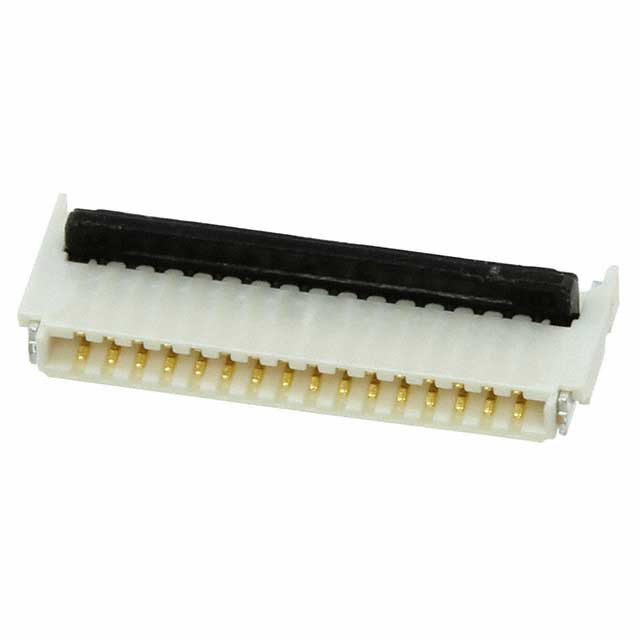

EASY-ON FFC/FPC CONNECTOR, 0.50MM PITCH, FBH1 SERIES, RIGHT-ANGLE, DUAL CONTACT, 1.00MM HEIGHT, 24 CIRCUITS, GOLD OVER NICKEL PLATING
| Part | Current Rating (Amps) | Housing Color | Actuator Color | Mating Cycles | Features | Voltage Rating | Number of Positions | Pitch | Pitch | Contact Finish | Connector/Contact Type | Material Flammability Rating | Contact Material | FFC, FCB Thickness | Housing Material | Mounting Type | Cable End Type | Height Above Board [z] | Height Above Board [z] | Termination | Locking Feature | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.5 A | White | Black | 10 | Solder Retention | 50 V | 24 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 HB UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight Tabbed | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC |
 Molex | Solder Retention | 50 V | 20 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 HB UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC | ||||
 Molex | |||||||||||||||||||||||||
Molex | 0.5 A | White | Black | 10 | Solder Retention | 50 V | 10 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight or Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC |
 Molex | 0.5 A | White | Black | 10 | Solder Retention | 50 V | 8 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 HB UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC |
Molex | 0.5 A | White | Black | 10 | Solder Retention | 50 V | 14 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight or Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC |
Molex | 0.5 A | White | Black | 10 | Solder Retention | 50 V | 20 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight or Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC |
 Molex | |||||||||||||||||||||||||
 Molex | Solder Retention | 50 V | 12 | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 HB UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC | ||||
 Molex | Solder Retention | 50 V | 0.02 " | 0.5 mm | Gold | Contacts Top and Bottom | UL94 HB UL94 V-0 | Phosphor Bronze | 0.3 mm | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | Straight Tapered | 1 mm | 0.039 " | Solder | Backlock Flip Lock | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FFC FPC |
