PXC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Material	Current Rating (Amps)	Material Flammability Rating	Connector Type	Mounting Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Insulation Color	Overall Contact Length [x]	Overall Contact Length [x]	Shrouding	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Number of Positions	Insulation Material	Style	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]

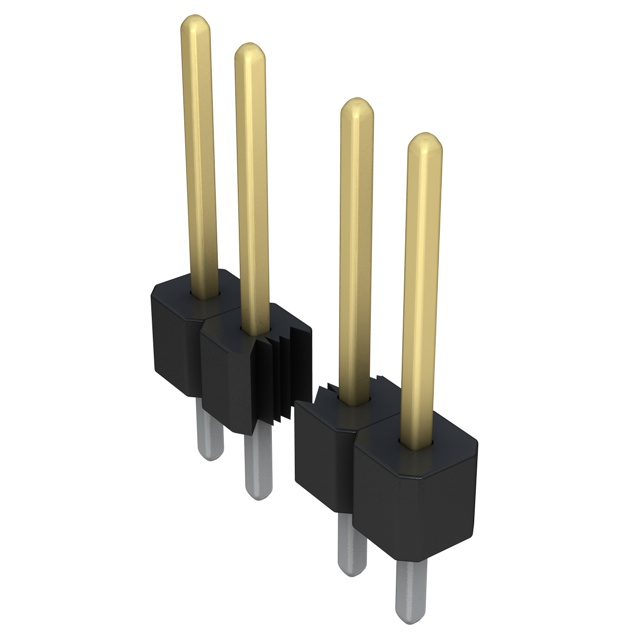

Sullins Connector Solutions PXC36SFAN	2.54 µm	100 µin	Solder	Copper Alloy	3 A	UL94 V-0	Header	Through Hole	Gold	3.05 mm	0.12 in	Tin	Black	13.67 mm	0.538 in	Unshrouded	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	8.08 mm	0.318 in	Male Pin	All	0.76 Ám	30 Áin	1	Push-Pull	36	Polyester Thermoplastic	Board to Board Cable
Sullins Connector Solutions PXC36DFBN	2.54 µm	100 µin	Solder	Copper Alloy	3 A	UL94 V-0	Header	Through Hole	Gold	5.58 mm	0.22 in	Tin	Black			Unshrouded	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	8.08 mm	0.318 in	Male Pin	All	0.76 Ám	30 Áin		Push-Pull	72	Polyester Thermoplastic	Board to Board Cable	2	0.638 in	16.21 mm	0.1 in	2.54 mm

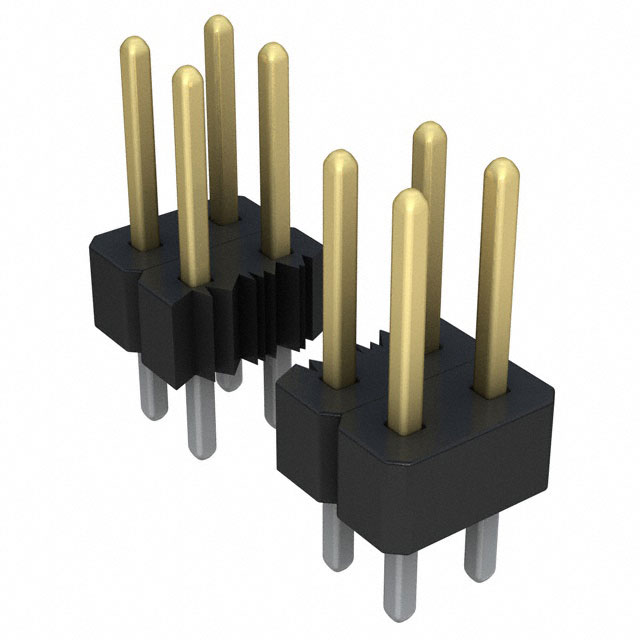

Sullins Connector Solutions PXC36DAAN	2.54 µm	100 µin	Solder	Copper Alloy	3 A	UL94 V-0	Header	Through Hole	Gold	3.05 mm	0.12 in	Tin	Black	11.43 mm	0.45 in	Unshrouded	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	5.84 mm	0.23 in	Male Pin	All	0.76 Ám	30 Áin		Push-Pull	72	Polyester Thermoplastic	Board to Board Cable	2			0.1 in	2.54 mm

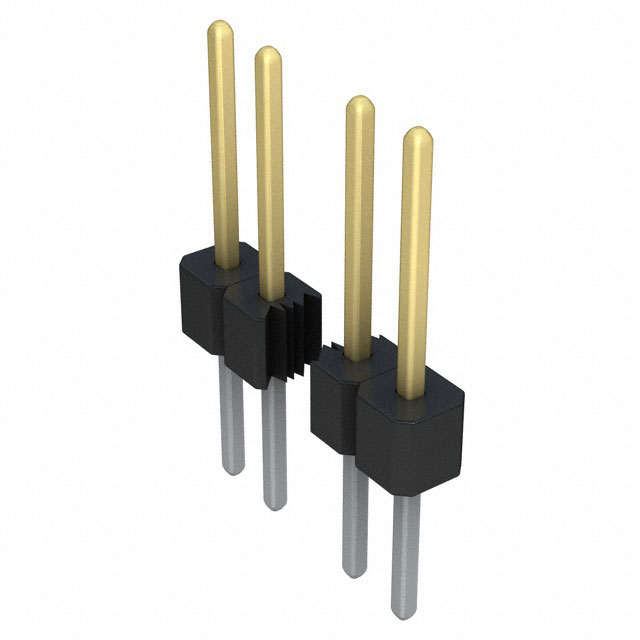

Sullins Connector Solutions PXC36SFBN	2.54 µm	100 µin	Solder	Copper Alloy	3 A	UL94 V-0	Header	Through Hole	Gold	5.58 mm	0.22 in	Tin	Black			Unshrouded	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	8.08 mm	0.318 in	Male Pin	All	0.76 Ám	30 Áin	1	Push-Pull	36	Polyester Thermoplastic	Board to Board Cable		0.638 in	16.21 mm
Sullins Connector Solutions PXC36SAAN	2.54 µm	100 µin	Solder	Copper Alloy	3 A	UL94 V-0	Header	Through Hole	Gold	3.05 mm	0.12 in	Tin	Black	11.43 mm	0.45 in	Unshrouded	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	5.84 mm	0.23 in	Male Pin	All	0.76 Ám	30 Áin	1	Push-Pull	36	Polyester Thermoplastic	Board to Board Cable
