746-022 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 22POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Finish	Number of Positions	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Gender	Number of Rows [custom]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Pitch	Pitch	Termination	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination Rows	Number of Rows
EDAC Inc. 746-022-560-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	2	Cantilever Make Before Break	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit	Dual	30 Áin	0.76 Ám	11

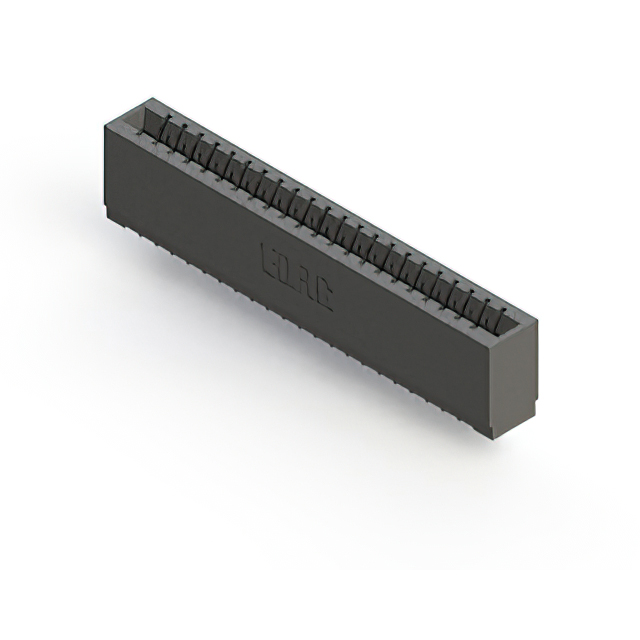

EDAC Inc. 746-022-553-501	Polyester Thermoplastic		Non Specified - Single Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female		Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	22	1	1

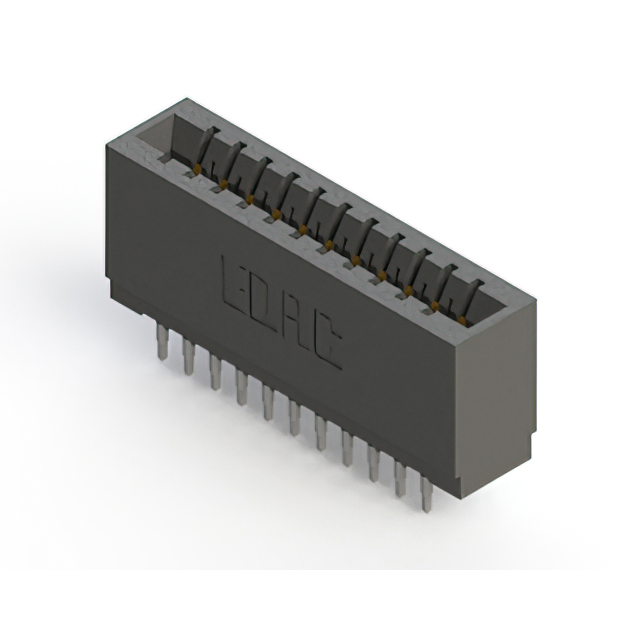

EDAC Inc. 746-022-525-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	2	Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit	Dual	30 Áin	0.76 Ám	11
EDAC Inc. 746-022-540-101	Polyester Thermoplastic		Non Specified - Single Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female		Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	22	1	1
EDAC Inc. 746-022-541-206	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	2	Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Dual	30 Áin	0.76 Ám	11

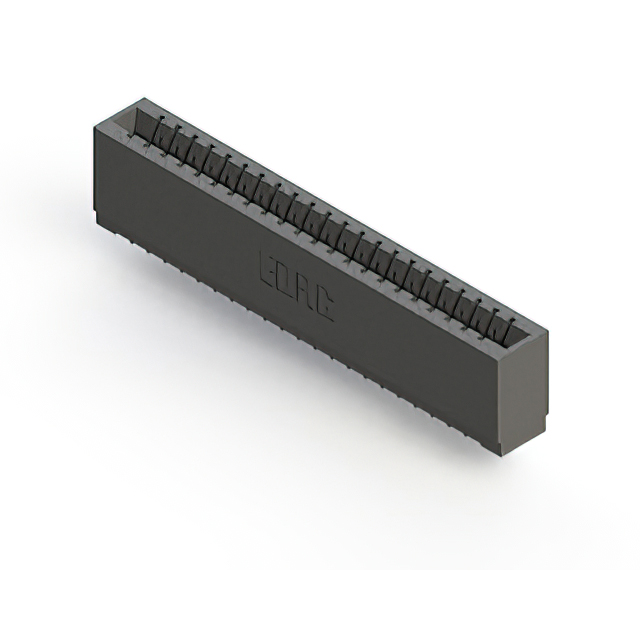

EDAC Inc. 746-022-540-501	Polyester Thermoplastic		Non Specified - Single Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female		Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Single	30 Áin	0.76 Ám	22	1	1

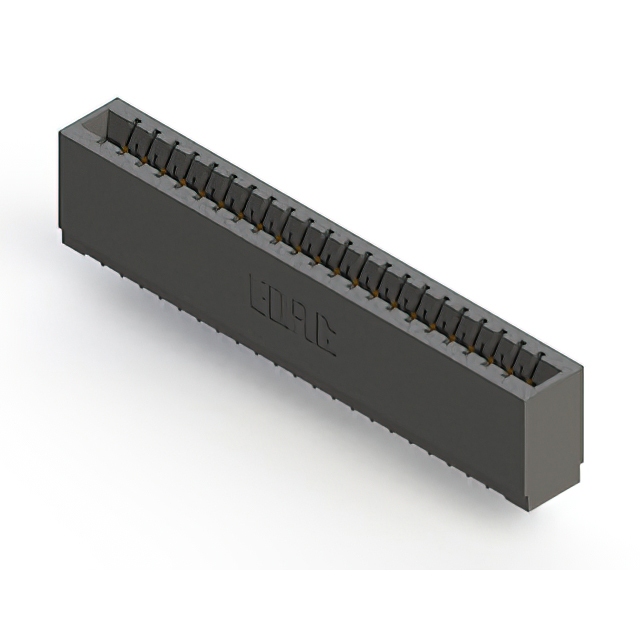

EDAC Inc. 746-022-525-101	Polyester Thermoplastic		Non Specified - Single Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female		Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit	Single	30 Áin	0.76 Ám	22	1	1

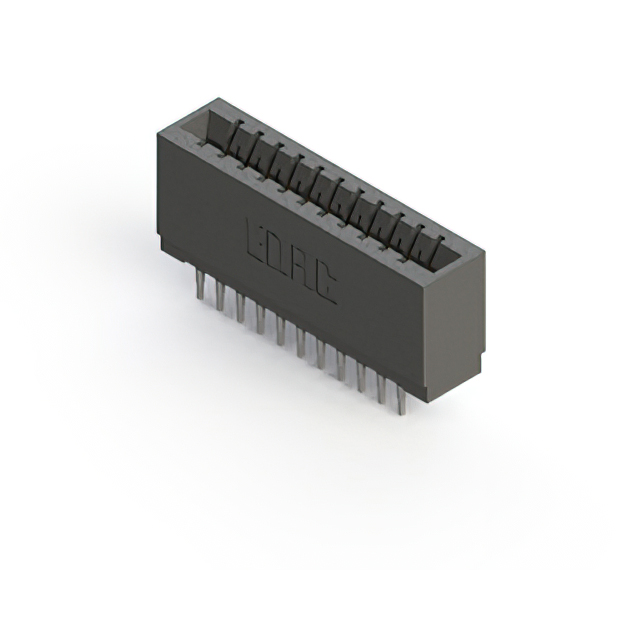

EDAC Inc. 746-022-541-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	2	Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Dual	30 Áin	0.76 Ám	11

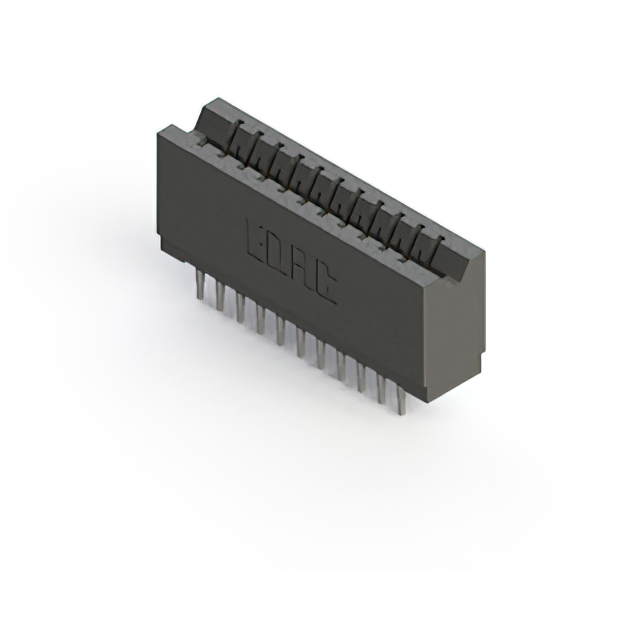

EDAC Inc. 746-022-541-606	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	2	Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Dual	30 Áin	0.76 Ám	11

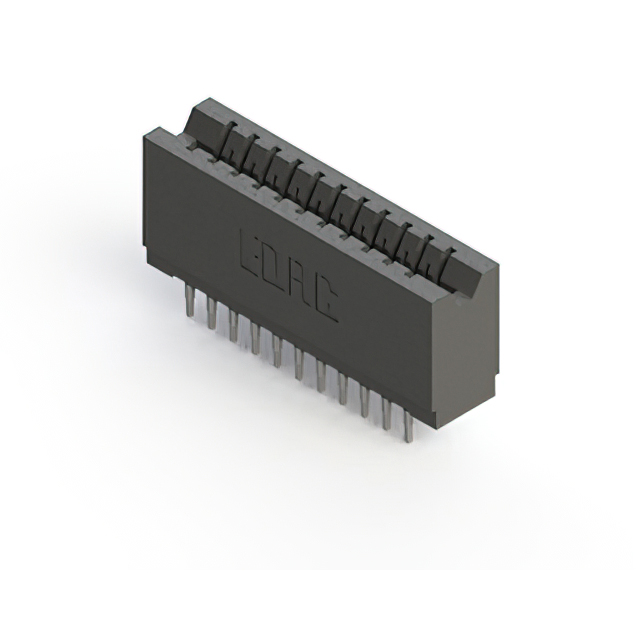

EDAC Inc. 746-022-540-606	Polyester Thermoplastic	2	Non Specified - Dual Edge	Gold	22	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	2	Cantilever	-40 C	105 ░C	Black	3.18 mm	0.125 in	Press-Fit Wire Wrap	Dual	30 Áin	0.76 Ám	11
