7210-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

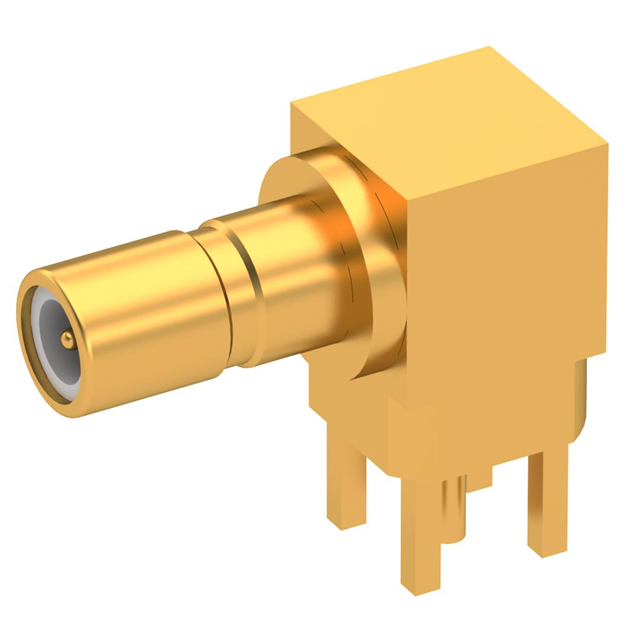

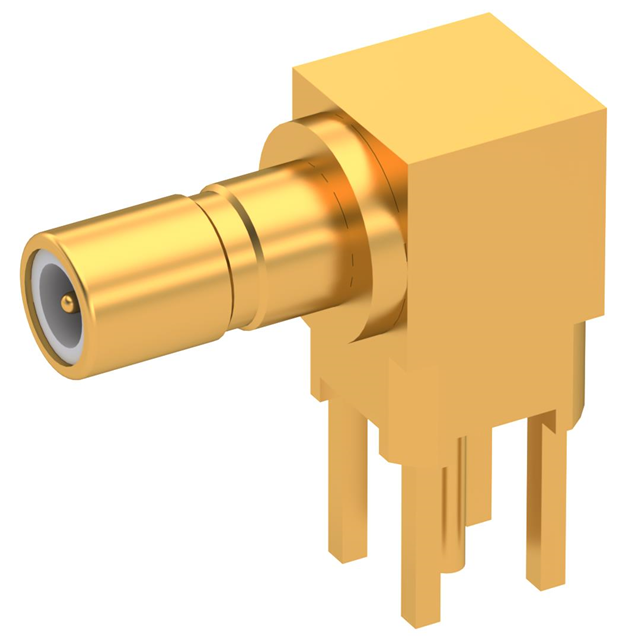

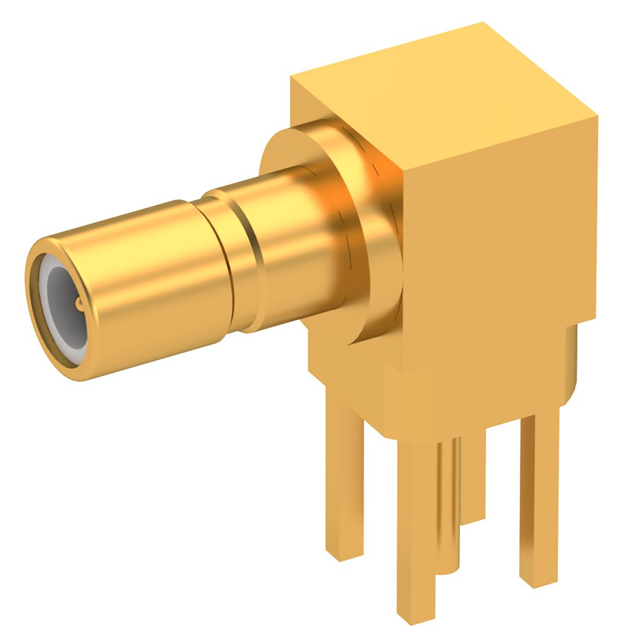

SSMB / RIGHT ANGLE JACK MALE GOL
| Part | Mating Cycles | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Body Finish | Center Contact Plating | Impedance | Center Contact Material | Connector Style | Fastening Type | Frequency - Max [Max] | Connector Type | Shield Termination | Number of Ports | Contact Termination | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 250 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | 50 Ohms | Beryllium Copper | SSMB | Snap-On | 12.4 GHz | Receptacle Male Pin | Solder | 1 | Solder | Gold | Right Angle Through Hole |
 Radiall USA, Inc. | 500 | 250 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | 50 Ohms | Beryllium Copper | SSMB | Snap-On | 12.4 GHz | Jack Male Pin | Solder | 1 | Solder | Gold | Right Angle Through Hole |
 Radiall USA, Inc. | 500 | 250 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | 50 Ohms | Beryllium Copper | SSMB | Snap-On | 12.4 GHz | Jack Male Pin | Solder | 1 | Solder | Gold | Right Angle Through Hole |
Radiall USA, Inc. | 500 | 250 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | 50 Ohms | Beryllium Copper | SSMB | Snap-On | 12.4 GHz | Jack Male Pin | Solder | 1 | Solder | Gold | Right Angle Through Hole |

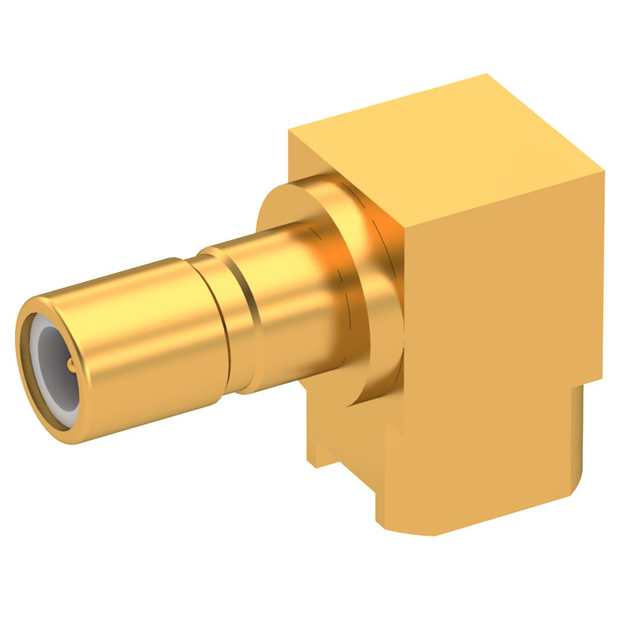

 Radiall USA, Inc. | 500 | 250 V | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | 50 Ohms | Beryllium Copper | SSMB | Snap-On | 12.4 GHz | Jack Male Pin | Solder | 1 | Solder | Gold | Right Angle Surface Mount |
