M2024LL Series

Catalog

SWITCH TOGGLE SP3T 6A 125V

Part	Actuator Material	Electrical Life	Circuit	Features	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Mounting Type	Bushing Thread	Bushing Thread	Illumination	Termination Style	Ingress Protection
NKK Switches M2024LL4W01-C	Brass Chrome Plated	25000 Steps	SP3T	Jumper needed to achieve triple throw	6.5 mm	16.5 mm	30 V	85 °C	-30 ░C	Locking Lever	125 V	3 A 6 A	On-On-On	Panel Mount	0.75	M6	Non-Illuminated	Solder Lug

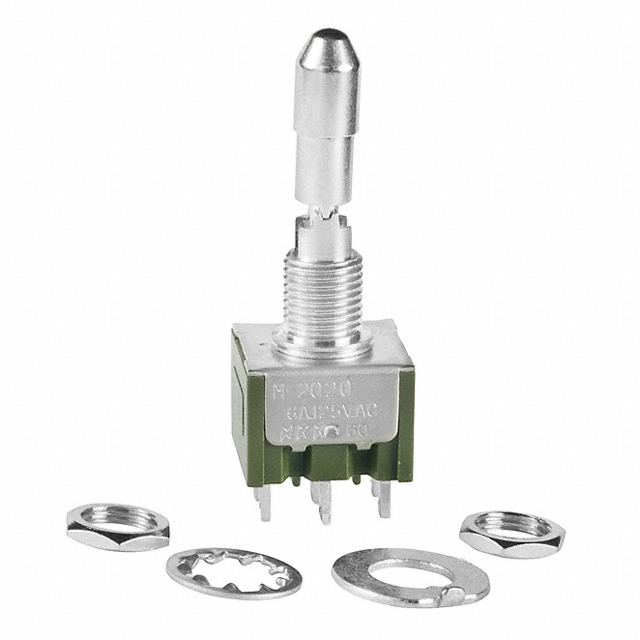

NKK Switches M2024LL1W01	Brass Chrome Plated	25000 Steps	SP3T	Jumper needed to achieve triple throw	6.5 mm	16.5 mm	30 V	85 °C	-30 ░C	Locking Lever	125 V	3 A 6 A	On-On-On	Panel Mount		1/4-40	Non-Illuminated	Solder Lug
NKK Switches M2024LL3W01	Brass Chrome Plated	25000 Steps	SP3T	Jumper needed to achieve triple throw	6.5 mm	16.5 mm	30 V	85 °C	-30 ░C	Locking Lever	125 V	3 A 6 A	On-On-On	Panel Mount		1/4-40	Non-Illuminated	Solder Lug	IP67 - Dust Tight Waterproof
NKK Switches M2024LL4W01	Brass Chrome Plated	25000 Steps	SP3T	Jumper needed to achieve triple throw	6.5 mm	16.5 mm	30 V	85 °C	-30 ░C	Locking Lever	125 V	3 A 6 A	On-On-On	Panel Mount	0.75	M6	Non-Illuminated	Solder Lug

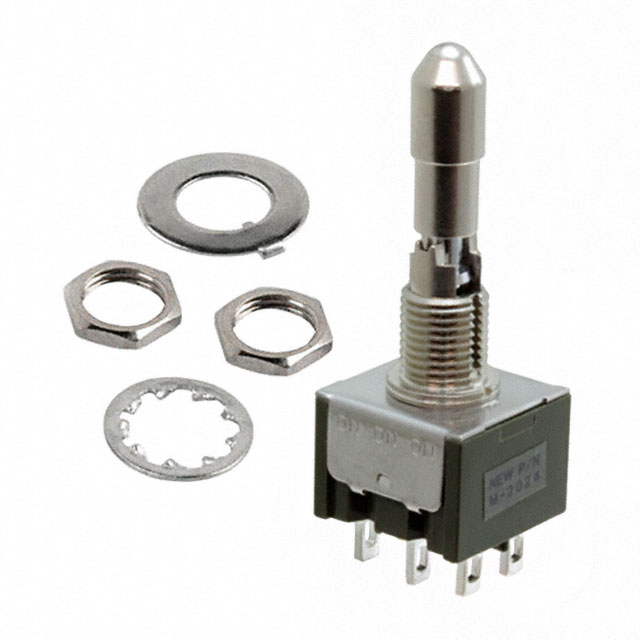

NKK Switches M2024LL1W01-H	Brass Chrome Plated	25000 Steps	SP3T	Gray Cap	6.5 mm	16.5 mm	30 V	85 °C	-30 ░C	Locking Lever	125 V	3 A 6 A	On-On-On	Panel Mount		1/4-40	Non-Illuminated	Solder Lug
NKK Switches M2024LL3W03	Brass Chrome Plated	25000 Steps	SP3T	Jumper needed to achieve triple throw	6.5 mm	16.5 mm	30 V	85 °C	-30 ░C	Locking Lever	125 V	3 A 6 A	On-On-On	Panel Mount		1/4-40	Non-Illuminated	PC Pin	IP67 - Dust Tight Waterproof
NKK Switches M2024LL1G01	Brass Chrome Plated	50000 Cycles	SP3T	Jumper needed to achieve triple throw	6.5 mm	16.5 mm	28 V	85 °C	-30 ░C	Locking Lever	28 V	0.4 VA	On-On-On	Panel Mount		1/4-40	Non-Illuminated	Solder Lug
