3039-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

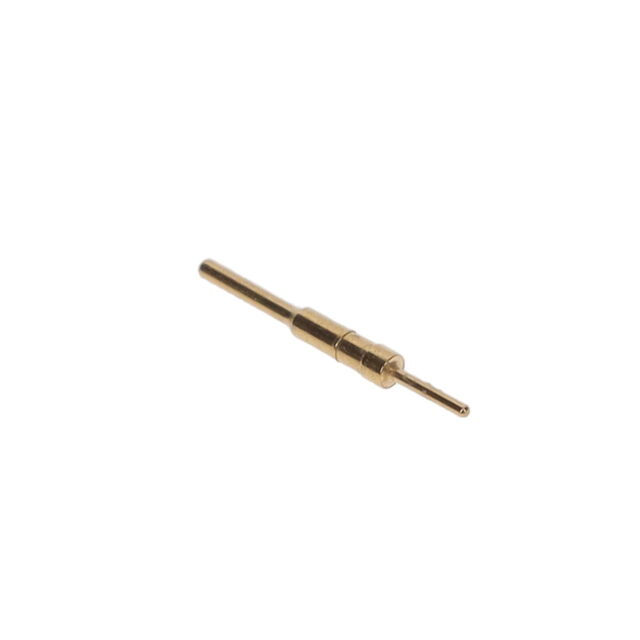

CONN PC PIN CIRC
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Finish | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Terminal Type | Length - Above Flange | Length - Above Flange [x] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.025 in | 0.64 mm | Through Hole | 0.011 in | 0.28 mm | Gold | Press-Fit | 0.265 in | 6.73 mm | Brass Alloy | PC Pin | 4.32 mm | 0.17 in | Non-Insulated | 0.25 Ám | 10 Áin | 0.74 mm | 0.029 in | 0.015 in | 0.38 mm | Single End | 1.91 mm | 0.075 " |
