04FMN-BM Series

Catalog

CONN FFC VERT 4POS 1MM SMD

Part	Housing Color	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	FFC, FCB Thickness	Contact Finish	Termination	Number of Positions	Contact Material	Pitch	Pitch	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Features	Connector/Contact Type	Housing Material	Cable End Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type

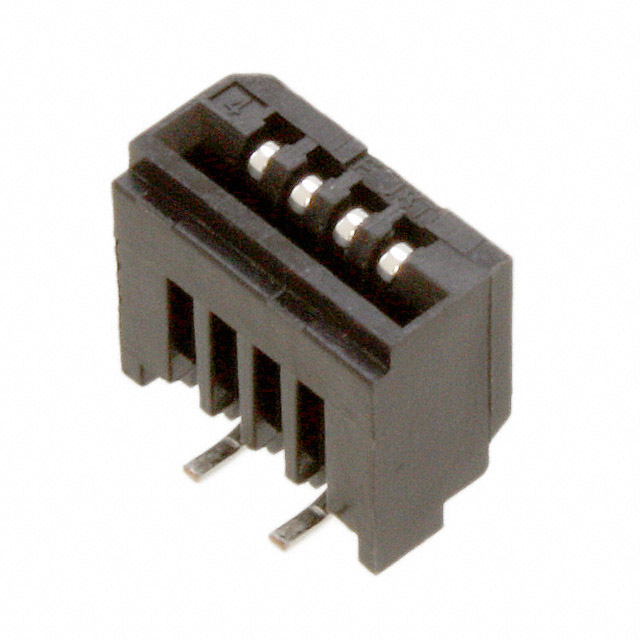

JST Sales America Inc. 04FMN-BMTTN-A-TF	Black	0.5 A	UL94 V-0	50 V	0.3 mm	Tin	Solder	4	Phosphor Bronze	1 mm	0.039 in	FFC	5.1 mm	0.201 in	Low Insertion Force (LIF)	Contacts Vertical - 1 Sided	Nylon 6T Polyamide (PA6T)	Straight	85 °C	-25 °C	Surface Mount
JST Sales America Inc. 04FMN-BMT-A-TFT	Black	0.5 A	UL94 V-0	50 V	0.3 mm	Tin	Solder	4	Phosphor Bronze	1 mm	0.039 in	FFC	5.1 mm	0.201 in	Low Insertion Force (LIF)	Contacts Vertical - 1 Sided	Nylon 6T Polyamide (PA6T)	Straight	85 °C	-25 °C	Surface Mount
JST Sales America Inc. 04FMN-BMTTR-A-TB(LF)(SN)	Black	0.5 A	UL94 V-0	50 V	0.3 mm	Tin	Solder	4	Phosphor Bronze	1 mm	0.039 in	FFC	5.1 mm	0.201 in	Low Insertion Force (LIF)	Contacts Vertical - 1 Sided	Nylon 6T Polyamide (PA6T)	Straight	85 °C	-25 °C	Surface Mount

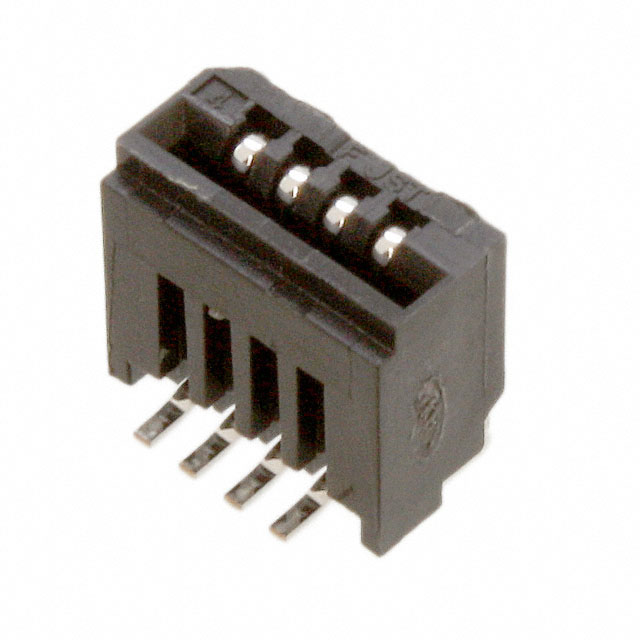

JST Sales America Inc. 04FMN-BMT-A-TF	Black	0.5 A	UL94 V-0	50 V	0.3 mm	Tin	Solder	4	Phosphor Bronze	1 mm	0.039 in	FFC	5.1 mm	0.201 in	Low Insertion Force (LIF)	Contacts Vertical - 1 Sided	Nylon 6T Polyamide (PA6T)	Straight	85 °C	-25 °C	Surface Mount
