AWHW 20 Series

Catalog

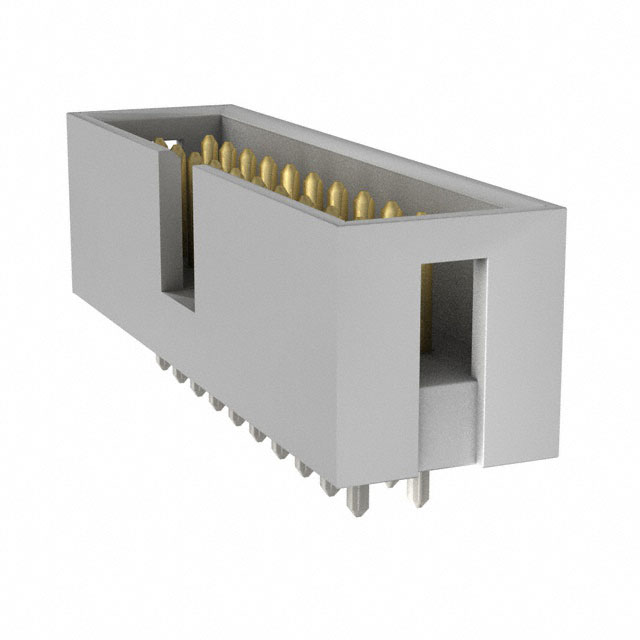

CONN HEADER VERT 20POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Type	Features	Number of Positions	Number of Positions Loaded	Insulation Material	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Style	Contact Finish - Post	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Termination	Contact Shape	Fastening Type
Assmann WSW Components AWHW 20G-0202-T	0.1 in	2.54 mm	Flash	Brass	0.224 in	5.7 mm	Shrouded - 4 Wall	0.354 in	9 mm	3 A	Male Pin	Keying Slot	20	All	Polybutylene Terephthalate (PBT) Glass Filled	2	0.1 "	2.54 mm	0.13 "	3.3 mm	Board to Cable/Wire	Tin	UL94 V-0	Gray	Gold	-40 C	105 ░C	Through Hole	Header	Solder	Square	Push-Pull
