R14215 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

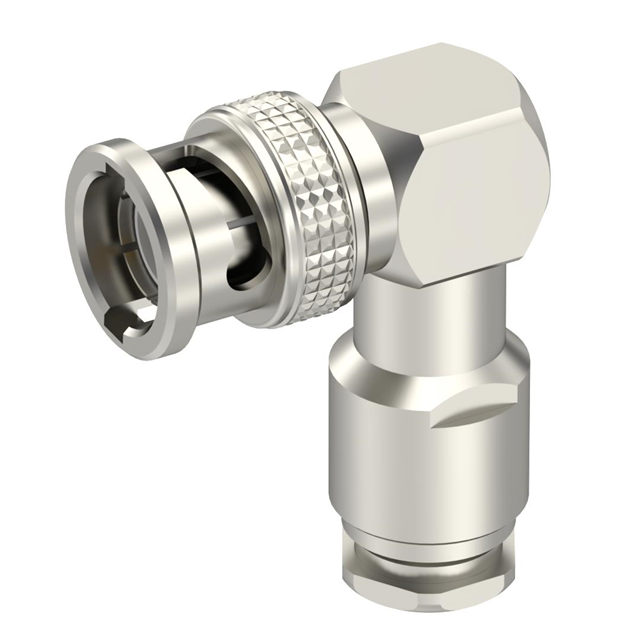

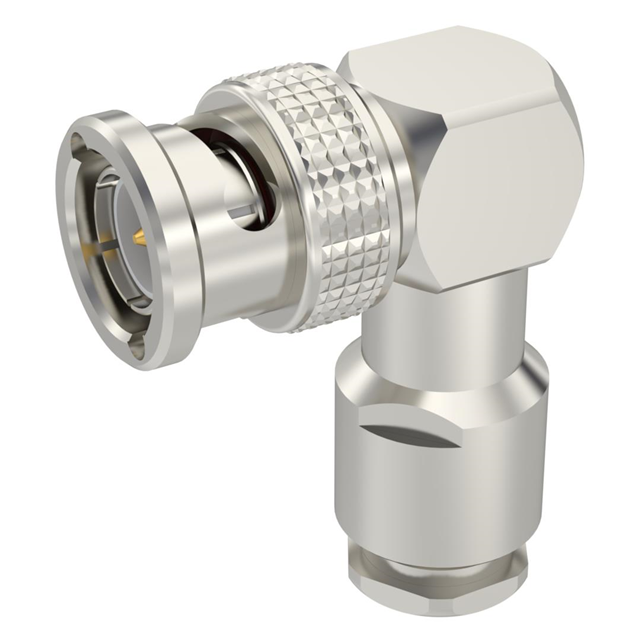

BNC / RIGHT ANGLE PLUG CLAMP TYP
| Part | Body Finish | Dielectric Material | Center Contact Plating | Voltage Rating | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Fastening Type | Frequency - Max [Max] | Impedance | Cable Group | Cable Group | Shield Termination | Connector Style | Connector Type | Housing Color | Center Contact Material | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | Polytetrafluoroethylene (PTFE) | Gold | 500 V | Brass | 500 | -65 ░C | 165 °C | 1 | Bayonet Lock | 1.5 GHz | 75 Ohms | RG-59 | 62 | Clamp | BNC | Plug Male Pin | Silver | Brass | Free Hanging (In-Line) Right Angle | Solder |
 Radiall USA, Inc. | Nickel | Polytetrafluoroethylene (PTFE) | Gold | 335 V | Brass | 500 | -65 ░C | 165 °C | 1 | Bayonet Lock | 1.5 GHz | 75 Ohms | 188 316 RG-179 | Clamp | BNC | Plug Male Pin | Silver | Brass | Free Hanging (In-Line) Right Angle | Solder | |
 Radiall USA, Inc. | Nickel | Polytetrafluoroethylene (PTFE) | Gold | 500 V | Brass | 500 | -65 ░C | 165 °C | 1 | Bayonet Lock | 1.5 GHz | 75 Ohms | RG-59 | 62 | Clamp | BNC | Plug Male Pin | Silver | Brass | Free Hanging (In-Line) Right Angle | Solder |
 Radiall USA, Inc. | Nickel | Polytetrafluoroethylene (PTFE) | Gold | 335 V | Brass | 500 | -65 ░C | 165 °C | 1 | Bayonet Lock | 1.5 GHz | 75 Ohms | 188 316 RG-179 | Clamp | BNC | Plug Male Pin | Silver | Brass | Free Hanging (In-Line) Right Angle | Solder |
