BAT54 Series
Manufacturer: Diotec Semiconductor
Beta
⌘K

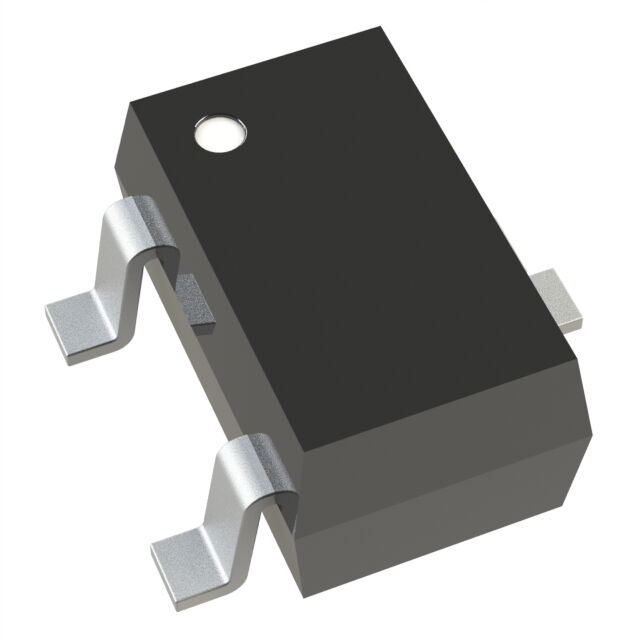

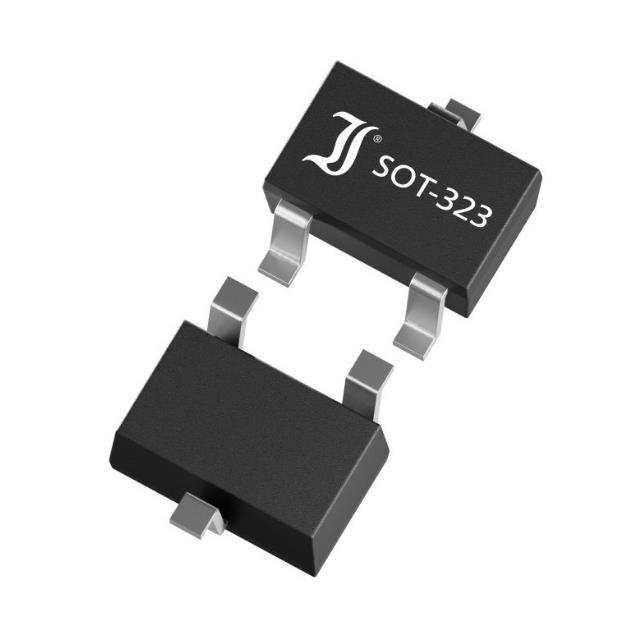

DIODE ARR SCHOT 30V 200MA SOT323
| Part | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Supplier Device Package | Technology | Mounting Type | Voltage - Forward (Vf) (Max) @ If | Package / Case | Current - Average Rectified (Io) (per Diode) | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Reverse Leakage @ Vr | Speed | Speed | Diode Configuration | Reverse Recovery Time (trr) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Diotec Semiconductor | -55 °C | 125 °C 150 °C | SOT-323 | Schottky | Surface Mount | 1 V 650 mV | SC-70 SOT-323 | 200 mA | 30 V | 3 µA | 200 mA | Any Speed | 1 Pair Series Connection | 5 ns |
 Diotec Semiconductor | -55 °C | 150 °C | SOT-323 | Schottky | Surface Mount | 1 V | SC-70 SOT-323 | 200 mA | 30 V | 3 µA | 200 mA | Any Speed | 1 Pair Common Anode | 5 ns |
Diotec Semiconductor | -55 °C | 150 °C | SOT-323 | Schottky | Surface Mount | 1 V | SC-70 SOT-323 | 200 mA | 30 V | 3 µA | 200 mA | Any Speed | 1 Pair Common Cathode | 5 ns |
