R12842 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

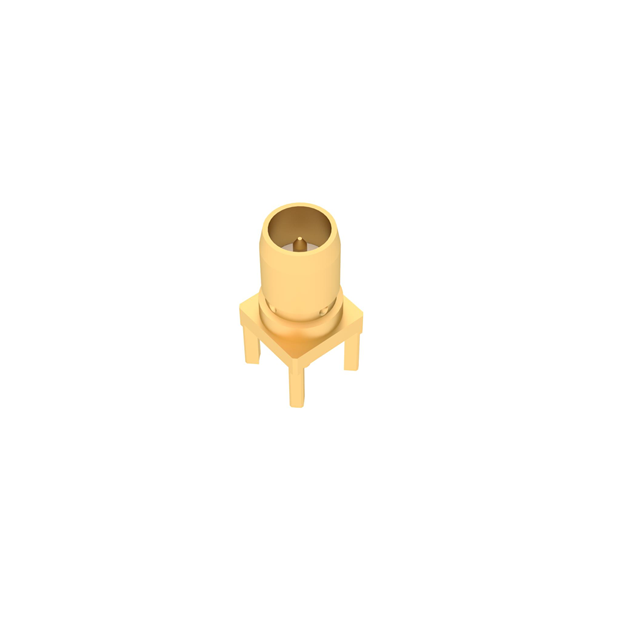

BMA / STRAIGHT MALE FOR PCB SOLD
| Part | Body Finish | Center Contact Plating | Voltage Rating | Dielectric Material | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Termination | Connector Type | Ingress Protection | Connector Style | Center Contact Material | Mounting Type | Shield Termination | Impedance | Frequency - Max [Max] | Number of Ports | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 350 VDC | Polytetrafluoroethylene (PTFE) | Stainless Steel | 1000 | -65 ░C | 125 °C | Snap-On | Solder | Plug Male Pin | IP54 - Dust Protected | BMA | Beryllium Copper | Through Hole | Solder | 50 Ohms | 22 GHz | 1 | Gold |
Radiall USA, Inc. | Gold | Gold | 350 VDC | Polytetrafluoroethylene (PTFE) | Brass | 500 | -65 ░C | 125 °C | Snap-On | Solder | Plug Male Pin | BMA | Brass | Through Hole | Solder | 50 Ohms | 22 GHz | 1 | Gold | |

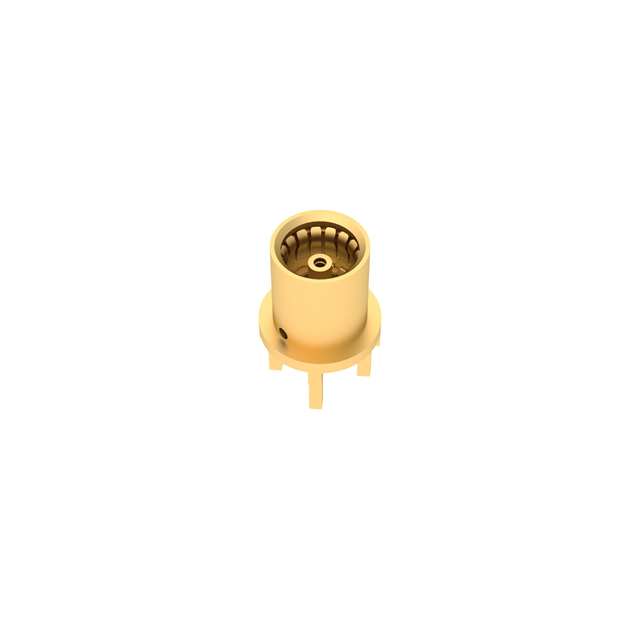

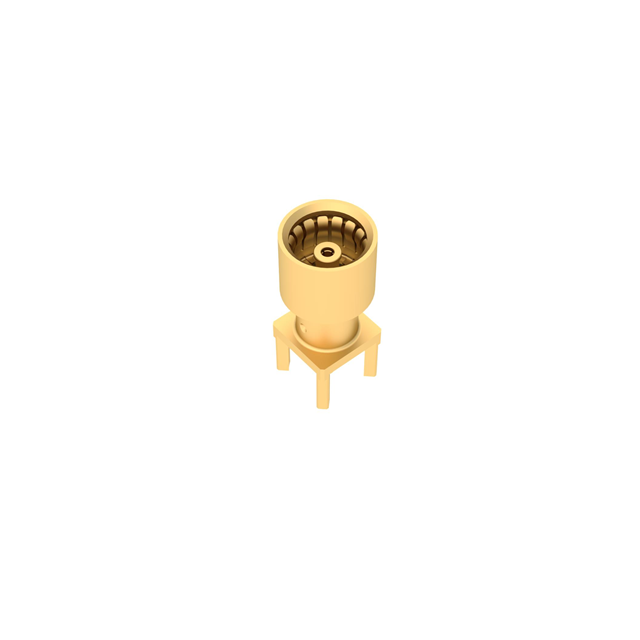

 Radiall USA, Inc. | Gold | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | 1000 | -65 ░C | 165 °C | Snap-On | Solder | Female Socket Jack | BMA | Beryllium Copper | Through Hole | Solder | 50 Ohms | 2 GHz | 1 | Gold | |
 Radiall USA, Inc. | Gold | Gold | 350 VDC | Polytetrafluoroethylene (PTFE) | Brass | 500 | -65 ░C | 125 °C | Snap-On | Solder | Plug Male Pin | BMA | Brass | Through Hole | Solder | 50 Ohms | 22 GHz | 1 | Gold | |
 Radiall USA, Inc. | Nickel | Gold | 350 VDC | Polytetrafluoroethylene (PTFE) | Brass | 1000 | -65 ░C | 165 °C | Snap-On | Solder | Female Socket Jack | BMA | Beryllium Copper | Through Hole | Solder | 50 Ohms | 22 GHz | 1 | Silver | |
Radiall USA, Inc. | Gold | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | 1000 | -65 ░C | 165 °C | Snap-On | Solder | Female Socket Jack | BMA | Beryllium Copper | Through Hole | Solder | 50 Ohms | 2 GHz | 1 | Gold | |
Radiall USA, Inc. | Nickel | Gold | 350 VDC | Polytetrafluoroethylene (PTFE) | Brass | 1000 | -65 ░C | 165 °C | Snap-On | Solder | Female Socket Jack | BMA | Beryllium Copper | Through Hole | Solder | 50 Ohms | 22 GHz | 1 | Silver | |
Radiall USA, Inc. | Tin | Gold | 350 VDC | Polytetrafluoroethylene (PTFE) | Brass | 500 | -65 ░C | 125 °C | Snap-On | Solder | Plug Male Pin | BMA | Brass | Surface Mount | Solder | 50 Ohms | 3 GHz | 1 | Silver |
