MK65FX1M0 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

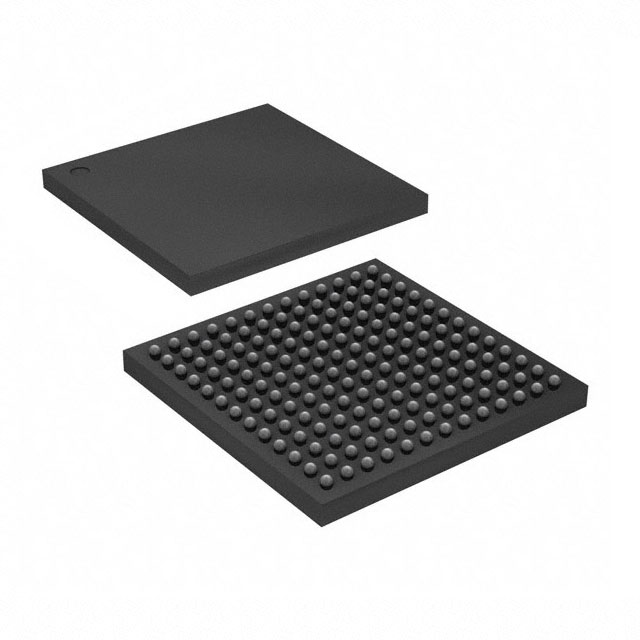

IC MCU 32BIT 1MB FLASH 169WLCSP
| Part | Data Converters | EEPROM Size | Number of I/O | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | RAM Size | Mounting Type | Package / Case | Program Memory Size | Oscillator Type | Core Size | Connectivity | Operating Temperature [Max] | Operating Temperature [Min] | Core Processor | Speed | Program Memory Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | A/D 2x16b D/A 2x12b | 4K x 8 | 116 I/O | 3.6 V | 1.71 V | 256 K | Surface Mount | 169-UFBGA WLCSP | 1 MB | Internal | 32-Bit Single-Core | CANbus EBI/EMI Ethernet I2C IrDA SD SPI UART/USART USB USB OTG | 85 °C | -40 °C | ARM® Cortex®-M4 | 180 MHz | FLASH | 169-WLCSP (5.5x5.63) |
 Freescale Semiconductor - NXP | A/D 2x16b D/A 2x12b | 4K x 8 | 116 I/O | 3.6 V | 1.71 V | 256 K | Surface Mount | 169-LFBGA | 1 MB | Internal | 32-Bit Single-Core | CANbus EBI/EMI Ethernet I2C IrDA SD SPI UART/USART USB USB OTG | 105 °C | -40 °C | ARM® Cortex®-M4 | 180 MHz | FLASH | 169-MAPBGA (9x9) |
