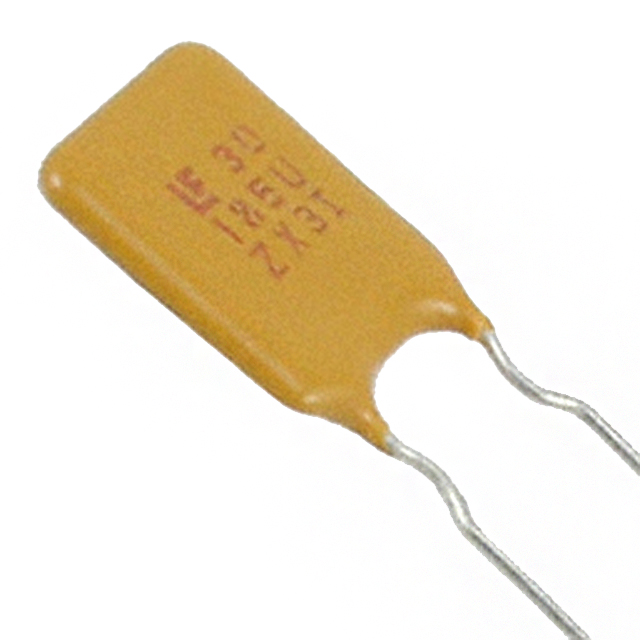

30R185 Series

PTC 30V POLYFUSE RADIAL LEADS 1.85A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PTC 30V POLYFUSE RADIAL LEADS 1.85A

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Resistance - Initial (Ri) (Min) [Min]	Lead Spacing	Lead Spacing	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Package / Case	Voltage - Max [Max]	Type	Approval Agency	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]
Littelfuse/Commercial Vehicle Products 30R185UU	0.618 in	15.7 mm	3 mm	0.118 in	0.402 in	10.2 mm	Through Hole	30 mOhms	5.1 mm	0.201 in	1.85 A	85 °C	-40 °C	8.7 s	Disc Radial	30 V	Polymeric	cURus TUV	3.7 A	90 mOhms	40 A

Catalog

PTC 30V POLYFUSE RADIAL LEADS 1.85A

Key Features

• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements

• Fast time-to-trip

• Lead-free, halogen-free, and RoHS compliant

Description

The 30R series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred.
