M24308/24 Series

Catalog

CONN D-SUB PLUG 15POS VERT SLDR

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Color	Contact Finish	Flange Feature	Connector Style	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Contact Material	Current Rating (Amps)	Contact Type	Connector Type	Shell Size, Connector Layout	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]

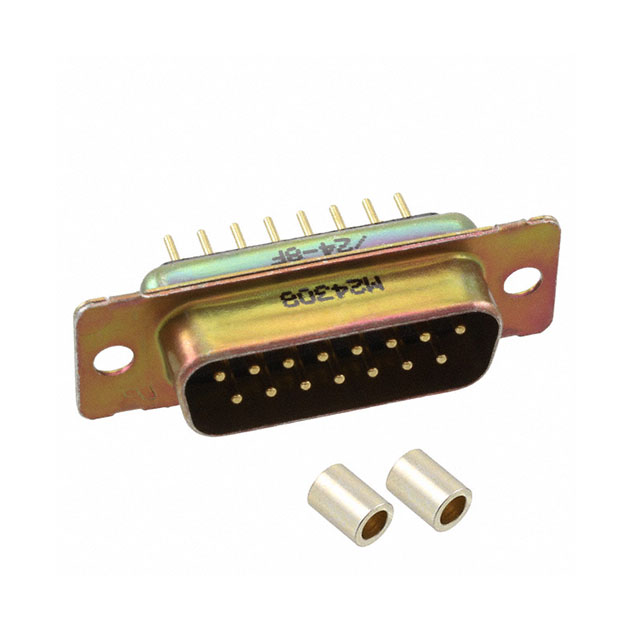

TE Connectivity Aerospace, Defense and Marine M24308/24-8F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins Plug	2	15	-55 °C	125 °C	Solder

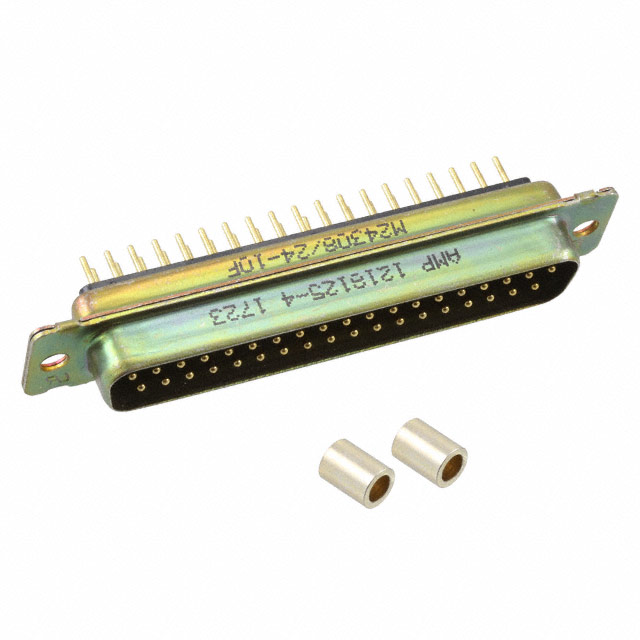

TE Connectivity Aerospace, Defense and Marine M24308/24-10F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins Plug		37	-55 °C	125 °C	Solder	4 (DC C)

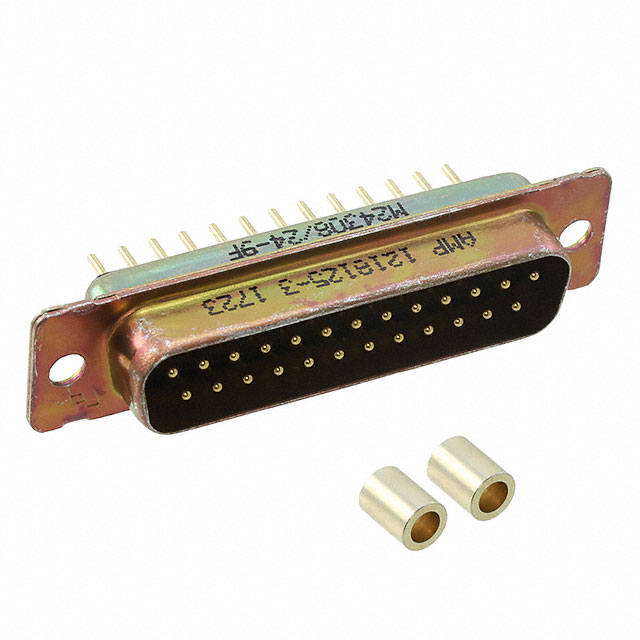

TE Connectivity Aerospace, Defense and Marine M24308/24-9F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins Plug			-55 °C	125 °C	Solder		B DB	3

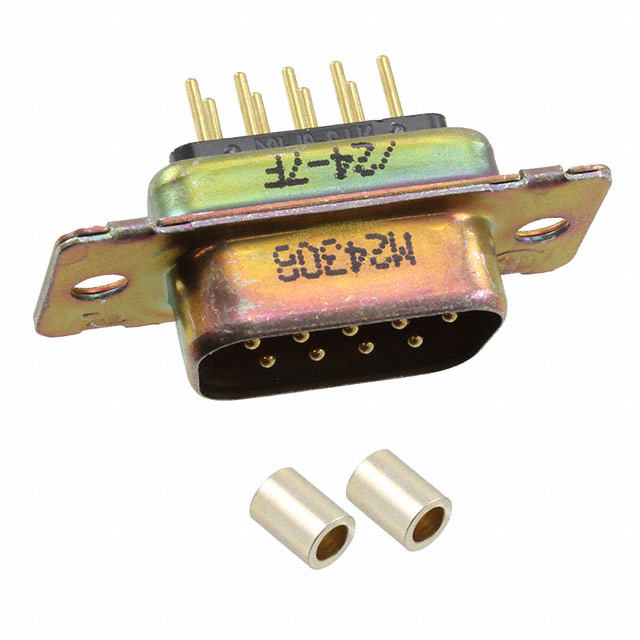

TE Connectivity Aerospace, Defense and Marine M24308/24-7F	50 µin	1.27 µm	Through Hole	2	Black	Gold	Housing/Shell (Unthreaded)	D-Sub	Steel	Cadmium Plated	Brass	5 A	Signal	Male Pins Plug		9	-55 °C	125 °C	Solder		DE E	1
