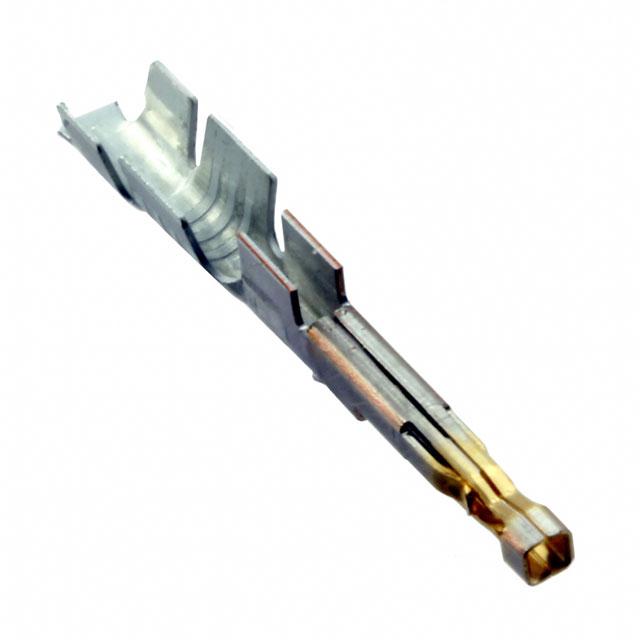

172253 Series

Manufacturer: Molex

Catalog

CONTACT, ULTRA-FIT 172253 SERIES, SOCKET, CRIMP, 16 AWG, TIN PLATED CONTACTS

Part	Contact Finish Thickness	Contact Finish Thickness	Type	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish

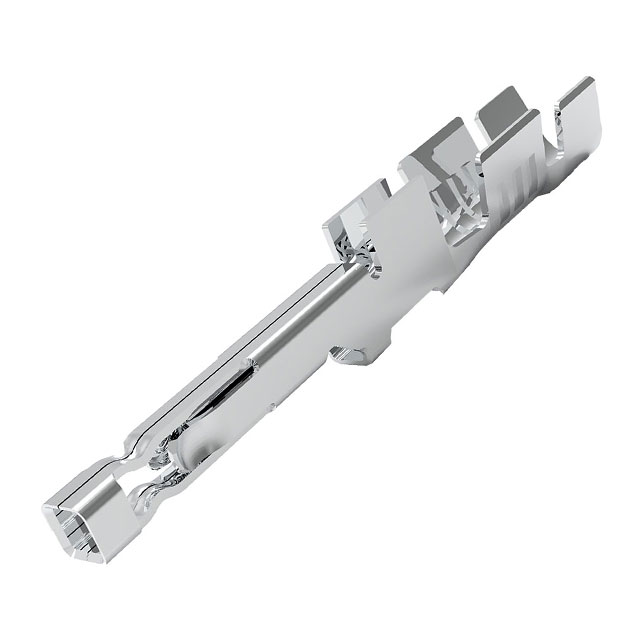

Molex 1722537023	40 Áin	1.02 Ám	Power	Crimp	16 AWG	18 AWG	Socket	Tin
Molex 1722536111	15 µin	0.38 µm	Stamped	Crimp	19.5 AWG	22 AWG	Socket	Gold
Molex 1722531111	15 µin	0.38 µm	Stamped	Crimp	19.5 AWG	22 AWG	Socket	Gold
Molex 1722533012	30 Áin	0.76 Ám	Power	Crimp	16 AWG	18 AWG	Socket	Gold
Molex 1722536112	30 Áin	0.76 Ám	Power	Crimp	19.5 AWG	22 AWG	Socket	Gold
Molex 1722536012	30 Áin	0.76 Ám	Power	Crimp	16 AWG	18 AWG	Socket	Gold

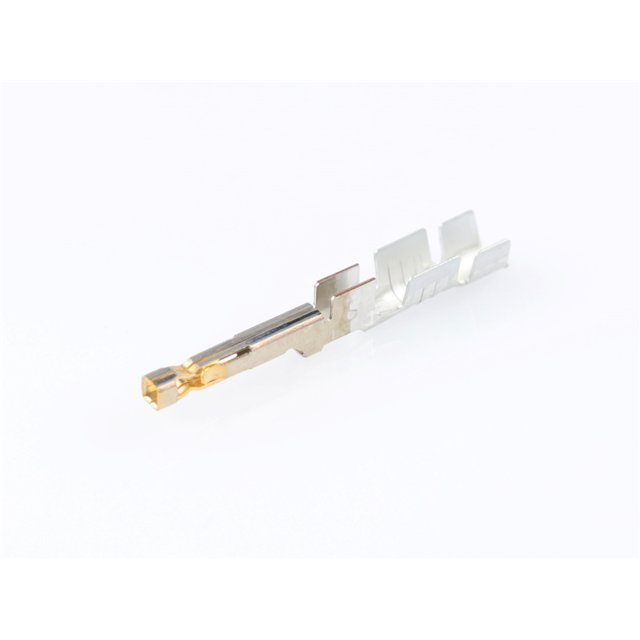

Molex 1722536011	15 µin	0.38 µm	Stamped	Crimp	16 AWG	18 AWG	Socket	Gold
Molex 1722537123	40 Áin	1.02 Ám	Power	Crimp	19.5 AWG	22 AWG	Socket	Tin
Molex 1722533023	60 µin	1.52 µm	Power	Crimp	16 AWG	18 AWG	Socket	Tin
