1571983 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Actuator Level	Termination Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Current Rating (Amps)	Contact Finish	Electrical Life	Voltage Rating	Length	Length	Number of Positions	Features	Body Material	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mounting Type	Length [custom]	Length [custom]	Length [x]	Length [x]

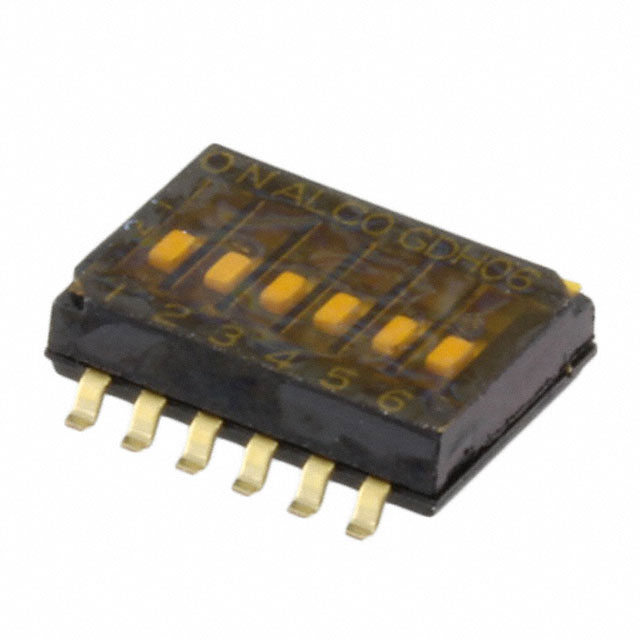

TE Connectivity Raychem Cable Protection 1571983-9	1000 Cycles	Flush Recessed	Gull Wing	Copper Alloy	-30 ░C	85 °C	SPST	Slide (Standard)	25 mA	Gold	1000 Cycles	24 VDC	8.75 mm	0.344 "	6	Tape Seal	Polyphenylene Sulfide (PPS)	0.091 in	2.3 mm	0.05 in	1.27 mm	Surface Mount

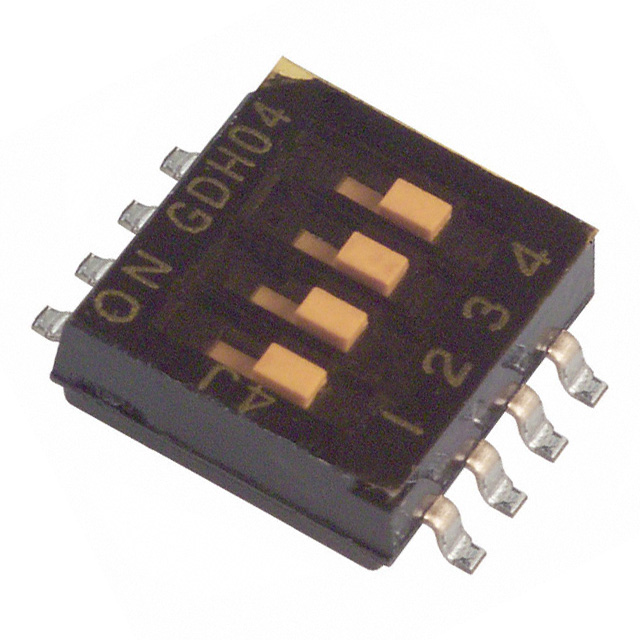

TE Connectivity Raychem Cable Protection 1571983-4	1000 Cycles	Flush Recessed	Gull Wing	Copper Alloy	-30 ░C	85 °C	SPST	Slide (Standard)	25 mA	Gold	1000 Cycles	24 VDC			4	Tape Seal	Polyphenylene Sulfide (PPS)	0.091 in	2.3 mm	0.05 in	1.27 mm	Surface Mount	0.244 in	6.2 mm
TE Connectivity Raychem Cable Protection 1-1571983-0	1000 Cycles	Flush Recessed	Gull Wing	Copper Alloy	-30 ░C	85 °C	SPST	Slide (Standard)	25 mA	Gold	1000 Cycles	24 VDC			8	Tape Seal	Polyphenylene Sulfide (PPS)	0.091 in	2.3 mm	0.05 in	1.27 mm	Surface Mount			0.444 in	11.28 mm

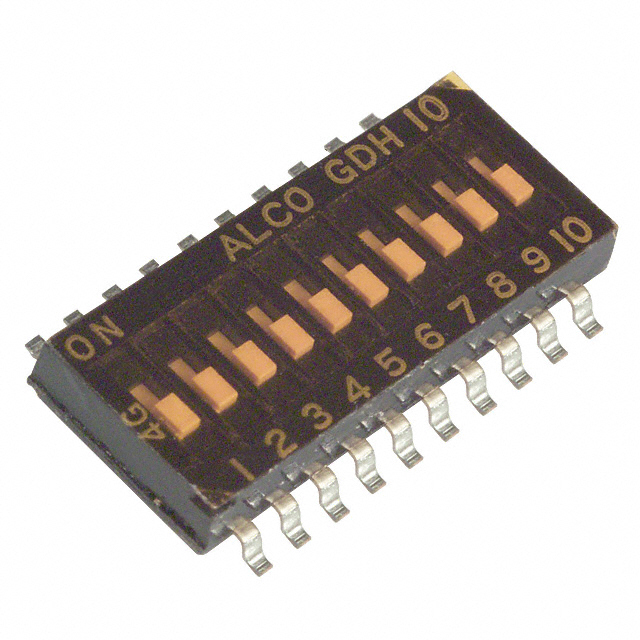

TE Connectivity Raychem Cable Protection 1-1571983-3	1000 Cycles	Flush Recessed	Gull Wing	Copper Alloy	-30 ░C	85 °C	SPST	Slide (Standard)	25 mA	Gold	1000 Cycles	24 VDC			10	Tape Seal	Polyphenylene Sulfide (PPS)	0.091 in	2.3 mm	0.05 in	1.27 mm	Surface Mount			0.544 in	13.82 mm
