PM324MBAO Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K

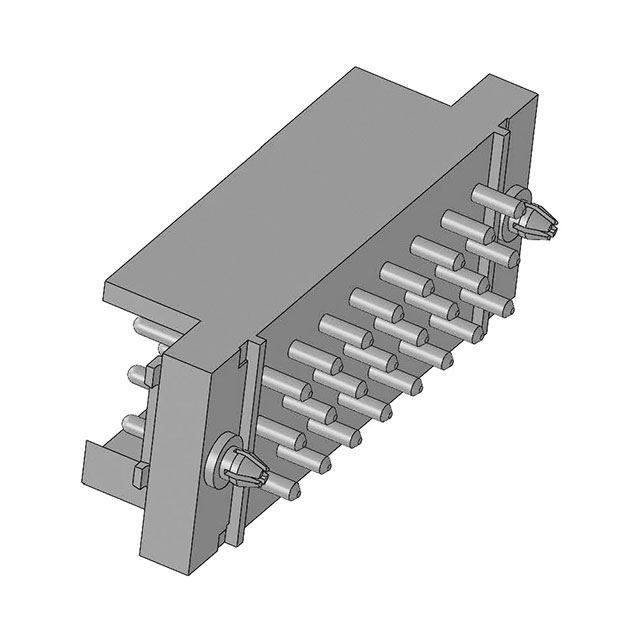

POWERMOD 3X24 PIN STRAIGHT PCB
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish - Mating | Termination | Voltage Rating | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Current Rating (Amps) | Connector Type | Number of Rows [custom] | Contact Type | Shrouding | Contact Material | Mounting Type | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Style | Number of Positions | Insulation Material | Pitch - Mating | Pitch - Mating | Insulation Height [custom] | Insulation Height [custom] | Contact Finish - Post [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Anderson Power Products, Inc. | 180 °C | -55 C | Board Lock | Gold | Solder | 600 V | All | Black | UL94 V-0 | 30 A | Header | 3 | Male Pin Power | Shrouded - 2 Wall | Copper Alloy | Through Hole | Circular | 0.197 in | 5 mm | Board to Board Cable | 24 | Polyphenylene Sulfide (PPS) | 0.197 " | 5 mm | 15.24 mm | 0.6 in | Tin Alloy | 3.81 mm | 0.15 in | 0.25 µm | 10 µin |
