A 28-LC Series
Manufacturer: Assmann WSW Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

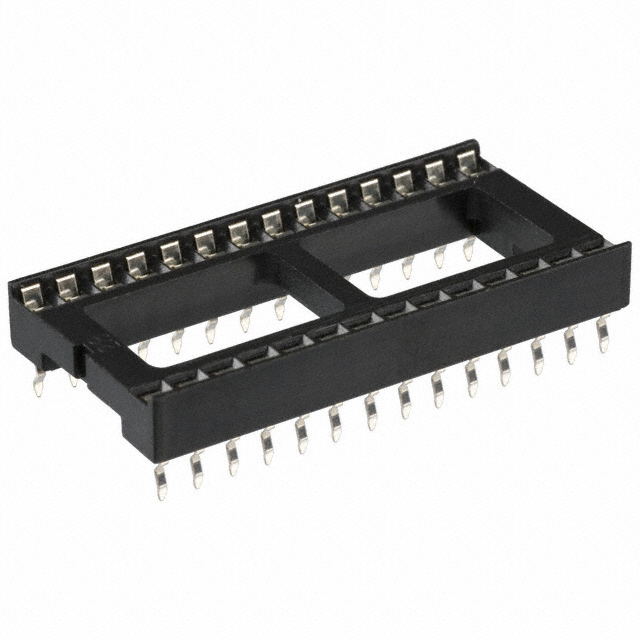

CONN IC DIP SOCKET 28POS TIN
| Part | Contact Finish - Post | Grid Columns | Number of Positions or Pins (Grid) | Grid Rows | Contact Finish - Mating | Pitch - Post | Pitch - Mating | Features | Contact Material - Post | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material - Mating | Housing Material | Termination | Row Spacing | Type | Material Flammability Rating | Current Rating | Termination Post Length | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Tin | 14 | 28 | 2 | Tin | 0.1 in | 0.1 in | Open Frame | Phosphor Bronze | Through Hole | -55 °C | 85 °C | Phosphor Bronze | PBT Polybutylene Terephthalate | Solder | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | UL94 V-0 | 1 A | 0.124 in | 30 mOhm |
