725-014 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 14POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Mounting Type	Contact Type	Read Out	Number of Positions	Color	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Card Type	Number of Positions/Bay/Row	Gender	Termination Rows	Number of Rows
EDAC Inc. 725-014-525-201	2	Polyester Thermoplastic	2	Through Hole	Cantilever	Dual	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Non Specified - Dual Edge	7	Female

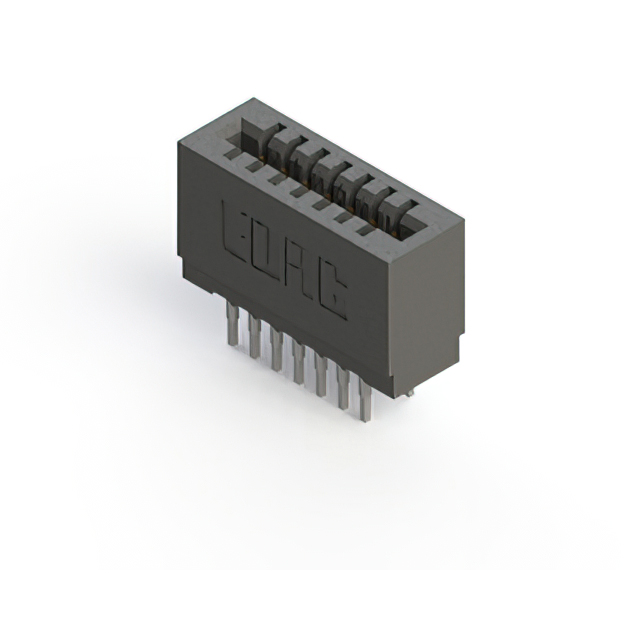

EDAC Inc. 725-014-540-201	2	Polyester Thermoplastic	2	Through Hole	Cantilever	Dual	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Non Specified - Dual Edge	7	Female

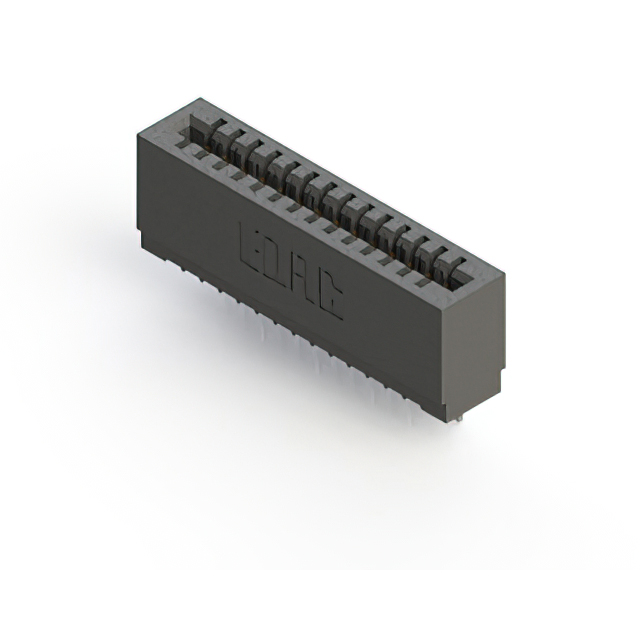

EDAC Inc. 725-014-540-101		Polyester Thermoplastic		Through Hole	Cantilever	Single	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Non Specified - Single Edge	14	Female	1	1

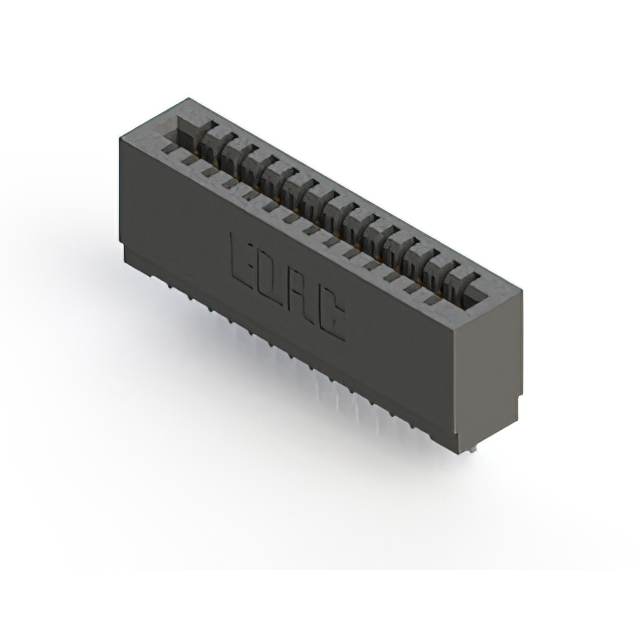

EDAC Inc. 725-014-522-101		Polyester Thermoplastic		Through Hole	Cantilever	Single	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Non Specified - Single Edge	14	Female	1	1
EDAC Inc. 725-014-560-201	2	Polyester Thermoplastic	2	Through Hole	Cantilever Make Before Break	Dual	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Non Specified - Dual Edge	7	Female

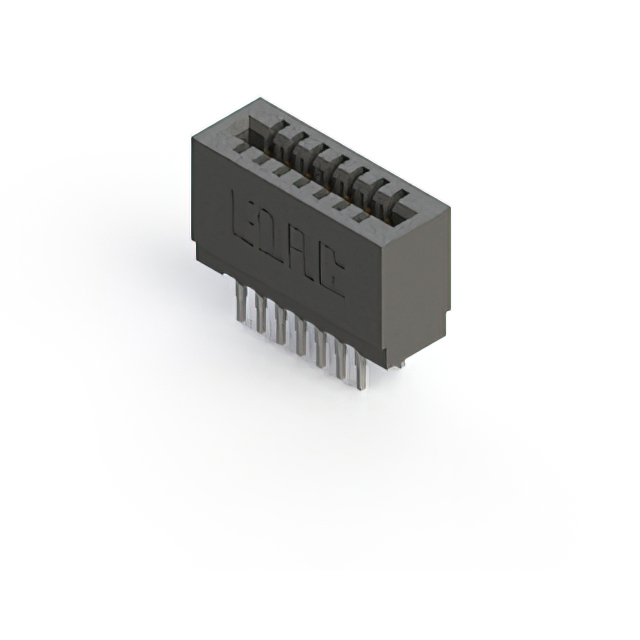

EDAC Inc. 725-014-541-201	2	Polyester Thermoplastic	2	Through Hole	Cantilever	Dual	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Non Specified - Dual Edge	7	Female

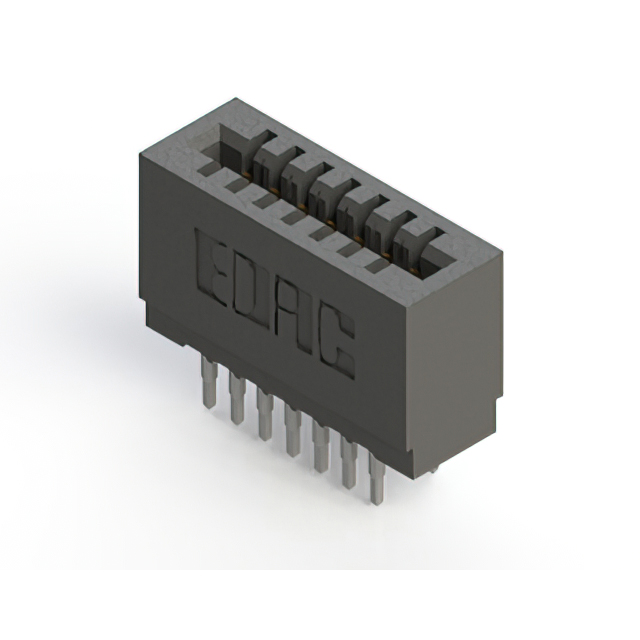

EDAC Inc. 725-014-520-201	2	Polyester Thermoplastic	2	Through Hole	Cantilever	Dual	14	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Non Specified - Dual Edge	7	Female
