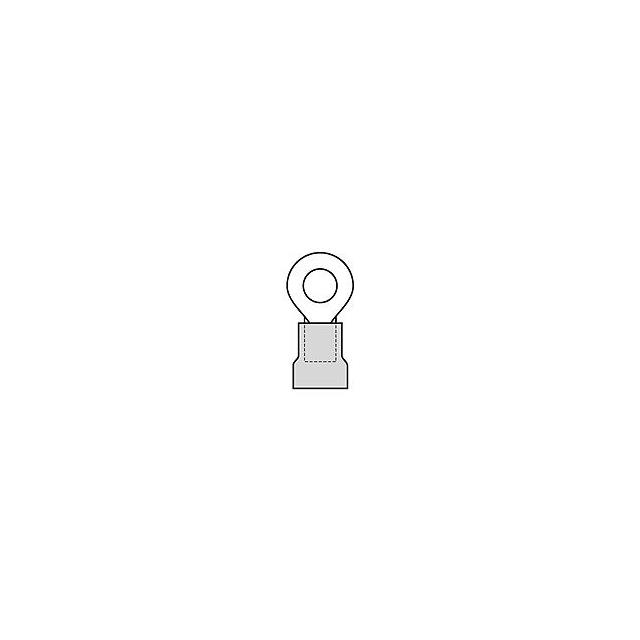

InsulKrimp Ring Tongue Terminal for 16-14 AWG Heavy Duty Wire
InsulKrimp Ring Tongue Terminal for 16-14 AWG Heavy Duty Wire
| Part | Stud/Tab Size | Insulation | Termination | Thickness | Thickness | Contact Finish | Contact Material | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Material - Insulation | Color | Width - Outer Edges [x] | Width - Outer Edges [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.5 Stud | Insulated | Crimp | 50 mils | 0.05 in | Electro-Tin | Copper | 1.571 in | 39.9 mm | 6.4 mm | 0.252 in | Circular | 14 AWG | 16 AWG | Free Hanging (In-Line) | Poly-Vinyl Chloride (PVC) | Yellow | 0.76 " | 19.3 mm |
