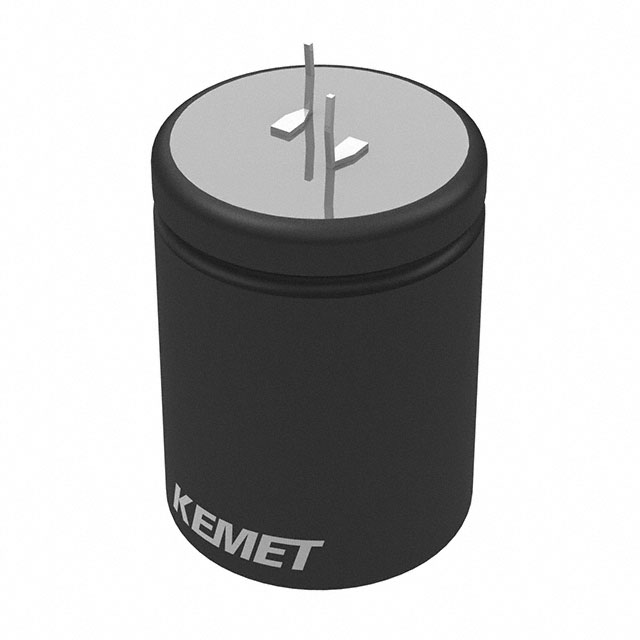

ALC70D Series

Manufacturer: KEMET

Catalog

CAP ALUMINUM LYTIC 20000UF 40V 20% (35 X 40MM) SNAP-IN 10MM 0.04 OHM 7.36A 15000H 85°C BAG

Part	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Applications	Capacitance	Ripple Current @ Low Frequency	Impedance	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated	Package / Case	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC70D203DD040	Polar	1.378 "	35 mm	20 %	General Purpose	20000 µF	7.36 A	33 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	40 V	Radial Can - Snap-In	40 mOhm	15000 Hrs	42 mm	1.654 in	9.03 A
KEMET ALC70D183EB040	Polar	1.575 in	40 mm	20 %	General Purpose	18000 µF	6.19 A	44 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	40 V	Radial Can - Snap-In	51 mOhm	18000 Hrs	32 mm	1.26 in	7.21 A
KEMET ALC70D561DD350	Polar	1.378 "	35 mm	20 %	General Purpose	560 µF	2.53 A	133 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	350 V	Radial Can - Snap-In	253 mOhm	15000 Hrs	42 mm	1.654 in	5.93 A
KEMET ALC70D271EB500	Polar	1.575 in	40 mm	20 %	General Purpose	270 µF	1.86 A	545 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	500 V	Radial Can - Snap-In	765 mOhm	18000 Hrs	32 mm	1.26 in	3.74 A
KEMET ALC70D361BB200	Polar	0.984 "	25 mm	20 %	General Purpose	360 µF	1.33 A	382 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	200 VDC	Radial Can - Snap-In	613 mOhm	10000 Hrs	32 mm	1.26 in	2.61 A
KEMET ALC70D302EH200	Polar	1.575 in	40 mm	20 %	General Purpose	3000 µF	5.67 A	53 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	200 VDC	Radial Can - Snap-In	81 mOhm	18000 Hrs			9.3 A	62 mm	2.441 in
KEMET ALC70D102EH450	Polar	1.575 in	40 mm	20 %	General Purpose	1000 µF	4.11 A	85 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	450 V	Radial Can - Snap-In	148 mOhm	18000 Hrs			8.53 A	62 mm	2.441 in
KEMET ALC70D683EL040	Polar	1.575 in	40 mm	20 %	General Purpose	68000 µF	12.93 A	14 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	40 V	Radial Can - Snap-In	16 mOhm	18000 Hrs			14.36 A			3.228 in	82 mm
KEMET ALC70D471EB350	Polar	1.575 in	40 mm	20 %	General Purpose	470 µF	2.29 A	166 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	350 V	Radial Can - Snap-In	312 mOhm	18000 Hrs	32 mm	1.26 in	5 A
KEMET ALC70D911EL550	Polar	1.575 in	40 mm	20 %	General Purpose	910 µF	3.87 A	421 mOhms	0.394 in	10 mm	85 °C	-40 C	Through Hole	550 V	Radial Can - Snap-In	484 mOhm	18000 Hrs			5.88 A			3.228 in	82 mm
