430078 Series

Catalog

CP14-127-06-L2-W4.5

Part	Features	Voltage - Max [Max]	Number of Stages	Delta Tmax @ Th	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Resistance	Height [z]	Current - Max [Max]	Qmax @ Th
Laird Thermal Systems, Inc. 430078-553	Lapped Lead Wires	14.5 V	1	67 °C	80 °C	39.9 mm	39.9 mm	Square	2.25 Ohms	3.81 mm	6 A	51.4 W
Laird Thermal Systems, Inc. 430078-556	Lead Wires Sealed - Epoxy	14.5 V	1	67 °C	80 °C	39.9 mm	39.9 mm	Square	2.25 Ohms	3.81 mm	6 A	51.4 W

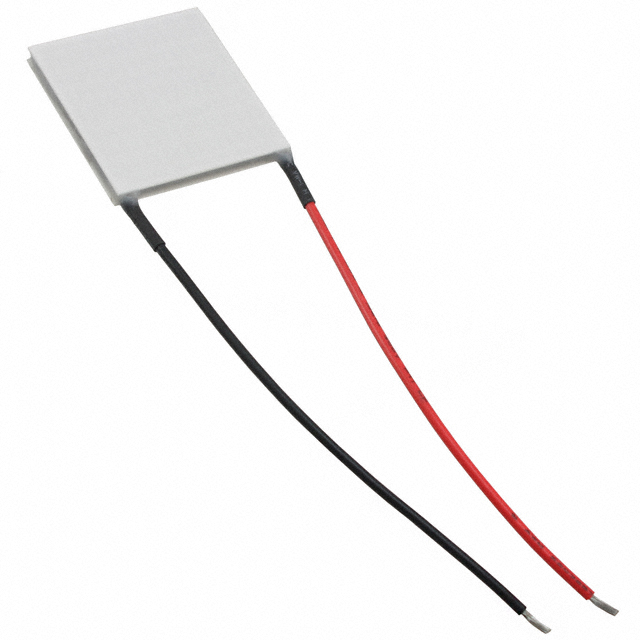

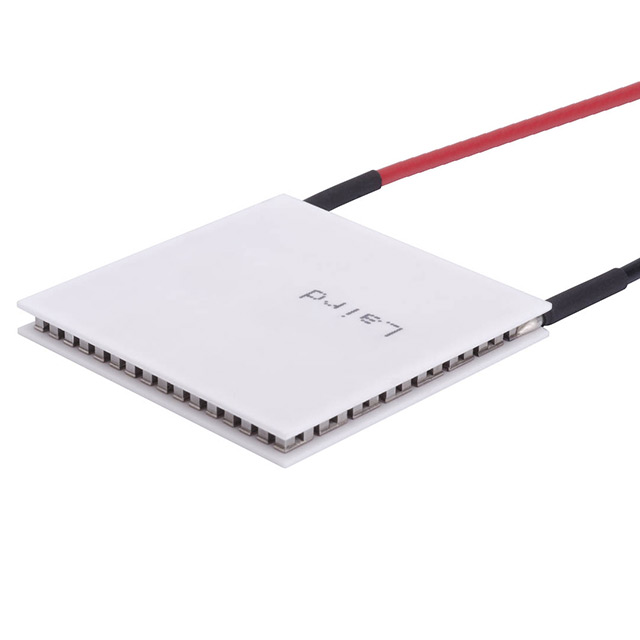

Laird Thermal Systems, Inc. 430078-525	Lead Wires Sealed - Epoxy	14.5 V	1	67 °C	80 °C	39.88 mm	39.88 mm		2.25 Ohms	3.81 mm	6 A	51.4 W
