JN1HS10P Series

Catalog

CONN RCPT HSG MALE 10POS INLINE

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Note	Contact Shape	Type	Orientation	Shell Size - Insert	Fastening Type	Ingress Protection	Number of Positions	Insert Material	Shell Material	Contact Type	Features	Mounting Type	Contact Size	Connector Type	Voltage Rating	Primary Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Backshell Material, Plating	Color	Current Rating (Amps)	Contact Material
JAE Electronics JN1HS10PL3S	Black	-20 ░C	125 °C	Unshielded	Contacts Not Included	Circular	For Male Pins	N (Normal)	S	Push-Twist	IP67 - Dust Tight Waterproof	10	Synthetic Resin	Synthetic Resin	Crimp	Backshell	Free Hanging (In-Line)	22	Receptacle Housing
JAE Electronics JN1HS10PLKS3	Black	-20 ░C	125 °C	Unshielded	Contacts Not Included	Circular	For Male Pins	N (Normal)	S	Push-Twist	IP67 - Dust Tight Waterproof	10	Synthetic Resin	Synthetic Resin	Crimp	Backshell	Free Hanging (In-Line)	22	Receptacle Housing
JAE Electronics JN1HS10PL3	Black	-20 ░C	125 °C	Unshielded	Contacts Not Included	Circular	For Male Pins	N (Normal)	S	Push-Twist	IP67 - Dust Tight Waterproof	10	Synthetic Resin	Synthetic Resin	Crimp	Backshell	Free Hanging (In-Line)	22	Receptacle Housing

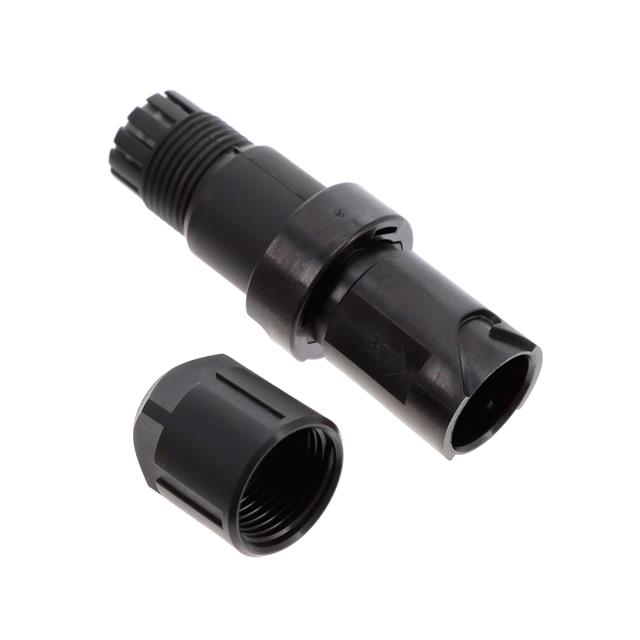

JAE Electronics JN1HS10PL2	Black	-20 ░C	125 °C	Unshielded	Contacts Not Included	Circular	For Male Pins	N (Normal)	S	Push-Twist	IP67 - Dust Tight Waterproof	10	Synthetic Resin	Synthetic Resin	Crimp	Backshell	Free Hanging (In-Line)	22	Receptacle Housing
JAE Electronics JN1HS10PLKS2		-20 ░C	125 °C					N (Normal)	S	Push-Twist	IP67 - Dust Tight Waterproof	10		Synthetic Resin		Backshell	Free Hanging (In-Line)		Receptacle Male Pins	200 VAC	Plastic	Crimp	3.9 µin	0.099 µm	Gold	Synthetic Resin	Black	3 A	Copper Alloy

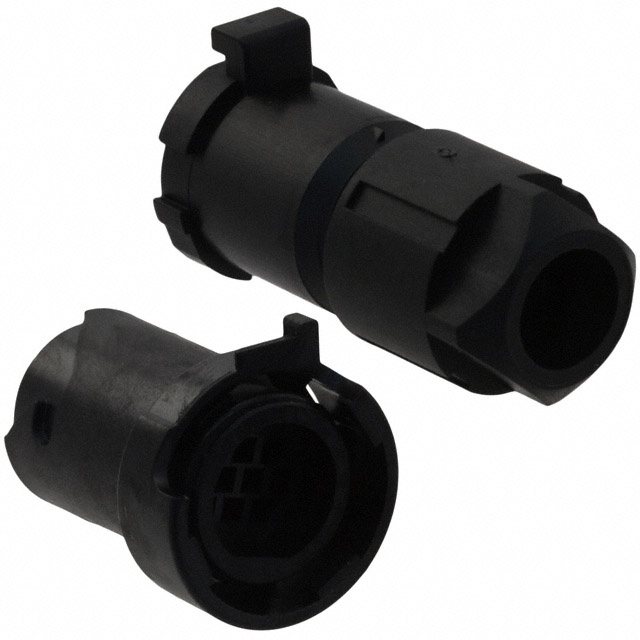

JAE Electronics JN1HS10PL1	Black	-20 ░C	125 °C	Unshielded	Contacts Not Included	Circular	For Male Pins	N (Normal)	S	Push-Twist	IP67 - Dust Tight Waterproof	10	Synthetic Resin	Synthetic Resin	Crimp	Backshell	Free Hanging (In-Line)	22	Receptacle Housing
