305-050 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 50POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Flange Feature	Color	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Read Out	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Card Type	Gender	Contact Material	Number of Positions	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Finish	Features	Flange Feature [diameter]	Flange Feature [diameter]

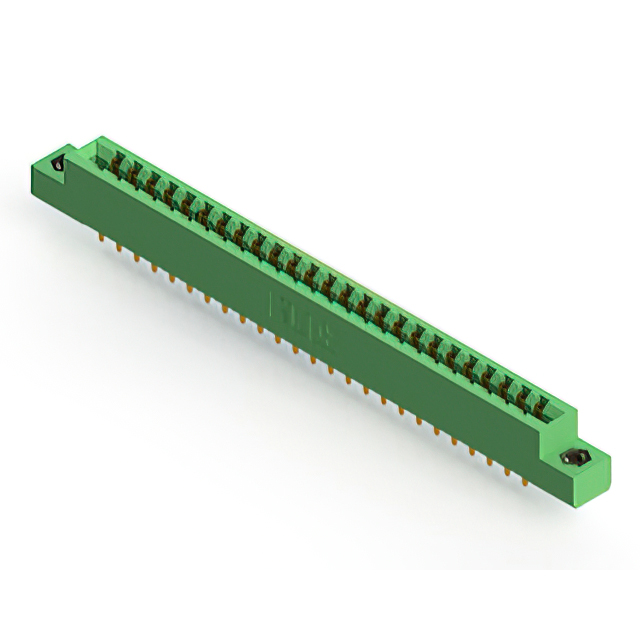

EDAC Inc. 305-050-521-208	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold

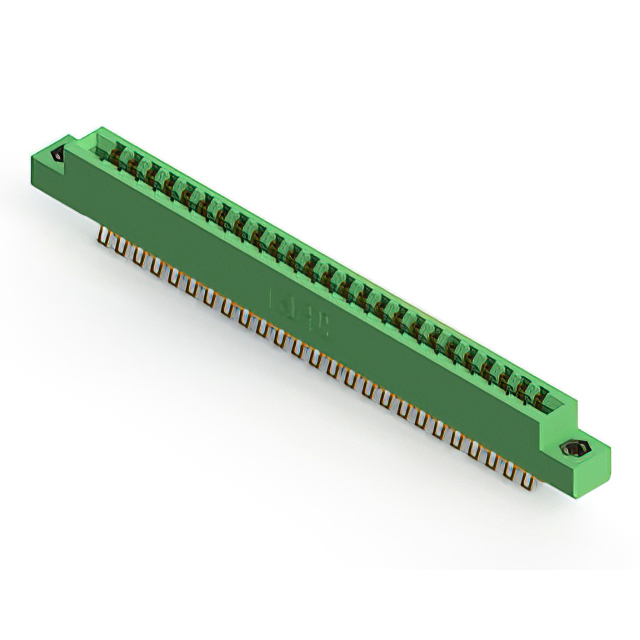

EDAC Inc. 305-050-555-207	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold	Card Extender
EDAC Inc. 305-050-556-558	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold	Card Extender Card Guides

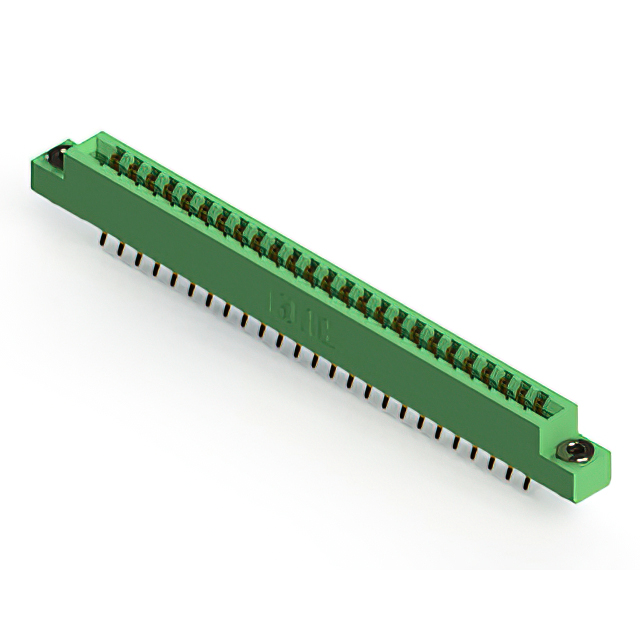

EDAC Inc. 305-050-556-203	2	Polyester Thermoplastic	Floating Bobbin Flush Mount	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold	Card Extender	0.116 "	2.95 mm

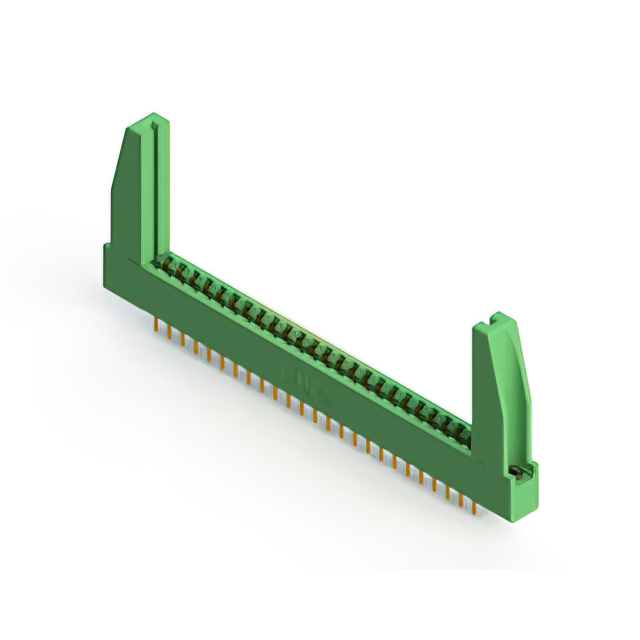

EDAC Inc. 305-050-520-578	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold

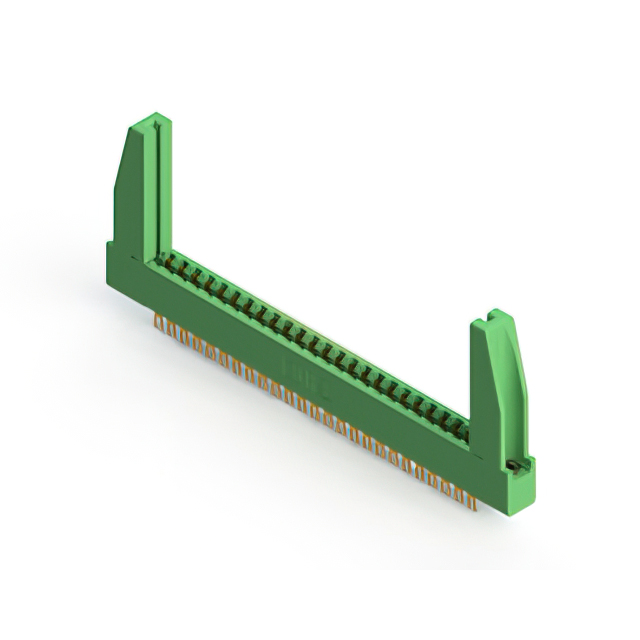

EDAC Inc. 305-050-500-578	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Panel Mount	Solder Eyelet(s)	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold

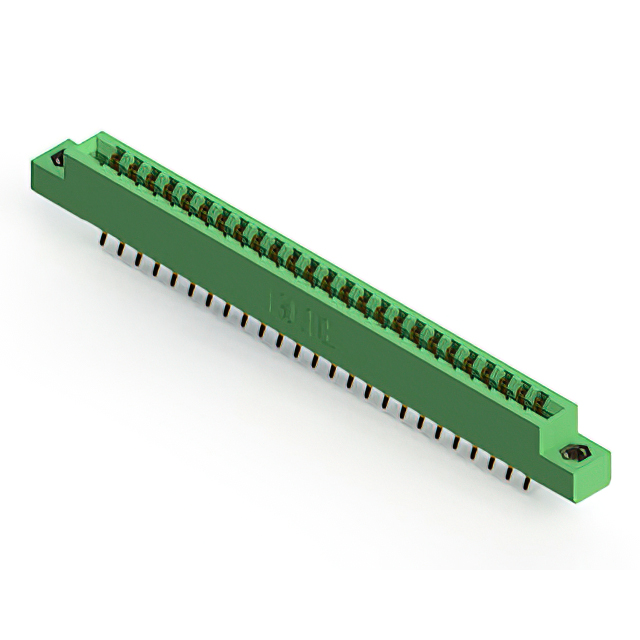

EDAC Inc. 305-050-556-507	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold	Card Extender

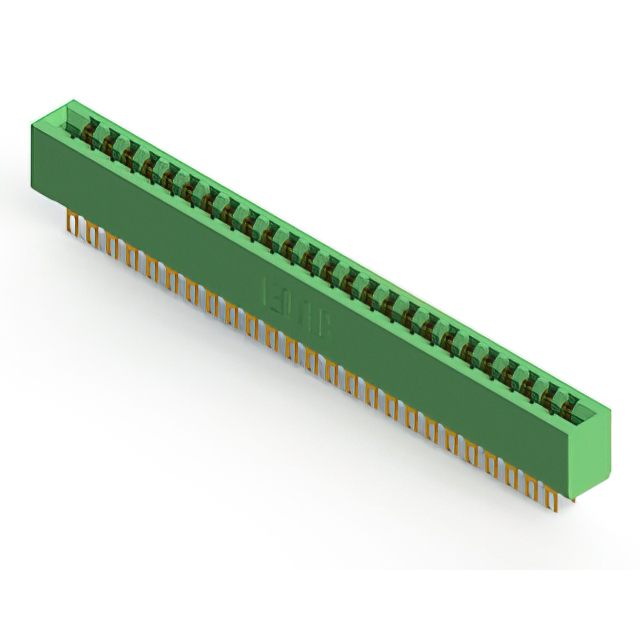

EDAC Inc. 305-050-500-501	2	Polyester Thermoplastic		Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Free Hanging (In-Line)	Solder Eyelet(s)	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold

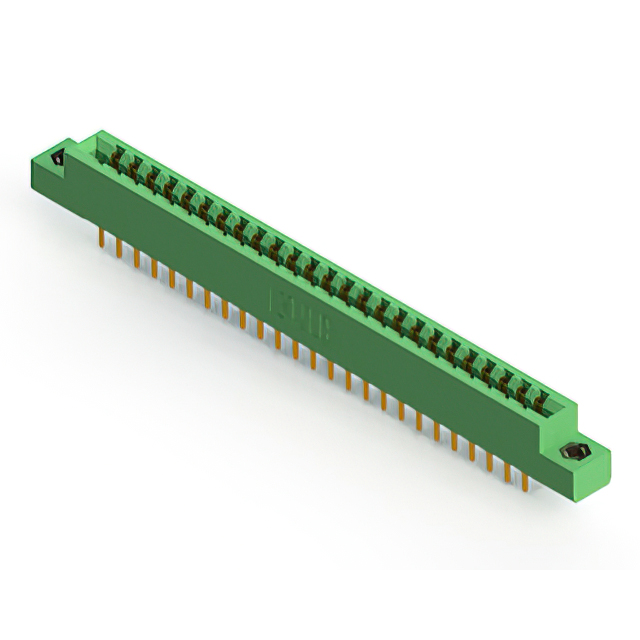

EDAC Inc. 305-050-520-207	2	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold

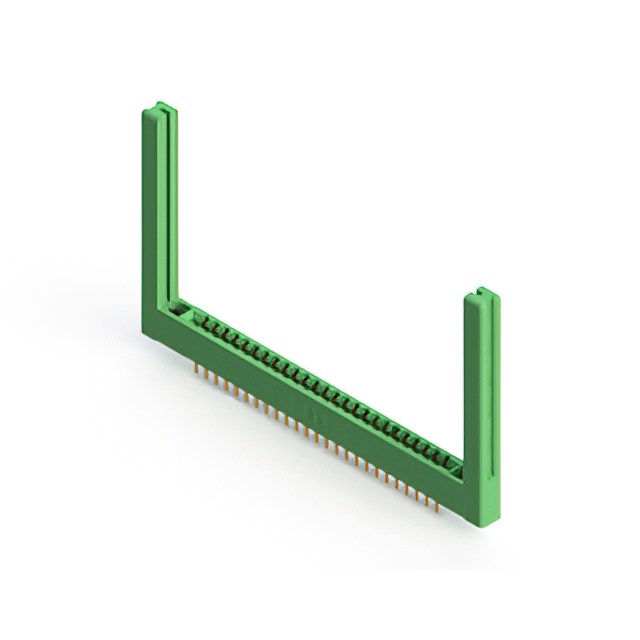

EDAC Inc. 305-050-520-258	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Green	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Dual	Semi Bellows	-40 C	105 ░C	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	Copper Alloy	50	2	25	Gold
