CPH5901 Series

N-Channel JFET and NPN Bipolar Transistor, 15V, 6 to 20mA, 50V, 150mA, Composite type CPH5

Catalog

N-Channel JFET and NPN Bipolar Transistor, 15V, 6 to 20mA, 50V, 150mA, Composite type CPH5

Part	Applications	Mounting Type	Transistor Type	Voltage - Rated	Package / Case	Supplier Device Package

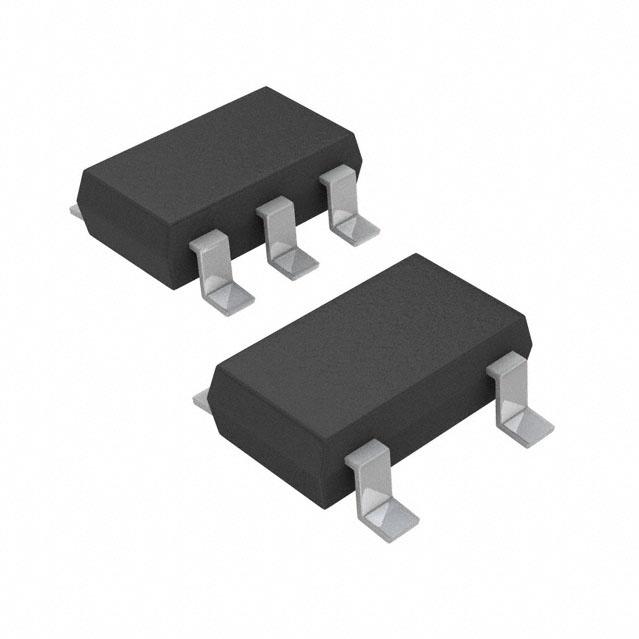

ON Semiconductor CPH5901F-TL-E	Amplifier	Surface Mount	NPN + FET	50 VDC	SOT-23-5 Thin TSOT-23-5	5-CPH

N-Channel JFET and NPN Bipolar Transistor, 15V, 6 to 20mA, 50V, 150mA, Composite type CPH5

• Composite type with J-FET and NPN transistors contained in the CPH5 package, improving the mountingeffi ciency greatly

• The CPH5901 is formed with two chips, being equivalent to the 2SK932 and the other the 2SC4639, placed in one package

• Common drain and emitter

CPH5901 is N-Channel JFET and NPN Bipolar Transistor, 15V, 6 to 20mA, 50V, 150mA, Composite type CPH5.
