1571925 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

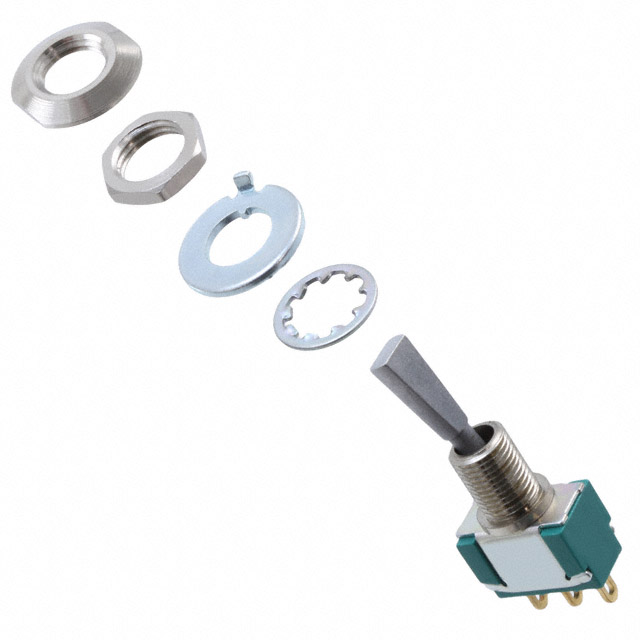

SWITCH TOGGLE DPDT 6A 125V
| Part | Termination Style | Electrical Life | Actuator Length [x] | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Bushing Thread | Features | Voltage Rating - AC | Actuator Type | Current Rating (Amps) | Illumination | Actuator Material | Circuit | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Solder Lug | 60000 Cycles | 12.32 mm | 28 V | 6.4 mm | -20 C | 80 C | 1/4-40 | Epoxy Sealed Terminals | 125 V | Flatted | 4 A 6 A | Non-Illuminated | Copper Alloy Chrome Plated | DPDT | On-Off-On |
 TE Connectivity Raychem Cable Protection | Solder Lug | 80000 Cycles | 12.32 mm | 28 V | 6.4 mm | -20 C | 80 C | 1/4-40 | Epoxy Sealed Terminals | 125 V | Flatted | 4 A 6 A | Non-Illuminated | Copper Alloy Chrome Plated | SPDT | On-On |
