116-83 Series
Manufacturer: Preci-Dip
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN IC DIP SOCKET 28POS GOLD
| Part | Mounting Type | Housing Material | Contact Finish - Mating | Row Spacing | Type | Contact Finish - Post | Features | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish Thickness - Mating | Contact Material - Mating | Pitch - Post | Grid Columns | Number of Positions or Pins (Grid) | Grid Rows | Termination | Pitch - Mating | Contact Material - Post | Current Rating | Material Flammability Rating | Termination Post Length | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 14 | 28 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |

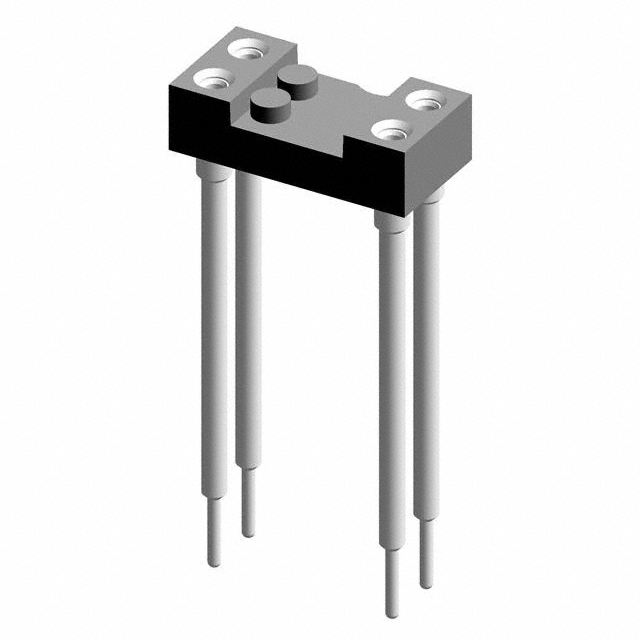

 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 2 | 4 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.4 in | 0.4" (10.16mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 10 | 20 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 4 | 8 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 11 | 22 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 20 | 40 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 21 | 42 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |

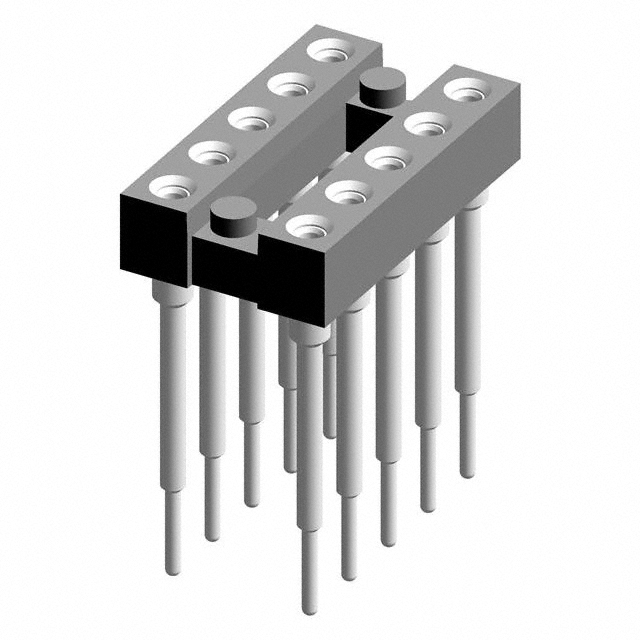

 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.2 in | 0.2" (5.08mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 5 | 10 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.4 in | 0.4" (10.16mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 10 | 20 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
 Preci-Dip | Through Hole | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Gold | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | Tin | Elevated Open Frame | 125 °C | -55 °C | 29.5 Ąin | Beryllium Copper | 0.1 in | 16 | 32 | 2 | Solder | 0.1 in | Brass | 1 A | UL94 V-0 | 0.125 in | 10 mOhm |
