DRV8824-Q1 Series

Automotive, 47-V, 1.6-A, bipolar stepper motor driver with current regulation & 1/32 microstepping

Catalog

Automotive, 47-V, 1.6-A, bipolar stepper motor driver with current regulation & 1/32 microstepping

Part	Utilized IC / Part	Type	Supplied Contents	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case [custom]	Package / Case	Package / Case [custom]	Current - Output	Motor Type - Stepper	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Interface	Qualification	Grade	Supplier Device Package	Applications

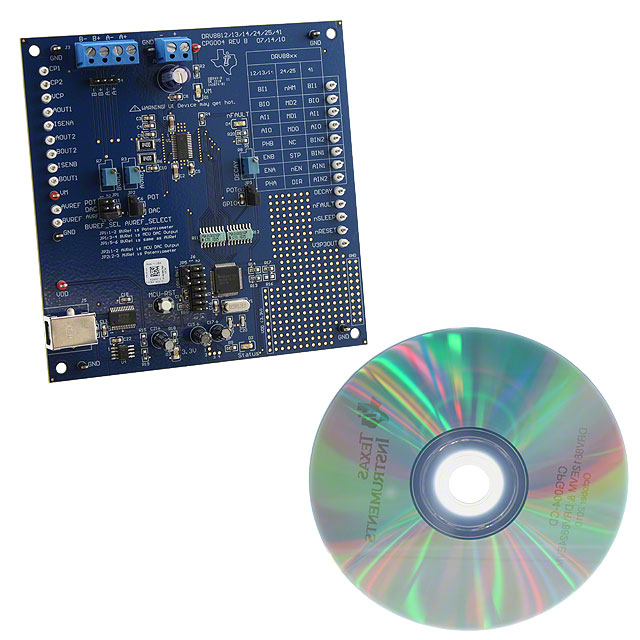

Texas Instruments DRV8824EVM	DRV8824	Power Management	Board(s) Cable(s)
Texas Instruments DRV8824QPWPRQ1				Surface Mount	45 V	8.2 V	4.4 mm	28-PowerTSSOP	0.173 "	1.6 A	Bipolar	Driver - Fully Integrated Control and Power Stage	45 V	8.2 V	Half Bridge (4)	150 °C	-40 °C	Power MOSFET	Logic	AEC-Q100	Automotive	28-HTSSOP
Texas Instruments DRV8824PWPR				Surface Mount	45 V	8.2 V	4.4 mm	28-PowerTSSOP	0.173 "	1.6 A	Bipolar	Driver - Fully Integrated Control and Power Stage	45 V	8.2 V	Half Bridge (4)	150 °C	-40 °C	Power MOSFET	Logic			28-HTSSOP	General Purpose
Texas Instruments DRV8824RHDR				Surface Mount	45 V	8.2 V		28-VFQFN Exposed Pad		1.6 A	Bipolar	Driver - Fully Integrated Control and Power Stage	45 V	8.2 V	Half Bridge (4)	150 °C	-40 °C	Power MOSFET	Logic			28-VQFN (5x5)	General Purpose
Texas Instruments DRV8824PWP				Surface Mount	45 V	8.2 V	4.4 mm	28-PowerTSSOP	0.173 "	1.6 A	Bipolar	Driver - Fully Integrated Control and Power Stage	45 V	8.2 V	Half Bridge (4)	150 °C	-40 °C	Power MOSFET	Logic			28-HTSSOP	General Purpose

Catalog

Automotive, 47-V, 1.6-A, bipolar stepper motor driver with current regulation & 1/32 microstepping

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to +125°CDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BPWM Microstepping Motor DriverBuilt-In Microstepping IndexerFive-Bit Winding Current Control Allows Up to32 Current LevelsLow MOSFET On-Resistance1.6-A Maximum Drive Current at 24 V, 25°CBuilt-In 3.3-V Reference Output8.2-V to 45-V Operating Supply Voltage RangeThermally Enhanced HTSSOP Surface Mount PackageQualified for Automotive ApplicationsAEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to +125°CDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BPWM Microstepping Motor DriverBuilt-In Microstepping IndexerFive-Bit Winding Current Control Allows Up to32 Current LevelsLow MOSFET On-Resistance1.6-A Maximum Drive Current at 24 V, 25°CBuilt-In 3.3-V Reference Output8.2-V to 45-V Operating Supply Voltage RangeThermally Enhanced HTSSOP Surface Mount Package

Description

The DRV8824 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8824 is capable of driving up to 1.6 A of current from each output (with proper heatsinking, at 24 V and 25°C). A simple STEP/DIR interface allows easy interfacing to controller circuits. Mode pins allow for configuration of the motor in full-step up to 1/32-step modes. Decay mode is configurable so that slow decay, fast decay, or mixed decay can be used. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal shutdown functions are provided for overcurrent, short circuit, undervoltage lockout, and over temperature. Fault conditions are indicated through the nFAULT pin. The DRV8824 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8824 is capable of driving up to 1.6 A of current from each output (with proper heatsinking, at 24 V and 25°C). A simple STEP/DIR interface allows easy interfacing to controller circuits. Mode pins allow for configuration of the motor in full-step up to 1/32-step modes. Decay mode is configurable so that slow decay, fast decay, or mixed decay can be used. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal shutdown functions are provided for overcurrent, short circuit, undervoltage lockout, and over temperature. Fault conditions are indicated through the nFAULT pin.
