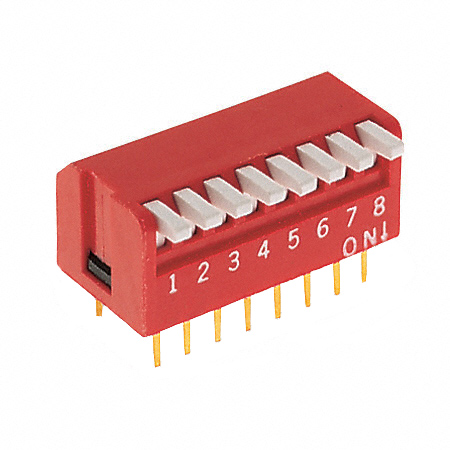

KAP1108 Series

Manufacturer: E-Switch

Catalog

SWITCH PIANO DIP SPST 0.025A 24V

Part	Length [x]	Length [x]	Mechanical Life	Body Material	Electrical Life	Height Above Board	Height Above Board	Circuit	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Level	Current Rating (Amps)	Termination Style	Voltage Rating	Contact Finish	Actuator Type	Pitch	Pitch	Features

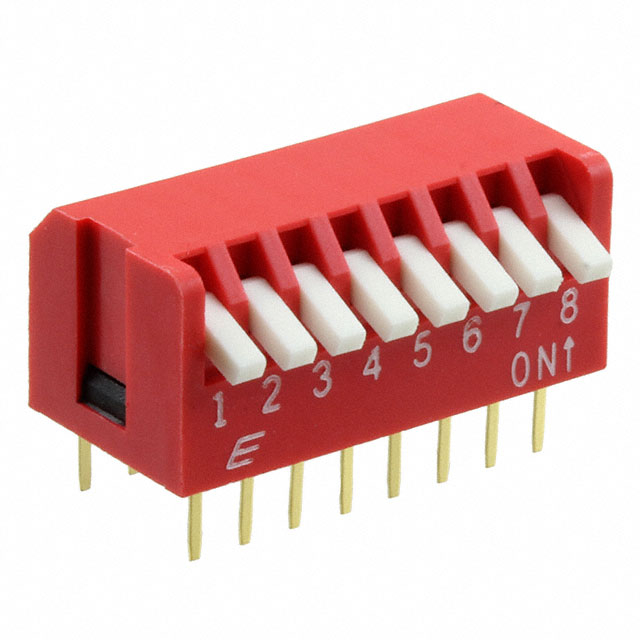

E-Switch KAP1108W	0.861 in	21.87 mm	2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps	10.2 mm	0.402 in	SPST	Phosphor Bronze	8	85 °C	-40 C	Right Angle Through Hole	Raised	25 mA	PC Pin	24 VDC	Gold	Piano	2.54 mm	0.1 "
E-Switch KAP1108E	0.861 in	21.87 mm	2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps	10.2 mm	0.402 in	SPST	Phosphor Bronze	8	85 °C	-40 C	Right Angle Through Hole	Raised	25 mA	PC Pin	24 VDC	Gold	Piano	2.54 mm	0.1 "
E-Switch KAP1108R	0.861 in	21.87 mm	2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps	10.2 mm	0.402 in	SPST	Phosphor Bronze	8	85 °C	-40 C	Right Angle Through Hole	Flush Recessed	25 mA	PC Pin	24 VDC	Gold	Piano	2.54 mm	0.1 "
E-Switch KAP1108ET	0.861 in	21.87 mm	2000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps	10.2 mm	0.402 in	SPST	Phosphor Bronze	8	85 °C	-40 C	Right Angle Through Hole	Raised	25 mA	PC Pin	24 VDC	Gold	Piano	2.54 mm	0.1 "	Tape Seal
