TL3320 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Actuator Material	Outline [y]	Outline [x]	Mounting Type	Termination Style	Actuator Orientation	Circuit	Contact Rating @ Voltage	Operating Force	Illumination	Switch Function	Actuator Length, Right Angle [x]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type

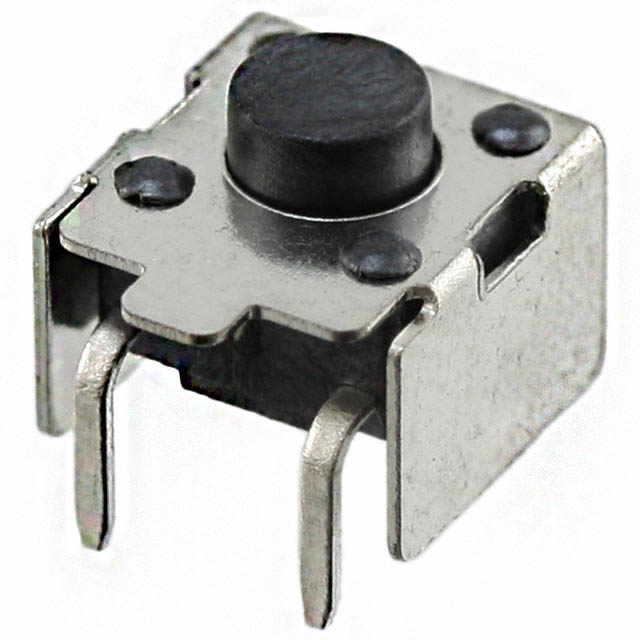

E-Switch TL3320BF130Q	80000 Cycles	0.25 mm	Polyamide (PA) Nylon	6.35 mm	7.1 mm	Right Angle Surface Mount	Gull Wing	Side Actuated	SPST-NO	0.05 A 12 VDC	130 gf	Non-Illuminated	Off-Mom	3.85 mm	-20 ░C	70 °C	Standard
E-Switch TL3320AF250Q	50000 Cycles	0.25 mm	Polyamide (PA) Nylon	6.35 mm	7.1 mm	Right Angle Surface Mount	Gull Wing	Side Actuated	SPST-NO	0.05 A 12 VDC	0.25 kgf	Non-Illuminated	Off-Mom	3.15 mm	-20 ░C	70 °C	Standard

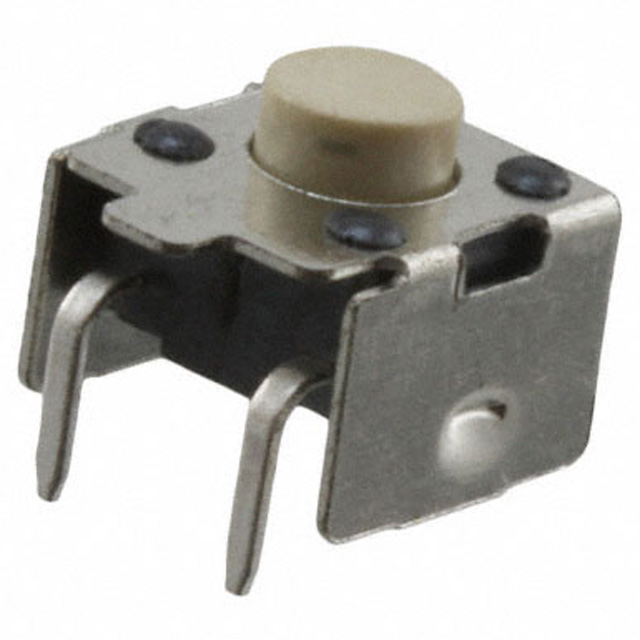

E-Switch TL3320BF250Q	50000 Cycles	0.25 mm	Polyamide (PA) Nylon	6.35 mm	7.1 mm	Right Angle Surface Mount	Gull Wing	Side Actuated	SPST-NO	0.05 A 12 VDC	0.25 kgf	Non-Illuminated	Off-Mom	3.85 mm	-20 ░C	70 °C	Standard

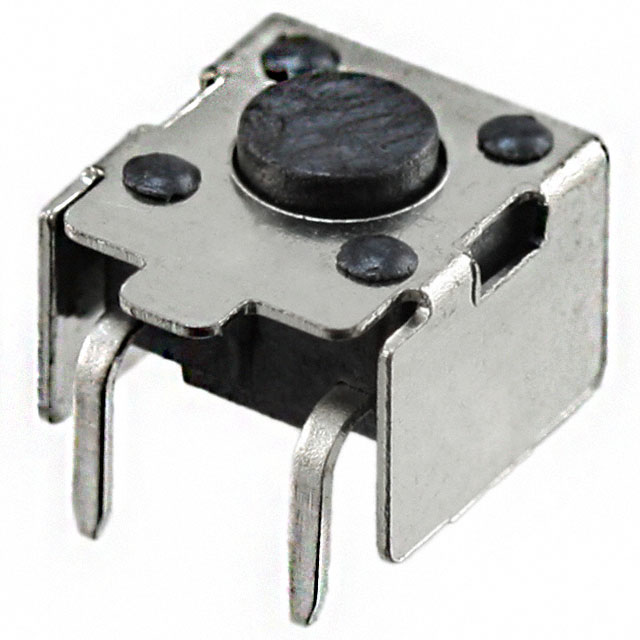

E-Switch TL3320AF130Q	80000 Cycles	0.25 mm	Polyamide (PA) Nylon	6.35 mm	7.1 mm	Right Angle Surface Mount	Gull Wing	Side Actuated	SPST-NO	0.05 A 12 VDC	130 gf	Non-Illuminated	Off-Mom	3.15 mm	-20 ░C	70 °C	Standard
E-Switch TL3320BF100Q	80000 Cycles	0.25 mm	Polyamide (PA) Nylon	6.35 mm	7.1 mm	Right Angle Surface Mount	Gull Wing	Side Actuated	SPST-NO	0.05 A 12 VDC	100 gf	Non-Illuminated	Off-Mom	3.85 mm	-20 ░C	70 °C	Standard
