CC1020 Series

Catalog

MODULE EVAL FOR CC1020 868MHZ

Part	Frequency	Type	Supplied Contents	For Use With/Related Products	Mounting Type	Frequency [Max]	Frequency [Min]	Data Rate (Max)	Modulation	Current - Transmitting [Min]	Current - Transmitting [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Package / Case	RF Family/Standard	Sensitivity	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Serial Interfaces	GPIO
Texas Instruments CC1020EMK-868	868 MHz	Transceiver ISM	Accessories Board(s)	Surface Mount IC
Texas Instruments CC1020-CC1070DK868	868 MHz 915 MHz	Receiver Transmitter	Accessories Board(s)	CC1020/1070 868MHZ

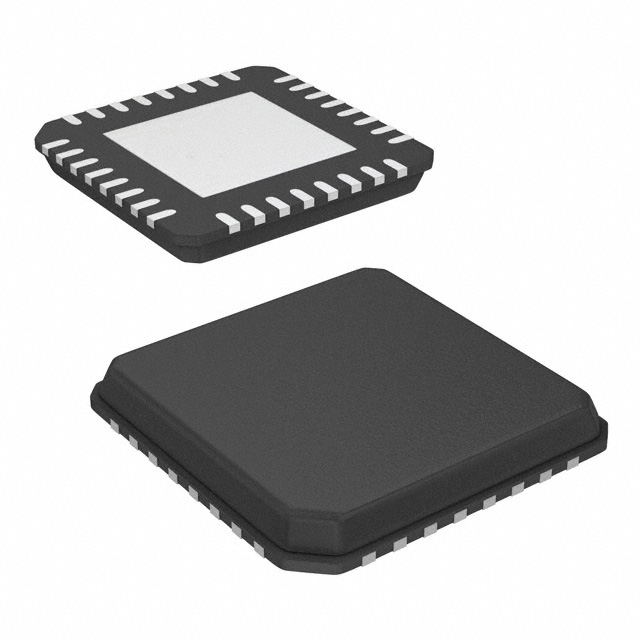

Texas Instruments CC1020RUZ		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART
Texas Instruments CC1020RSS		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART
Texas Instruments CC1020-RTB1		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART
Texas Instruments CC1020RHH		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART
Texas Instruments CC1020RSSR		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART	1
Texas Instruments CC1020-RTR1		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART
Texas Instruments CC1020EMK-433	433 MHz	Transceiver ISM	Accessories Board(s)	Surface Mount IC
Texas Instruments CC1020RSST		TxRx Only			Surface Mount	470 MHz 960 MHz	402 MHz 804 MHz	153.6 kBaud	FSK GFSK OOK	12.3 mA	27.1 mA	32-QFN (7x7)	85 °C	-40 °C	19.9 mA	32-VQFN Exposed Pad	General ISM < 1GHz	-118 dBm	10 dBm	2.3 V	3.6 V	SPI UART	1
