313SX5 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

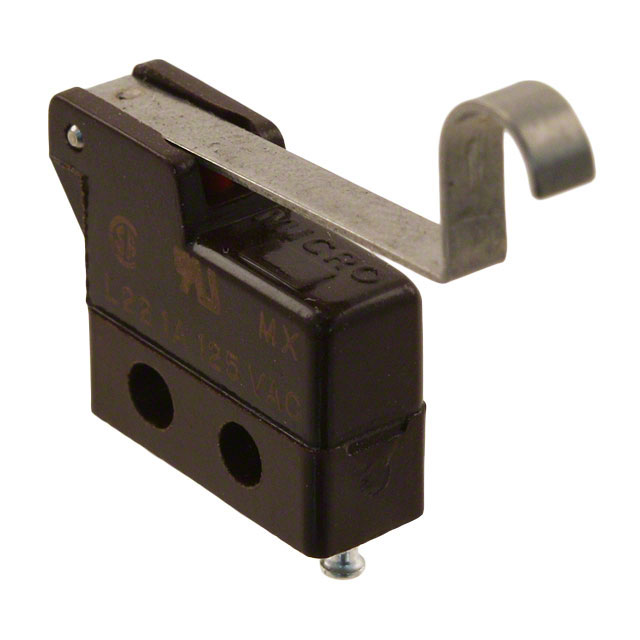

MICROSWITCH, SUBMINIATURE, SIMULATED ROLLER LEVER, SPDT, SOLDER, 1 A, 30 VDC
| Part | Current Rating (Amps) | Termination Style | Mounting Type | Release Force | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Operating Position | Operating Position | Pretravel | Pretravel | Actuator Type | Mechanical Life | Operating Force | Switch Function | Circuit | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 1 A | Solder Turret | Chassis Mount | 5.099 gf | 0.022 " | 0.55 mm | -55 C | 125 °C | 30 V | 0.585 in | 14.86 mm | 0.106 in | 2.7 mm | Lever Simulated Roller | 10000000 Cycles | 30 gf | On-Mom | SPDT | 125 V |
