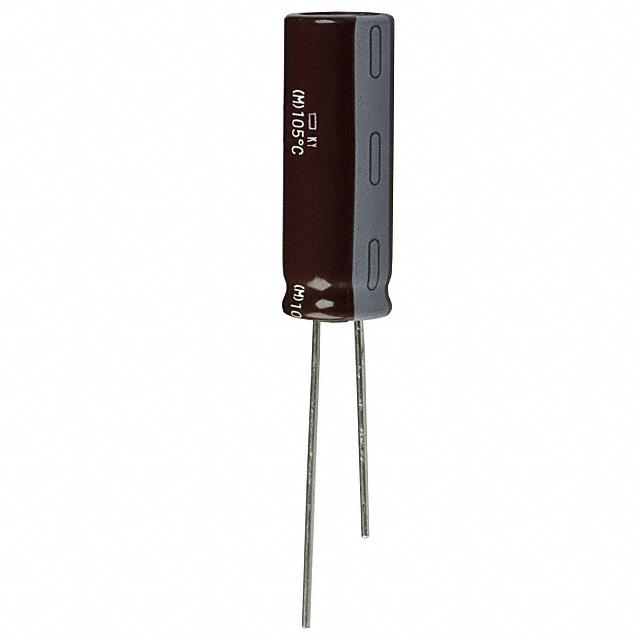

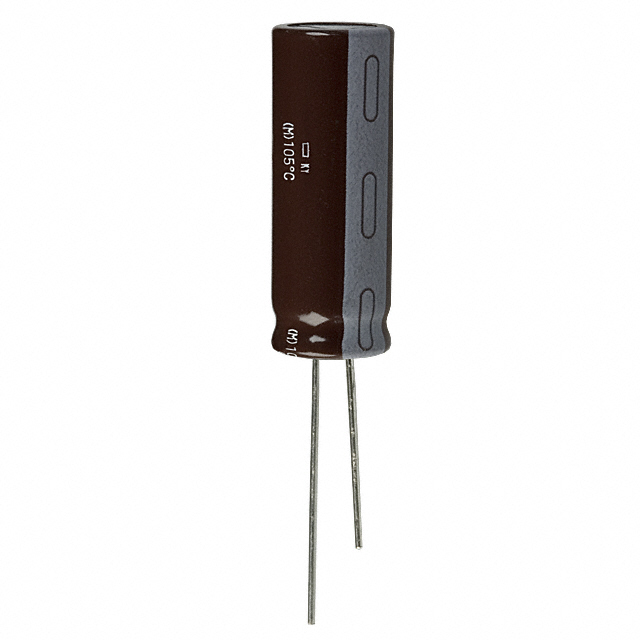

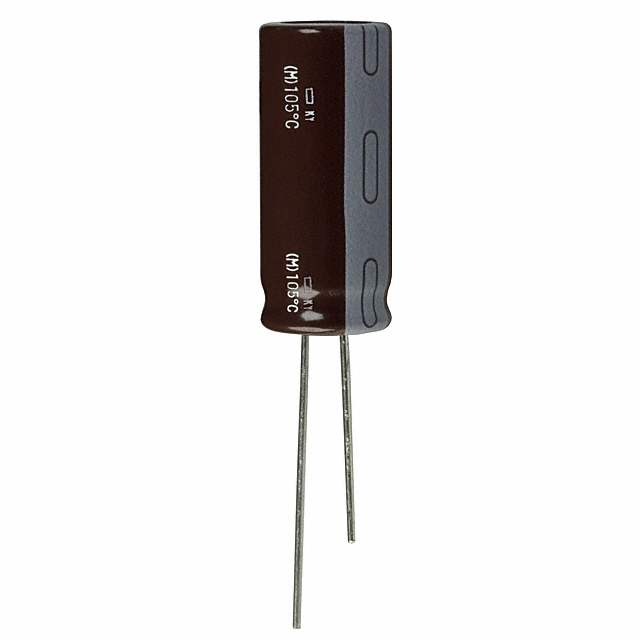

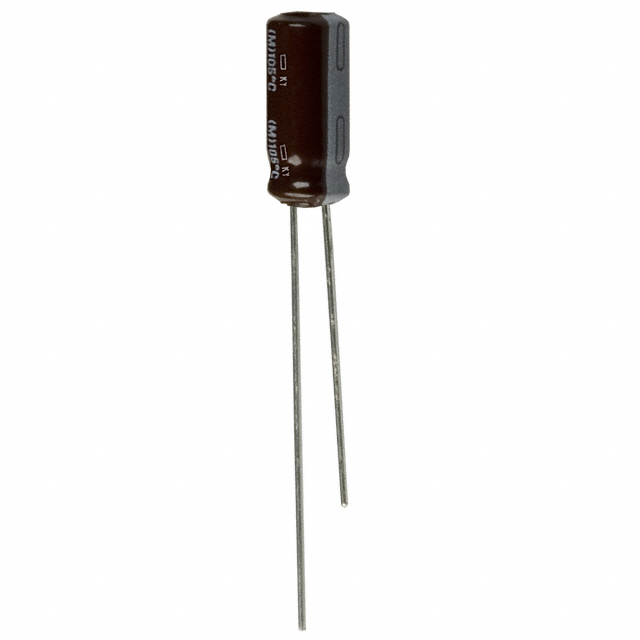

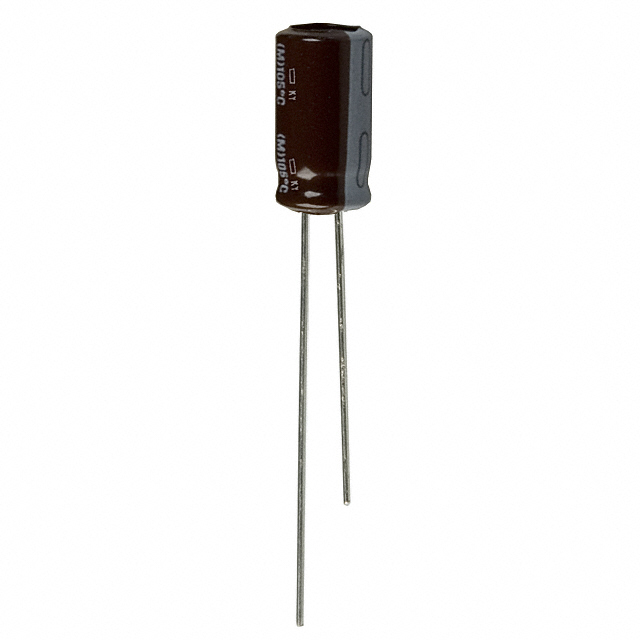

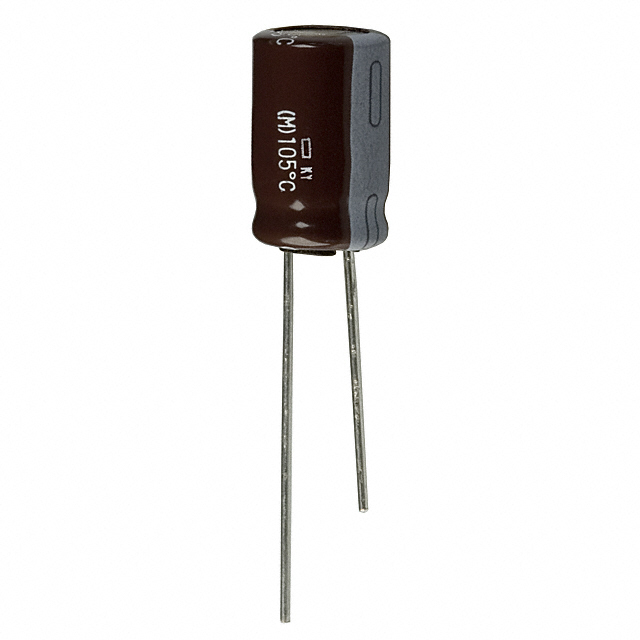

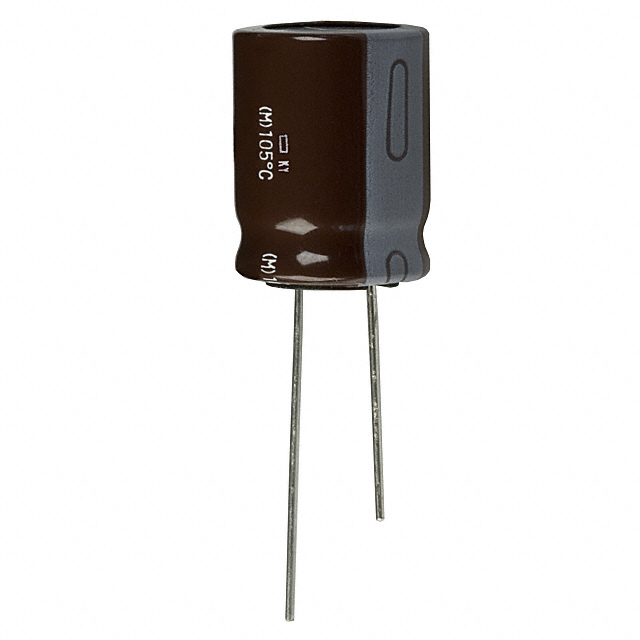

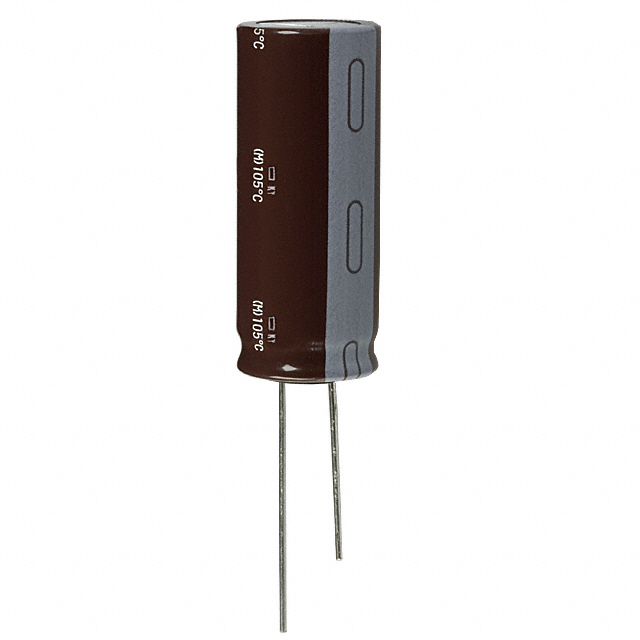

EKY-500E Series

Manufacturer: Chemi-Con

Catalog

CAPACITOR,150UF,50VDC,20-% TOL,20+% TOL ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Ripple Current @ Low Frequency	Impedance	Mounting Type	Tolerance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Applications	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-500ELL151MJC5S	14 mm	0.551 in	150 µF	304 mA	120 mOhms	Through Hole	20 %	Polar	0.394 in	10 mm	Can Radial	0.197 "	5 mm	7000 Hrs	General Purpose	50 VDC	-40 C	105 ░C
Chemi-Con EKY-500ETS821ML20S	21.5 mm	0.846 "	820 µF	1.326 A	34 mOhms	Through Hole	20 %	Polar	0.63 in	16 mm	Can Radial	0.295 in	7.5 mm	10000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	2.21 A
Chemi-Con EKY-500ELL821ML20S	21.5 mm	0.846 "	820 µF	1.326 A	34 mOhms	Through Hole	20 %	Polar	0.63 in	16 mm	Can Radial	0.295 in	7.5 mm	10000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	2.21 A
Chemi-Con EKY-500ELL561MM15S			560 µF	965 mA	54 mOhms	Through Hole	20 %	Polar	0.709 in	18 mm	Can Radial	0.295 in	7.5 mm	10000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	1.93 A	0.65 in	16.5 mm
Chemi-Con EKY-500ETC4R7ME11S	0.492 in		4.7 µF	35.2 mA	1.9 Ohms	Through Hole	20 %	Polar	0.197 in	5 mm	Can Radial	0.079 in	2 mm	5000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	88 mA			12.5 mm
Chemi-Con EKY-500ETD2R2ME11D	0.492 in		2.2 µF	17.2 mA	2.5 Ohms	Through Hole	20 %	Polar	0.197 in	5 mm	Can Radial	0.079 in	2 mm	5000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	43 mA			12.5 mm
Chemi-Con EKY-500ELL182ML40S		1.634 in	1800 µF	2.226 A	16 mOhms	Through Hole	20 %	Polar	0.63 in	16 mm	Can Radial	0.295 in	7.5 mm	10000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	3.71 A				41.5 mm
Chemi-Con EKY-500ELL221MJ16S			220 µF	525 mA	84 mOhms	Through Hole	20 %	Polar	0.394 in	10 mm	Can Radial	0.197 "	5 mm	7000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	1.05 A		0.689 in			17.5 mm
Chemi-Con EKY-500ELL4R7ME11D	0.492 in		4.7 µF	35.2 mA	1.9 Ohms	Through Hole	20 %	Polar	0.197 in	5 mm	Can Radial	0.079 in	2 mm	5000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	88 mA			12.5 mm
Chemi-Con EKY-500ELL471MJ30S	31.5 mm	1.24 in	470 µF	845 mA	43 mOhms	Through Hole	20 %	Polar	0.394 in	10 mm	Can Radial	0.197 "	5 mm	7000 Hrs	General Purpose	50 VDC	-40 C	105 ░C	1.69 A
