APB4E01 Series

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SWITCH PUSH SPST-NO 0.2A 24V

Part	Ingress Protection	Electrical Life	Mechanical Life	Termination Style	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Voltage Rating - DC	Illumination Type, Color	Actuator Marking	Panel Cutout Dimensions [diameter]	Actuator Type	Mounting Type	Voltage Rating - AC	Type	Features
Littelfuse/Commercial Vehicle Products APB4E01TZBE004	IP67 - Dust Tight Waterproof	500000 Cycles	1000000 Cycles	Solder Lug	3.5 VDC	85 °C	-40 °C	SPST-NO	125 mA 200 mA	Off-Mom	Black	24 V	LED White	Park Brake Release Symbol	13.8 mm	Button Round	Panel Mount Front	125 V	Illuminated Standard
Littelfuse/Commercial Vehicle Products APB4E01TZBE003	IP67 - Dust Tight Waterproof	500000 Cycles	1000000 Cycles	Solder Lug	3.5 VDC	85 °C	-40 °C	SPST-NO	125 mA 200 mA	Off-Mom	Black	24 V	LED White		13.8 mm	Button Round	Panel Mount Front	125 V	Illuminated Standard	Epoxy Sealed Terminals

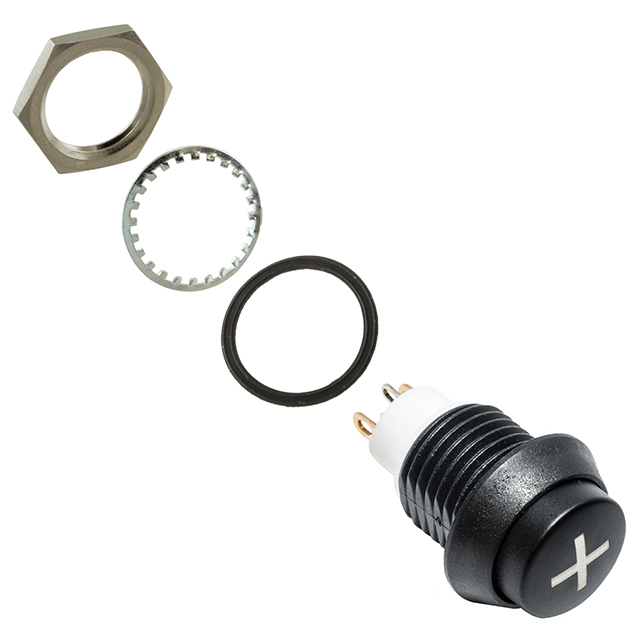

Littelfuse/Commercial Vehicle Products APB4E01TZBE001	IP67 - Dust Tight Waterproof	500000 Cycles	1000000 Cycles	Solder Lug	3.5 VDC	85 °C	-40 °C	SPST-NO	125 mA 200 mA	Off-Mom	Black	24 V	LED White	+	13.8 mm	Button Round	Panel Mount Front	125 V	Illuminated Standard
Littelfuse/Commercial Vehicle Products APB4E01TZBE007	IP67 - Dust Tight Waterproof	500000 Cycles	1000000 Cycles	Solder Lug	3.5 VDC	85 °C	-40 °C	SPST-NO	125 mA 200 mA	Off-Mom	Black	24 V	LED White	Slow Symbol	13.8 mm	Button Round	Panel Mount Front	125 V	Illuminated Standard

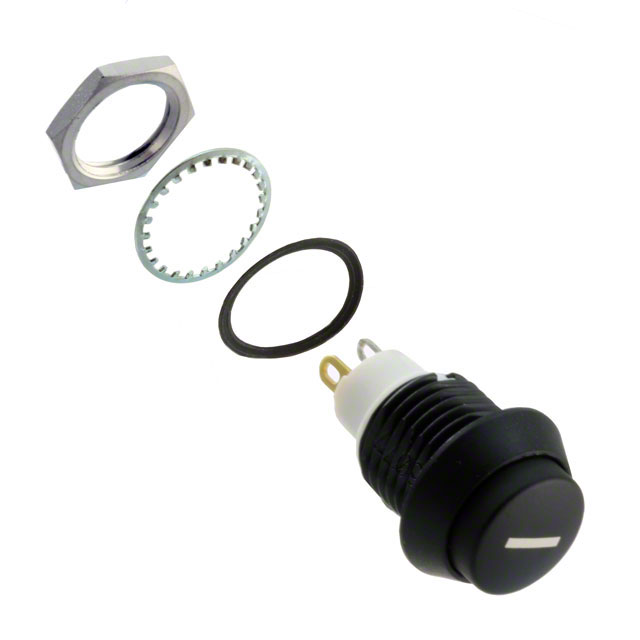

Littelfuse/Commercial Vehicle Products APB4E01TZBE010	IP67 - Dust Tight Waterproof	500000 Cycles	1000000 Cycles	Solder Lug	3.5 VDC	85 °C	-40 °C	SPST-NO	125 mA 200 mA	Off-Mom	Black	24 V	LED White		13.8 mm	Button Round	Panel Mount Front	125 V	Illuminated Standard
